DIN5685c Long Link Chain with Galvanized
Shandong Licheng Link Chain Co., Ltd.- Usage：Protection Chains
- Material：Iron
- Surface Treatment：Electroplating
- Feature：Heat Resistant
- Chain Size：2-13mm
- Structure：Welded Chain
Base Info
- Color：Solid Color
- Size：2-13mm Cuban Link Chain
- Surface：Electronic Galvanized(Polished, Self Color)
- Funcation：Protection
- Delivery Time：15-30 Days.
- Place of Origin：Shandong, China
- Package：Gunny Bags on Pallets.
- Transport Package：5,50 Kg One Gunny Bag, Several Bags on One Pallet
- Specification：DIN5685C
- Trademark：LOADSTAR
- Origin：China
- HS Code：73158200
- Production Capacity：600ton,Month
Description

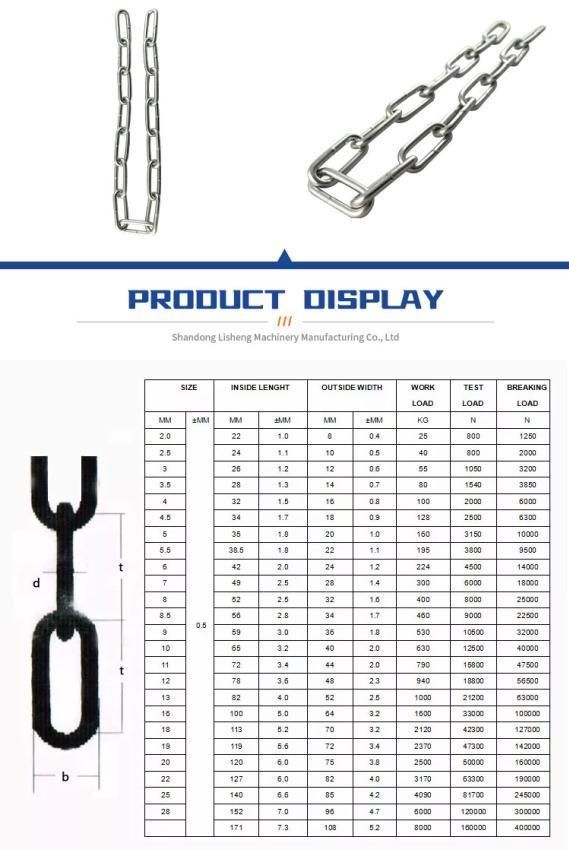

LS DIN 5685C LONG LINK CHAINSIZE INSIDE LENGTH OUTSIDE WIDTH WEIGHT PER100M WORKING LOAD BREAKING LOAD GRADE MM MM MM KG N N 2 22 8 6 500 1250 C 2.5 24 10 10 750 2000 C 3 26 12 15 1120 2800 C 3.5 28 14 20 1500 3850 C 4 32 16 27 2000 5000 C 4.5 34 18 35 2500 6300 C 5 35 20 43 3150 7750 C 5.5 38.5 22 52 3800 9500 C 6 42 24 63 4500 11500 C 6.5 45.5 26 74 5400 13500 C 7 49 28 86 6000 15000 C 8 52 32 110 8000 20000 C 8.5 56 34 125 9000 22500 C 9 59 36 141 10000 25000 C 10 65 40 175 12500 31000 C 11 72 44 211 15000 38000 C 12 78 48 255 18000 45000 C 13 82 52 295 21200 53000 C
