J41 Tapping Chuck

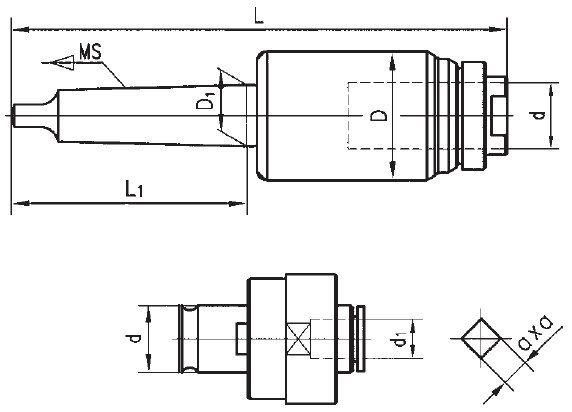

Shank	D (mm)	D1 (mm)	d (mm)	L1 (mm)	L (mm)	Tapping range	Torque (Nm)	Model No.
MT2	46	17.780	19	75	171.5	M3-M12	25	231-6212
MT3	46	23.825	19	94	191	M3-M12	25	231-6312
MT4	46	31.267	19	117.5	216	M3-M12	25	231-6412
R8	46	31.750	19	101.6	193.6	M3-M16	46.3	231-6816
MT2	46	17.780	19	75	171.5	M3-M16	46.3	231-6216
MT3	46	23.825	19	94	191	M3-M16	46.3	231-6316
MT4	46	31.267	19	117.5	216	M3-M16	46.3	231-6416
MT3	66	23.825	30	94	227	M12-M24	150	231-6324
MT4	66	31.267	30	117.5	252	M12-M24	150	231-6424
MT5	66	44.399	30	149.5	284	M12-M24	150	231-6524

Drill & Tap Chuck Set

Shank	Drill Chuck Adaptor	Tapping range	Model No.
MT2	B16	M6-M30	530-1592
MT3	B16	M6-M30	530-1593
MT4	B16	M6-M30	530-1594
MT5	B16	M6-M30	530-1595

Safety Quick-Change Drilling and Tapping Multiple Chuck

Shank	Drill Range (mm)	Tapping range	Model No.
MT2	3-31.5	M6-M30	530-1582
MT3	3-31.5	M6-M30	530-1583
MT4	3-31.5	M6-M30	530-1584
MT5	3-31.5	M6-M30	530-1585
MT5	3-50	M16-M42	530-1586
MT6	3-50	M16-M42	530-1587

J46 Reversible Tapping Chuck

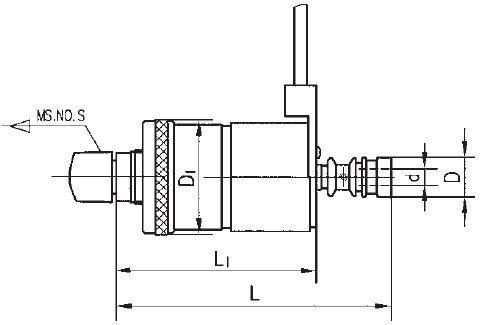

Tapping Range	d (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Model No.
M2-M7	2.5-6.5	23	55	135	95	530-1502
M5-M12	3.5-10	28	75	164	114.5	530-1505
M8-M20	6.3-14	38	90.5	205	135	530-1508

J45 Tapping Chuck


Shank	Tapping Range	D (mm)	D1 (mm)	d (mm)	L1 (mm)	Model No.
ISO30	M3-M12	36	31.75	19	59	530-1603
ISO40	M3-M12	36	44.45	19	59	530-1604
ISO50	M3-M12	36	69.85	19	62	530-1605
BT30	M3-M12	36	31.75	19	59	530-1703

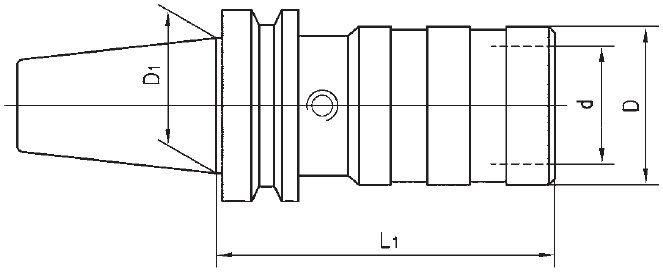

BT40	M3-M12	36	444.45	19	64	530-1704
BT50	M3-M12	36	69.85	19	75	530-1705
ISO30	M7-M20	53	31.75	31	97	530-1613
ISO40	M7-M20	53	44.45	31	97	530-1614
ISO50	M7-M20	53	69.85	31	97	530-1615
BT30	M7-M20	53	31.75	31	97	530-1713
BT40	M7-M20	53	44.45	31	97	530-1714
BT50	M7-M20	53	69.85	31	97	530-1715
ISO30	M14-M36	78	31.75	48	149	530-1623
ISO40	M14-M36	78	44.45	48	149	530-1624
ISO50	M14-M36	78	69.85	48	149	530-1625
BT30	M14-M36	78	31.75	48	149	530-1723
BT40	M14-M36	78	44.45	48	149	530-1724
BT50	M14-M36	78	69.85	48	149	530-1725

J52 Tapping Chuck


Shank	D (mm)	d (mm)	L (mm)	Tapping Range	Model No.
MT3	57	25	192	M3-M12	530-1573
MT4	57	25	218	M3-M16	530-1574
MT5	57	25	250	M3-M16	530-1575
MT4	82	40	270	M8-M24	530-1576
MT5	82	40	302	M8-M24	530-1577
