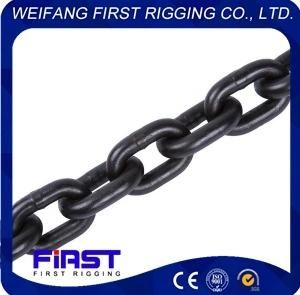

Factory Supplied Nacm90 Standard G43 Chain
Weifang First Rigging Co., Ltd.- Usage：Drag Chain, Nacm90 Chain
- Material：Alloy
- Surface Treatment：According to Your Requirements
- Feature：Heat Resistant
- Chain Size：7mm-13mm
- Structure：Welded Chain
Base Info
- Model NO.：FST-NACM90-03
- Color：According to Your Requirements
- Product Name：Factory Supplied Nacm90 Standard G43 Chain
- Process：Welded+Heat Treatment+Surface Treatment
- Certificate：ISO9001
- Transport Package：Packed in Wooden Case,Iron Drum, Then in Pallets
- Specification：7mm-13mm
- Trademark：First Rigging
- Origin：Shandong, China
- HS Code：73158200
- Production Capacity：150ton,Month
Description
SizeMaterial Diameter Working Load Limit Proof test(min) Min Breaking(force) Inside Length(max) Inside Width(min) MM IN MM IN KG LBS KN LBS KN LBS MM IN MM IN 7 1/4 7 0.276 1180 2600 16.6 3750 33.1 7500 31.5 1.24 9.8 0.38 8 5/16 8 0.315 1770 3900 21.6 4900 43.2 9700 32.8 1.29 11.2 0.44 10 3/8 10 0.394 2450 5400 33.8 7600 67.6 15200 35 1.38 14 0.55 13 1/2 13 0.512 4170 9200 57.1 12900 114.2 25700 45.5 1.79 18.2 0.72
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
