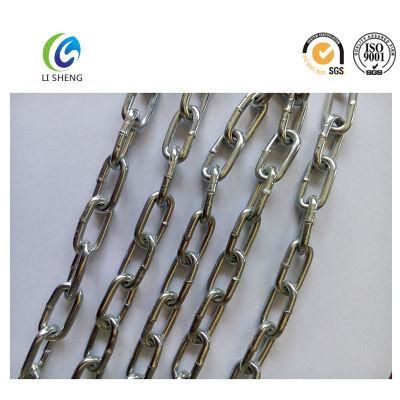

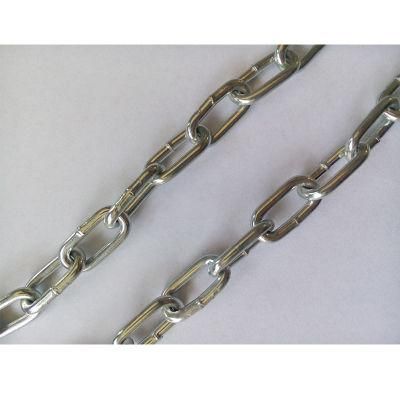

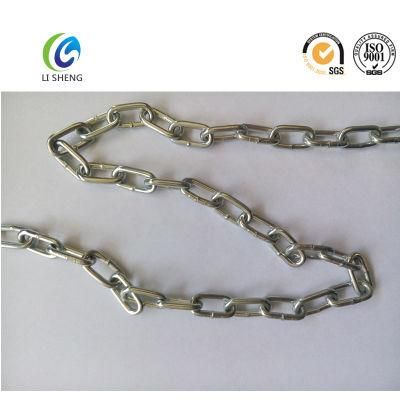

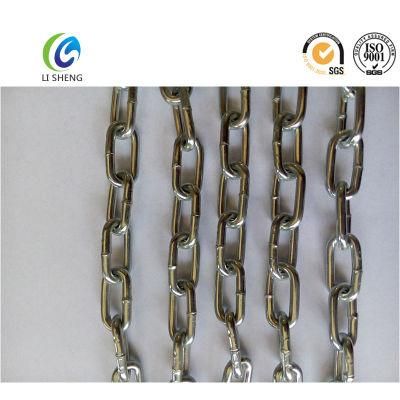

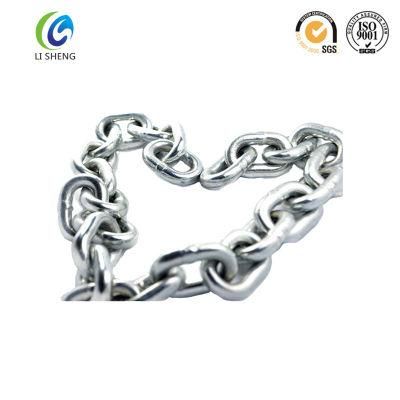

DIN 764 Transmission Link Chain
Shandong Licheng Link Chain Co., Ltd.- Material：Iron
- Surface Treatment：Electroplating
- Feature：Heat Resistant
- Chain Size：4-23mm
- Structure：Welded Chain
- Color：Black
Base Info
- Model NO.：DIN 764(Transmission Chain)
- Product Name：V-Belt Ceraic Coating Pulley
- Property：Tungsten Carbide Coating+Stainless Steel
- Advanages：High Hardness, Wear Resistance, Long Service Life
- MOQ：1PC
- Cooperatioon：Ex-Work,FOB
- Price：USD30-100
- Brand Name：AV
- Structure (for Chain)：V-Belt Pulley
- Transport Package：5,50 Kg One Gunny Bag, Several Bags on One Pallet
- Specification：Din764(Transmission Chain )
- Trademark：LS(Transmission Chain )
- Origin：China
- HS Code：731582
- Production Capacity：600t
Description
LS DIN764 LINK CHAINSIZE INSIDE LENGHT INSIDE WIDTH OUTSIDE WIDTH LENGTH PER 11 LINKS WEIGHT PER100M BREAKING LOAD TEST LOAD MM ±MM MM ± MM MM MM MM ± MM KG KG KN 4 0.20 16 0.30 5 14 176 1.60 31.3 7 400 0.20 0.90 5 0.20 18 0.40 7 18.2 198 1.80 51.4 11.8 680 0.20 1.00 6 0.20 21 0.50 8 21.5 231 2.00 74.0 16.5 850 0.20 1.10 8 0.20 28 0.50 11 29 308 2.20 131.5 32 1680 0.30 1.20 10 0.30 32 0.60 12 36 385 2.70 200 50 2630 0.30 1.50 12 0.30 42 0.60 16 41 462 3.20 298 70 3680 0.30 1.80 13 0.40 45 0.70 18 47 495 3.50 350 80 4200 0.40 2.00 14 0.45 49 0.75 20 48 539 3.80 406 92 4830 0.45 2.00 16 0.50 56 0.90 22 58 616 4.30 520 125 6700 0.50 2.50 18 0.80 63 1.00 24 65 693 4.70 650 160 8400 0.50 2.80 20 1.00 70 1.10 27 72 770 5.40 820 200 10000 0.60 3.20 23 1.20 80 1.30 31 83 880 6.20 1100 250 13000 0.70 3.50 1.30 91 1.50 35 94 1001 7.00 1400 320 16000 0.80 4.00
