20b7 Forged Alloy Steel G80 Oblong Master Link

QINGDAO LIFT-SUNNY MACHINERY IMP. & EXP. CO., LTD.
  • Material:Alloy Steel
  • Shape:Oblong, Pear, Round,etc
  • Usage:Industrial, Lifting, Slings, Fasteners
  • Color:Red, Yellow or Per Customers′need
  • Condition:New
  • Capacities:From 1.6 Ton to 170ton

Base Info

  • Model NO.:Forged Alloy Steel G80 Oblong Master Link
  • Working Load Limit:Permanently Shown on Every Link
  • Ce Marking:Permanently Shown on Every Link
  • Minimum Breaking Strength:4 Times The Working Load Limit
  • Special Marking:Ok with Large Quantity
  • Available Type:A342, A343,A345,A346,A347,DIN5688
  • Application:Lifting Chain Slings, Webbing Slings
  • Transport Package:Cartons
  • Specification:20B7
  • Trademark:LS
  • Origin:China
  • HS Code:732690
  • Production Capacity:6000ton,Month

Description

Basic Info.

Model NO. Forged Alloy Steel G80 Oblong Master Link Working Load Limit Permanently Shown on Every Link Ce Marking Permanently Shown on Every Link Minimum Breaking Strength 4 Times The Working Load Limit Special Marking Ok with Large Quantity Available Type A342, A343,A345,A346,A347,DIN5688 Application Lifting Chain Slings, Webbing Slings Transport Package Cartons Specification 20B7 Trademark LS Origin China HS Code 732690 Production Capacity 6000ton/Month

Product Description

Product Description
 Forged Alloy Steel G80 Oblong Master Link
All Links are Quenched and Tempered with high quality.
Widely used in industrial lifting purpose.

Available in powder coated finish usually red, yellow, orange or per customers'need
Available Type:
A342 Forged Master Link (Weldless)
A345 Master Link Assembly ( Forged Main Link )
A344 Master Link ( Welded ) with Engineered Flat
A347 Master Link Assembly ( Welded )
A343 Master Link ( Welded )(No Flat Din5688 Master Link Link Assembly)
A346 Master Link Assembly ( Welded )(No Flat Din5688 Master Link Link Assembly)
Other type of Links such as Pear Shaped Links, Round Links, etc are all available.

Technical Data and Dimensions

* Forged Alloy Steel - Quenched and Tempered
* Chain slings require that the Minimum Ultimate Load be 4 times the Working Load Limit
SizeABDWHWLL(T)KG/PC
13B59551137302.60.3
13B611060137302.40.4
16B612070169403.80.6
16B7190100169402.80.9
20B6150802011406.41.1
20B7170902011505.81.3
22B6170902212507.61.56
22B72101102212506.41.9
25B6190100251350102.3
28B621011028155012.73.2
28B727014028 5010.53.81
32B627014032175515.25.3
38B627014038205525.17.5
38B74202203820551711
45B63201704524603412.5
45B747025045246024.517.5
50B638020050  4018
60B643022060  5830
70B650025070  8444

* For other type Links not mentioned above, Please contact our sales  for detailed Dimensions and Technical data.

BUSINESS FAQ:

1) What is the MIN order quantity ?
USD 1580 in total value, usually 1 ton.

2)What is the delivery time?
15 -20 days since received the deposit.

3)What is the Payment term?
A. 30% TT deposit, the balance against copy B/L.
B. Irrevocable L/C at sight.
C. Other payment can be negotiated.


4)Could I get free samples before first cooperation?
Yes, of course! But the buyer need to afford express fee, which is returnable once we build cooperation.

5)What's the packing method?
Packing methods for most of the products are in Cartons with Steel Pallet or Polywood Pallet. Special packages are
available upon customers'need. You can contact us for special or more detailed packages.
20b7 Forged Alloy Steel G80 Oblong Master Link



Why choose Lift-Sunny (lift-sunny.en.made-in-china.com)

1). "ONE-STOP" Rigging and Marine supplier:  a great variety of rigging and marine products including 1,000 kinds
of products, 3,000 kinds of specifications, which are widely used in Construction,Transportation, Forestry, Oil&Gas,
Agriculture, Utilities, Aerospace, Marine, Manufacturing, Mining, Fishing and Government.
20b7 Forged Alloy Steel G80 Oblong Master Link

2). Old history: since 1986, more than 30 years focus on rigging, marine and rubber products.
The founding principles of the company have never changed-business integrity,quality is everything.

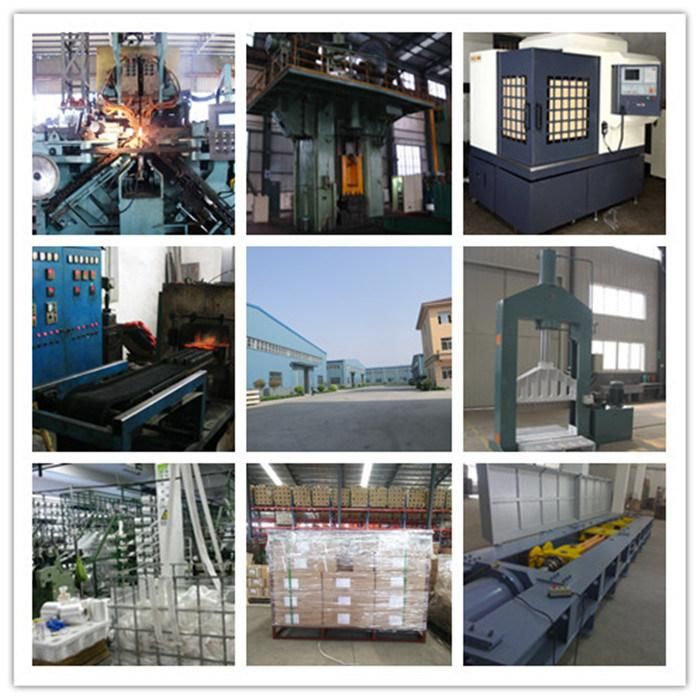

3). Strong development capabilities: processing with Given materials and samples at own
module workshop, save cost, finish customers special and big order rapidly.
20b7 Forged Alloy Steel G80 Oblong Master Link

4). 4 round Superior Quality Control with 10 years records and zero complaint:
4 round quality inspection including raw materials, production, finished products, final package, have a thorough
quality control system, professional staff, every step is under strict inspection, to insure
that every product is perfect.For the individual and mass production part, the records which include the
sub-contractor records will be retained at least 10 years since the record has been made,
(e.g. inspection/test record, control plan, etc)
In the past years,the complaint rate of product quality from more than 50 countries customers is zero.

5). Certificate of Quality: ISO9001, CE, GS, CCS, ABS, BV, KR, REACH, etc. Photos as below.
20b7 Forged Alloy Steel G80 Oblong Master Link

6). Reasonable and Competitive price compared with others with same quality.

7). Fast Delivery time:
within 20 days for most products.

8). Comfortable and topping after-sales service with 99.8% satisfaction rate for more than
50 countries and regions:
We will send you "Customer Satisfaction Inventory" after you receive our first order.
If you are not satisfied with our quality,price or service, please list your comments or suggestions, the next day, our
senior manager will personally call you or email you, apologize to you, to solve your problem.Because day after day,
year after year of self-correction, our current customer satisfaction rate has reached 99.8%. we are very proud of this.
Of course, we still need to continue to work hard.Our main marketing as below picture.
20b7 Forged Alloy Steel G80 Oblong Master Link

9). Great Supports for marketing. With us, your money and business in safe.If you want to be
No.1 you should contact with us right now!
