• Certificates：ISO9001
• Surface Treatment：Galvanized
• Transport Package：Wooden Cases , Export Carton Then in Pallet
• Specification：3,4
• Trademark：First Rigging
• Origin：Shandong China(Mainland)
• HS Code：73269090
• Production Capacity：1*20FT Container Per Month

Basic Info.

Certificates ISO9001 Surface Treatment Galvanized Transport Package Wooden Cases / Export Carton Then in Pallet Specification 3/4 Trademark First Rigging Origin Shandong China(Mainland) HS Code 73269090 Production Capacity 1*20FT Container Per Month

Product Description

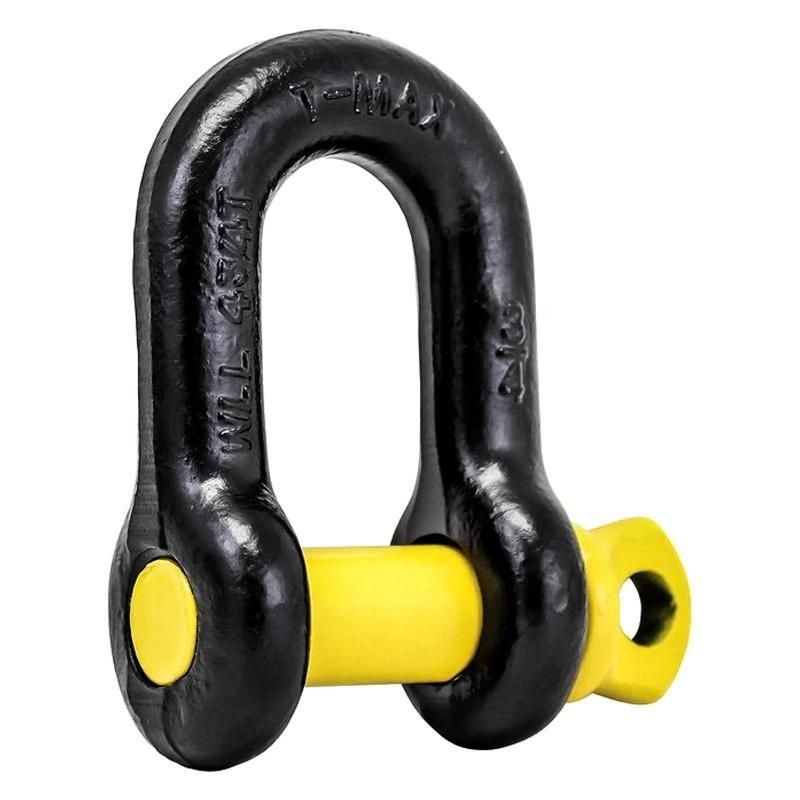

marine hardware d shackle:
Material: Alloy steel

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

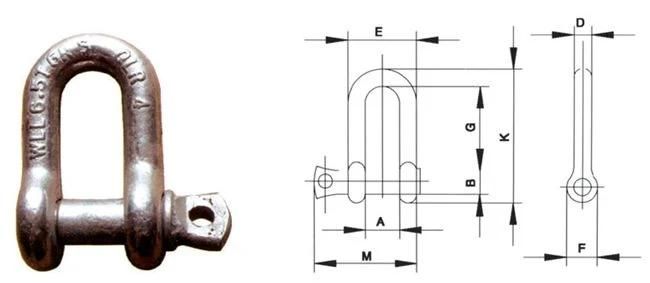

Technical Specification:

Size(in.)	WLL(t)	A(mm)	B(mm)	D(mm)	E(mm)	F (mm)	G (mm)	K (mm)	M (mm)	Weight(Kg/pc)
1/4	0.5	12	7.9	6.4	23.9	15.5	22.4	40.4	35.1	0.05
5/16	0.75	13.5	9.7	29.5	19.1	26.2	48.5	48.5	42.2	0.08
3/8	1	16.8	11.2	9.7	35.8	23.1	31.8	58.4	51.6	0.13
7/16	1.5	19.1	12.7	11.2	41.4	26.9	36.6	67.6	60.5	0.2
1/2	2	20.6	16	12.7	45	30.2	41.4	77	68.3	0.27
5/8	3.25	27	19	16	58.7	38.1	50.8	95.3	84.8	0.57
3/4	4.75	31.8	22.4	19.1	69.9	46	60.5	115.1	100.8	1.19
7/8	6.5	36.6	25.4	22.4	81	53.1	71.4	135.4	114.3	1.43
1	8.5	43	28.7	25.4	93.7	60.5	81	150.9	128.8	2.15
1  1/8	9.5	46	31.8	28.7	103.1	68.3	90.9	172.2	142	3.06
1  1/4	12	51.6	35.1	31.8	115.1	76.2	100.1	190.5	156.5	4.11
1  3/8	13.5	57.2	38.1	35.1	127	94.1	111.3	210.3	173.7	5.28
1  1/2	17	60.5	41.4	38.1	136.6	91.9	122.2	230.1	186.7	7.23
1  3/4	25	73.2	50.8	44.5	162.1	106.4	146.1	278.6	230.6	12.13
2	35	82.6	57.2	50.8	184	122.2	171.5	311.9	262.6	19.19
2  1/2	55	105	69.9	66.5	238.3	144.5	203.2	376.9	330.2	32.55

Packaging & Delivery:
Packing details: Packed in carton and then in pallet, or according to your requirements

Delivery Detail: Usually 30 days after receiving your advance payment.

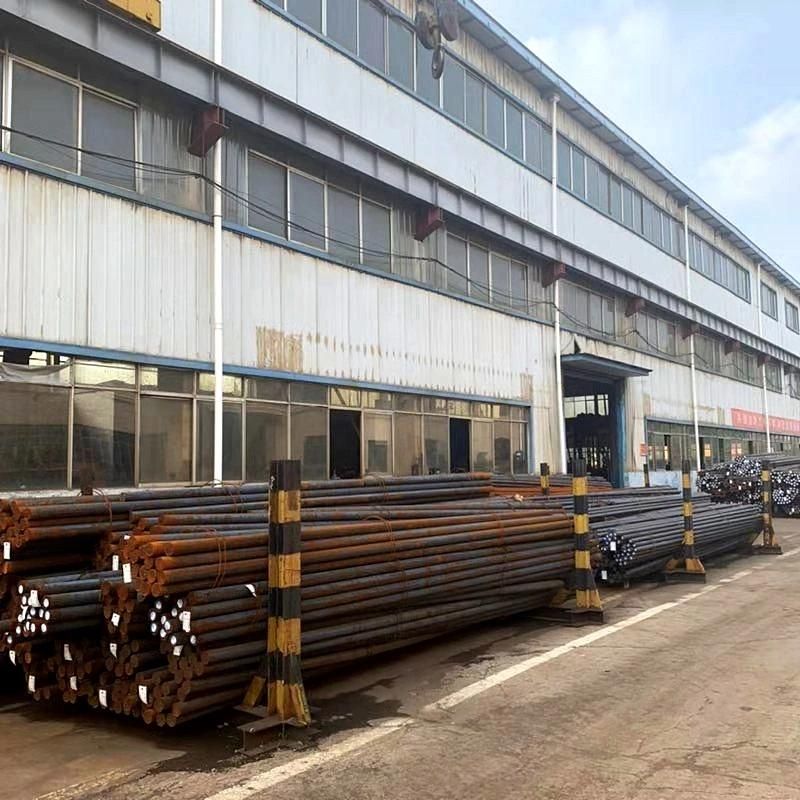

Factory show :
