Sine Precision Vise
Shenzhen Pride Instrument Inc.- Material：Steel
- Usage：For Inspection
- Type：Gage
- Test Methods：Through Check Method
- Precision Gauge：Precision Gauge
- Certification：CE, RoHS, JIS, GB, UL, ISO, SGS, DIN, ANS
Base Info
- Model NO.：PKJ50
- Customized：Customized
- Transport Package：Well Package
- Specification：30*20*10
- Trademark：pride
- Origin：China
- Production Capacity：1000piece,Month
Description
Basic Info.
Model NO. PKJ50 Customized Customized Transport Package Well Package Specification 30*20*10 Trademark pride Origin China Production Capacity 1000piece/MonthProduct Description

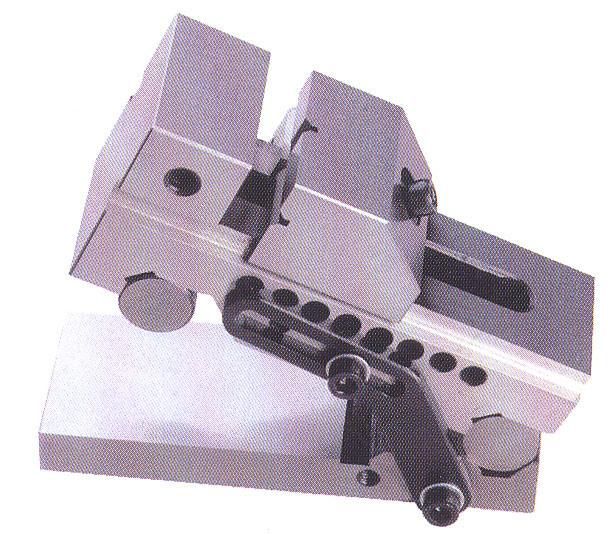

Sine Precision ViseDesigned for setting and checking of precision angles with gauge blocks, alloy steel, hardened, ground and lapped to accuracy 5μm,, roughness 0.8 μm,Packed in wooden box
| Model No | A | B | H | C | G | I | E | S1 | S2 | Kg |
| PKJ50 | 135 | 50 | 80 | 25 | 65 | 74 | 100±0.005 | 5 | 5 | 2.9 |
| PKJ63 | 170 | 63 | 94 | 32 | 85 | 88 | 100±0.005 | 6 | 5 | 4.8 |
| PKJ73 | 185 | 73 | 101 | 35 | 100 | 98 | 100±0.005 | 6 | 5 | 8.3 |
| PKJ80 | 195 | 80 | 108 | 40 | 100 | 109 | 100±0.005 | 6 | 6 | 9.1 |
| PKJ88 | 230 | 88 | 108 | 40 | 125 | 117 | 100±0.0075 | 8 | 6 | 10.8 |
| PKJ100 | 240 | 100 | 114 | 45 | 125 | 129 | 100±0.0075 | 8 | 6 | 13.5 |
| PKJ125 | 280 | 125 | 124 | 50 | 160 | 154 | 200±0.01 | 10 | 6 | 21.3 |
| PKJ150 | 300 | 150 | 122 | 50 | 170 | 180 | 200±0.01 | 10 | 6 | 24 |
