Useful Galvanized Steel U Shackle

Wenzhou Ziyong Electrical Co., Ltd.
  • Material:Stainless Steel
  • Shape:U Shape
  • Usage:Industrial
  • Used with:Ball Eye, Ball Hook,
  • Transport Package:Standard Package
  • Specification:GB

Base Info

  • Model NO.:U shackle
  • Trademark:ziyong
  • Origin:china

Description

Basic Info.

Model NO. U shackle Trademark ziyong Origin china

Product Description


The U shackle Detail:
70kn U clevis can be used at 33kv and 11kv termination points to attach the compressed
termination to the closest insulator in the chain. They can be used where 33kv lines are in
conflict with buildings and duplicate chain of overhead line fittings is used with H structure.
In this case, a socket clevis maybe required to attach the bottom insulator to the bottom dual
power line hardware  and the ball end hook or eye link to the top dual yoke plate.

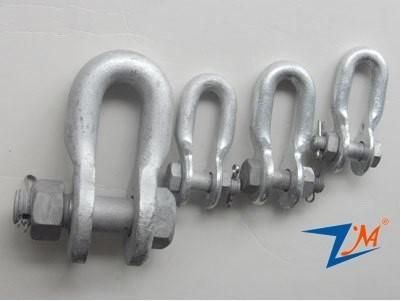

Useful Galvanized Steel U Shackle
The closed pin is stainless steelwork, the other parts are hot-dip galvanized steel.
typeFailure load KNweight Kg
U-7 70 0.5
U-7b 70 0.6
U-10 100 0.6
U-10b 100 0.7
U- 12 120 1.0
U- 16 160 1.5
U- 16t 160 1.5
U- 21 210 2.3
U- 21b 210 2.4
U- 25 250 2.8
