Color Painted Welded a-343 Master Link for Lifting Device
Weifang First Rigging Co., Ltd.- Material：Alloy Steel
- Shape：U Shape
- Usage：Industrial
- Color：Colored
- Condition：New
- Trademark：First rigging
Base Info
- Model NO.：A-343
- Origin：China
Description
Basic Info.
Model NO. A-343 Origin ChinaProduct Description

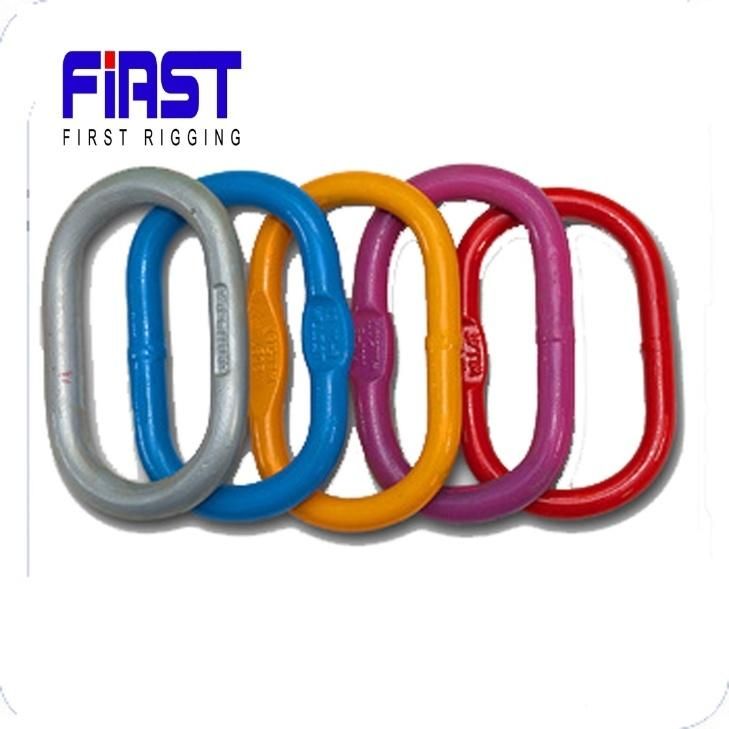

Color Painted Welded A-343 Master link for Lifting Device
A-343 Welded Master Link Assembly:
Material: Carbon steel
Size:76-8"~72"
Surface treatment: Galvanized, Self color, Plastic spraying
Color: Red, yellow, blue, as your request
Application: Ship, iron and steel industry, petroleum chemical industry, coal mine
Size | A | B | D | WLL(T) | Weight(kg) |
| 7/16 | 100 | 60 | 12 | 1.2 | 0.27 |
| 1/2 | 100 | 60 | 14 | 2.2 | 0.38 |
| 11/16 | 160 | 90 | 18 | 3.2 | 1.0 |
| 3/4 | 160 | 90 | 20 | 5.2 | 1.2 |
| 7/8 | 180 | 100 | 22 | 6.5 | 1.62 |
| 1 | 180 | 100 | 25 | 9.2 | 2.13 |
| 1-1/8 | 270 | 140 | 28 | 9.4 | 3.8 |
| 1-1/4 | 270 | 140 | 32 | 12.8 | 5.1 |
