HDPE Square Aquaculture Cage Parts Fitting Walkway 250mm Fish Cage Bracket
QINGDAO EVERGROWING IMPORT&EXPORT CO., LTD.- Usage：Fish Cage Bracket
- Material：HDPE
- Structure：Triangle Bracket
- Manufacturing Arts：Injection Mould
- Adjusted：Unadjustable
- Folded：Unfolded
Base Info
- Model NO.：EG04
- Customized：Customized
- Color：Pure
- Size：250mm
- Transport Package：in Bulk
- Specification：250mm
- Trademark：Evergrowing
- Origin：China
- HS Code：3917400000
- Production Capacity：5000 Sets Per Month
Description
Basic Info.
Model NO. EG04 Customized Customized Color Pure Size 250mm Transport Package in Bulk Specification 250mm Trademark Evergrowing Origin China HS Code 3917400000 Production Capacity 5000 Sets Per MonthProduct Description

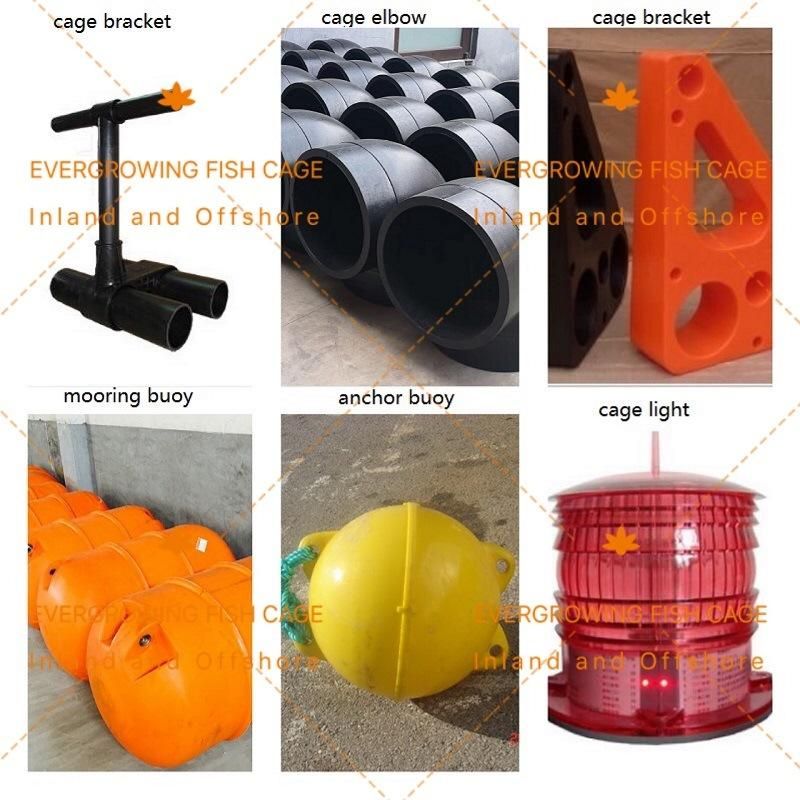

1. FISH CAGE BRACKETSInjection moulded brackets attached with stoppers and dowels around the full circumference, evenly distributed pressure throughout the structure, ensure stability of fish cage structures.
| Structure | Square 4mx4m to 8mx8m | Diameter 8m--Diameter 10m | Diameter 12m--Diameter 25m | Diameter 26m--Diameter 40m |
| Floating pipe | HDPEФ200mm | HDPEФ200mm | HDPEФ250mm | HDPEФ350mm |
| Handrail pipe | HDPEФ90mm | HDPEФ90mm | HDPEФ110mm | HDPEФ110mm |
| Stanchion pipe | HDPEФ90mm | HDPEФ90mm | HDPEФ125mm | HDPEФ125mm |
| Cage bracket | HDPE 200 | HDPE 200 | HDPE 250 | HDPE 315 |
| Stoppers Pins | HDPE | HDPE | HDPE | HDPE |

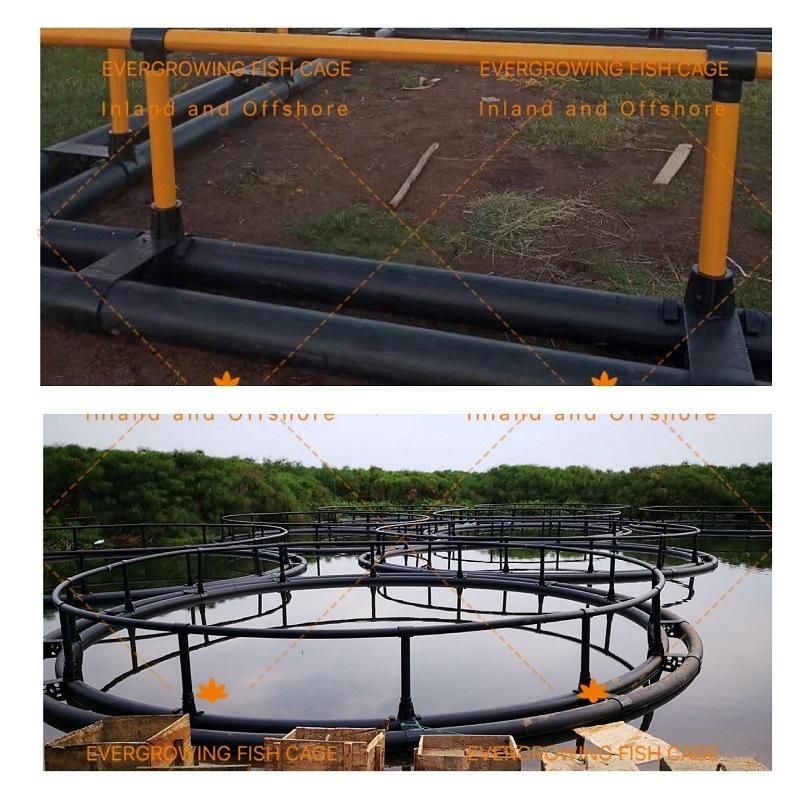

For Both Square and Circular Cages
2. FISH CAGE MOORING
High reliability of the fish cage mooring system is a prerequisite. The reliability of the fish cage mooring system, i.e. the capability to maintain fish cages avoiding the risk of moving or breaking, minimize the impact of storm waves in harsh environment.
With experienced engineers, we can design the mooring grid catered to your location, and ensure a accurate and stable mooring grid.
