Pole Line Hardware Fitting Galvanized Steel Anchor Chain Shackle
Victory Electric Power Equipment Co., Ltd.- Name:Anchor Shackle
- Material:Forged Carbon Steel
- Finish:Hot DIP Galvanized
- Usage:Link Fittings
- Transport Package:Standard Export Package or on Your Request
- Specification:ANSI
Base Info
- Model NO.:E1116
- Trademark:VIC
- Origin:Lishui, Zhejiang, China
- HS Code:8535900090
- Production Capacity:800000PCS,Month
Description
Basic Info.
Model NO. E1116 Trademark VIC Origin Lishui, Zhejiang, China HS Code 8535900090 Production Capacity 800000PCS/MonthProduct Description

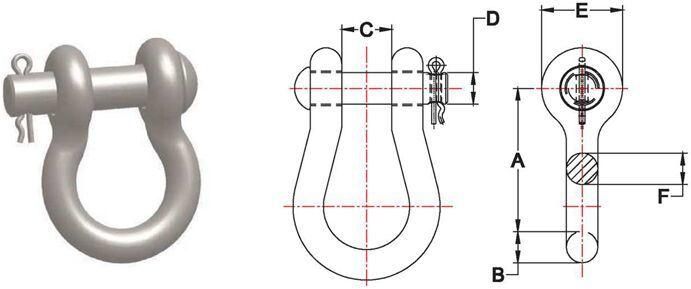

CATALOG NUMBER | DIM. "A" | DIM. "B" | DIM. "C" | DIM. "D" | DIM. "E" | DIM. "I" | ULTIMATE STRENGTH | WEIGHT PER 100 |
UAS25 | 2 3/16" | 5/8H | 7/8" | 5/8" | 1 3/8" | 11/16" | 30000 LBS. | 75 LBS. |
UAS25- BNC | 2 3/16H | 5/8H | 7/8" | 5/8" | 1 3/8" | 11/16" | 30000 LBS. | 85 LBS. |
UAS25-L | 2 25/32" | 5/8H | 7/8" | 5/8" | 1 3/8" | 21/32" | 30000 LBS. | 98 LBS. |
UAS25- L - BNC | 2 25/32" | 5/8" | 7/8" | 5/8" | 1 3/8" | 21/32n | 30000 LBS. | 110 LBS. |
UAS25- W | 3" | 5/8H | 1 3/4" | 5/8" | 1 11/16" | 5/8" | 30000 LBS. | 157 LBS. |
UAS-25-W-BNC | 3" | 5/8H | 1 3/4" | 5/8" | 1 11/16" | 5/8" | 30000 LBS. | 163 LBS. |
UAS35 | 3 1/7" | 37/47" | 1 4/57" | 3/4" | 1 3/4" | 37/47" | 40000 LBS. | 230 LBS. |
UAS35- BNC | 3 1/7M | 37/47H | 1 4/57" | 3/4" | 1 3/4" | 37/47*' | 40000 LBS. | 241 LBS. |
UAS50 | 3 1/2" | 7/8H | 7/8" | 3/4" | 1 7/8" | 3/4" | 50000 LBS. | 223 LBS. |
UAS50- BNC | 3 1/2n | 7/8" | 7/8" | 3/4" | 1 7/8" | 3/4" | 60000 LBS. | 242 LBS. |
UAS50-W | 3 1/2" | 7/8H | 1 1/4" | 7/8" | 1 15/16" | 1" | 50000 LBS. | 222 LBS. |
UAS50-W-BNC | 3 1/2" | 7/8H | 1 1/4" | 7/8" | 1 15/16'' | 1" | 60000 LBS. | 272 LBS. |
-------------------------------------------------------------------------------------------------------------
Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.
