Sine Precision Vise
Shenzhen Pride Instrument Inc.- Material：Steel
- Usage：For Inspection
- Type：Gage
- Test Methods：Through Check Method
- Precision Gauge：Precision Gauge
- Certification：CE, RoHS, JIS, GB, UL, ISO, SGS, DIN, ANS
Base Info
- Model NO.：PGJ50
- Customized：Customized
- Transport Package：Well Package
- Specification：30*20*10
- Trademark：pride
- Origin：China
- Production Capacity：1000piece,Month
Description
Basic Info.
Model NO. PGJ50 Customized Customized Transport Package Well Package Specification 30*20*10 Trademark pride Origin China Production Capacity 1000piece/MonthProduct Description

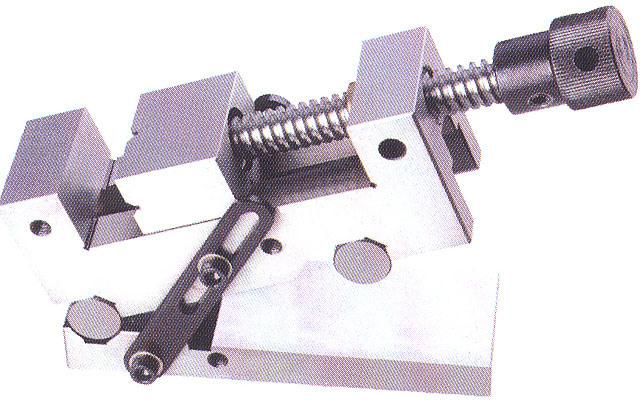

Sine Precision ViseDesigned for setting and checking of precision angles with gauge blocks, alloy steel, hardened, ground and lapped to accuracy 5μm,, roughness 0.8 μm,Packed in wooden box
| Model No | A | B | H | C | G | F | E | I | S | Kg |
| PGJ50 | 150 | 50 | 86 | 25 | 65 | 192 | 100±0.005 | 74 | 5 | 3.8 |
| PGJ63 | 185 | 63 | 92.5 | 32 | 85 | 227 | 100±0.005 | 88 | 5 | 6.2 |
| PGJ73 | 205 | 73 | 107.5 | 35 | 100 | 258 | 100±0.005 | 98 | 6 | 8.9 |
| PGJ80 | 215 | 80 | 110 | 40 | 100 | 262 | 100±0.005 | 109 | 6 | 10.5 |
| PGJ88 | 245 | 88 | 110 | 40 | 125 | 117 | 100±0.0075 | 117 | 6 | 13.1 |
| PGJ100 | 255 | 100 | 117.5 | 45 | 125 | 293 | 100±0.0075 | 129 | 6 | 16.1 |
| PKJ125 | 295 | 125 | 125 | 50 | 160 | 303 | 200±0.01 | 154 | 6 | 24.6 |
| PKJ150 | 315 | 150 | 125 | 50 | 175 | 344 | 200±0.01 | 180 | 6 | 30 |
