• Model NO.：G80
• Color：Solid Color
• Working Load Limit：3.2t
• Inside Min：30mm
• Colour：Self Color
• Grade：80
• Product Name：for Sale 10mm G80 Alloy Chain Self Color for Crane
• Length：200m,250m
• Transport Package：Wooden Case, Steel Drum
• Specification：10MM
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. G80 Color Solid Color Working Load Limit 3.2t Inside Min 30mm Colour Self Color Grade 80 Product Name for Sale 10mm G80 Alloy Chain Self Color for Crane Length 200m/250m Transport Package Wooden Case/ Steel Drum Specification 10MM Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

for Sale 10mm G80 Alloy Chain Self Color for hoistingProduction info as belows:

High strength 22mm G80 Steel Chain Black Chain

Size: 6mm-42mm

Material: Alloy steel,

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, black

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

The chains technical specifications as belows:

Size(mm)	Min inside width	Max outside width	Weight(kg/m)	working load(KN)	test load(KN)	test load(KN)
6*18	7.5	21	0.79	11	27	45.2
7*21	9	24.5	1.07	15	37	61.6
8*24	10	28	1.38	20	48	80.4
9*27	11.5	30	1.9	24.5	61	102
10*30	12.5	35	2.2	32	76	125
12*36	15.5	42.2	3.3	49	117	196
13*39	16.3	46	3.8	50	128	214
14*42	18	49	4.13	63	150	250
16*48	20	56	5.63	80	192	320
18*54	23	63	6.85	100	246	410
20*60	25	70	8.6	125	300	500
22*66	28	77	10.5	153	366	610
24*72	32	82	12.78	180	432	720
26*78	35	91	14.87	213	510	650
30*90	38	105	19.6	283	678	1130
32*96	40	106	22.29	322	772	1289
34*102	46.5	121.5	25.5	363	870	1450
36*108	49.5	128.5	31	407	978	1630
38*114	52	136	32	453	1086	1810
42*126	55.5	144.5	38.6	554	1332	2200

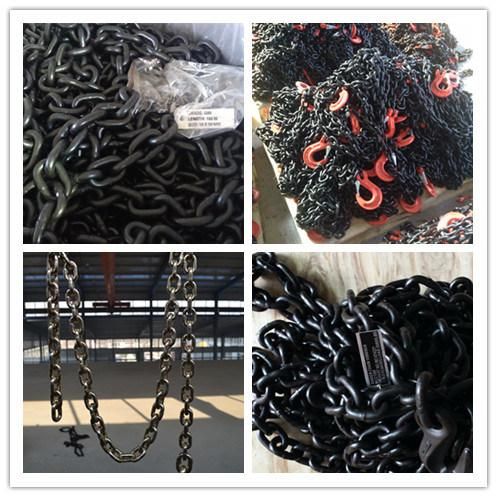

Factory pic as belows:

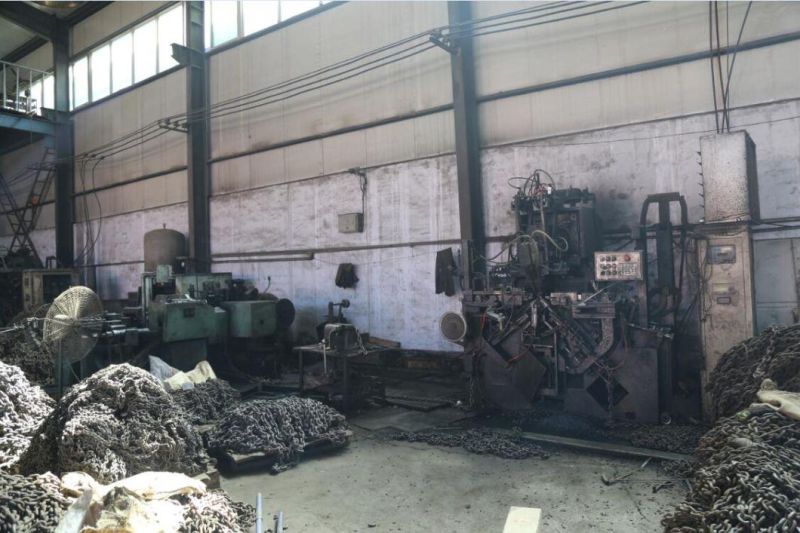

Welding machine:

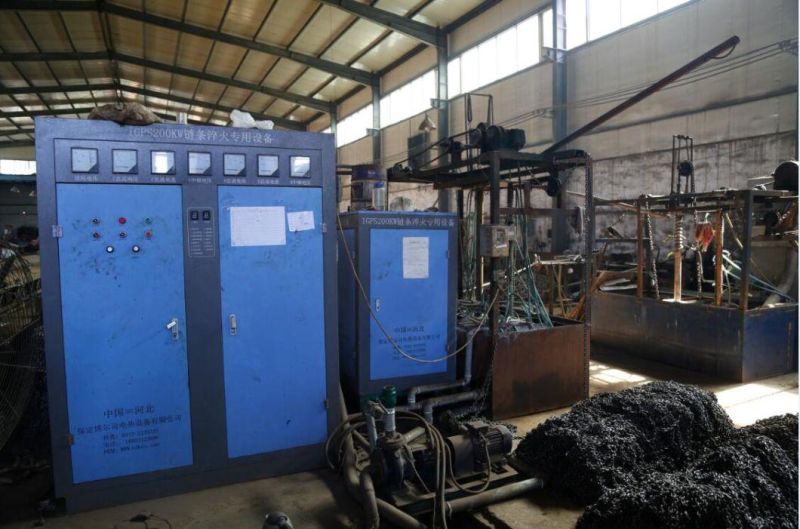

Heat treatment:

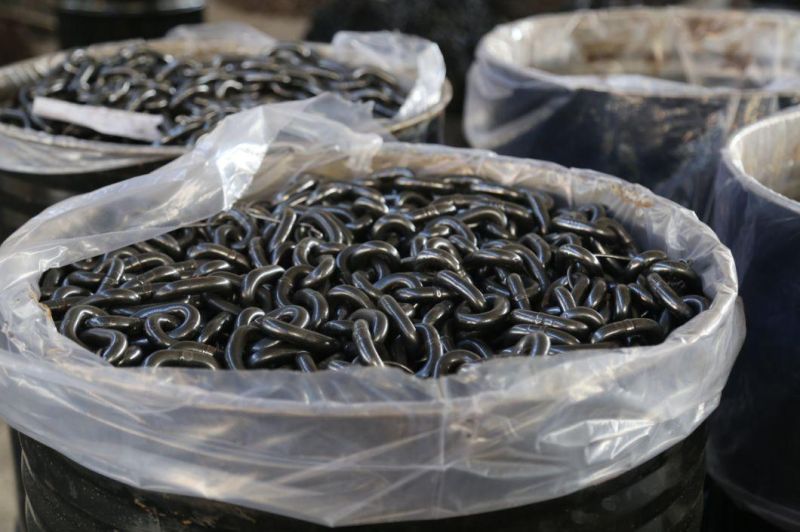

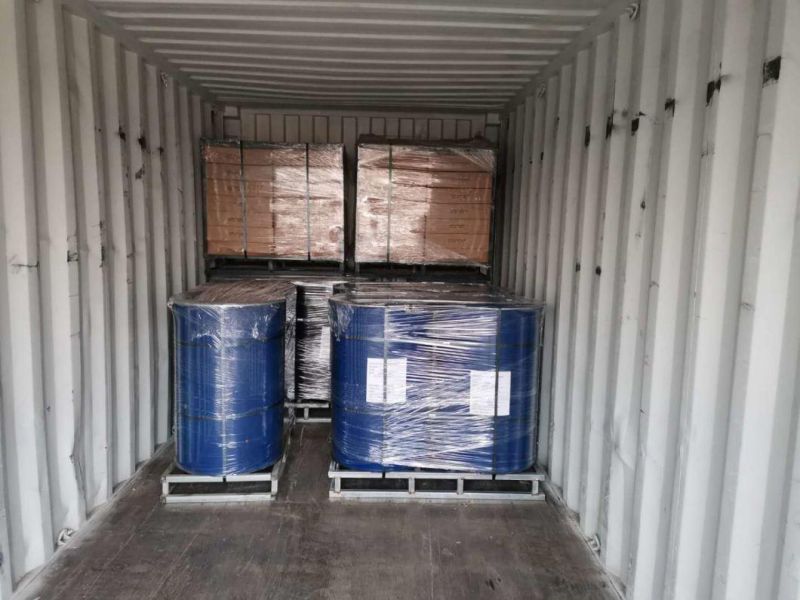

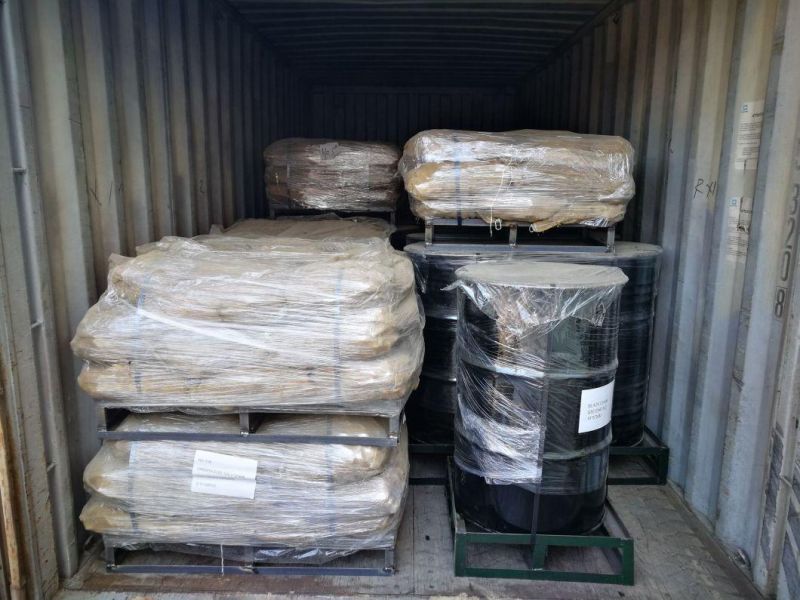

Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing
