• Model NO.：G80
• Color：Multi-Colored
• Working Load Limit：5t
• Inside Min：39mm
• Colour：Black
• Grade：80
• Hook：Good Quality
• Product Name：Promotion 13mm Black Lifting Chain Hoisting Chain
• Transport Package：Wooden Case, Steel Drum
• Specification：150m,pcs
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. G80 Color Multi-Colored Working Load Limit 5t Inside Min 39mm Colour Black Grade 80 Hook Good Quality Product Name Promotion 13mm Black Lifting Chain Hoisting Chain Transport Package Wooden Case/ Steel Drum Specification 150m/pcs Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

Alloy Steel 20mm G80 Lifting Chain heat treatment

G80 load chain specifications:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320
18 x 54	21	63	6.85	10	246	410
19 x 57	23.7	63.5	7.7	11.3	270	450
20 x 60	25	70	8.6	12.5	300	500
22 x 66	28	77	10.2	18	366	610
24 x 72	32	82	12.78	18	432	720
26 x 78	35	91	14.87	21.3	510	850
30 x 90	38	105	19.6	28.3	678	1130
32 x 96	40	106	22.29	32.2	772	1286

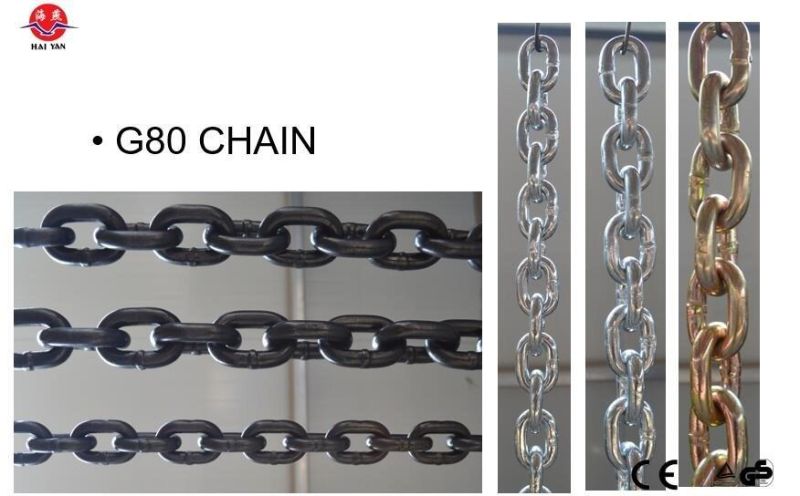

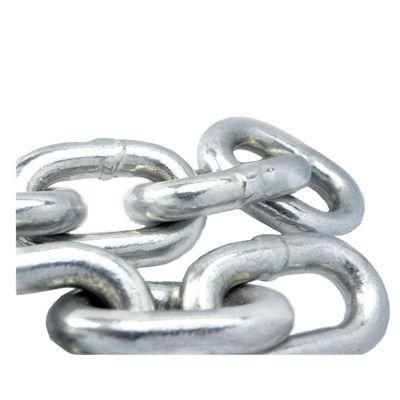

G80 load chain display:
