Stainless Steel Screw Pin Anchor Shackle
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Shape：D Shape
- Usage：Marine, Outdoor, Household, Connection
- Color：Silver
- Condition：New
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
Base Info
- Model NO.：DECOR
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Certification：SGS&TUV
- Sizes：From 3,16′′ to 1-1,4′′
- Drawing：CAD
- Brand：Decor
- Machining：CNC
- Shackle：Stainless Steel Screw Pin Anchor Shackle
- Service：One Stop Shopping
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：from 7mm to 41mm or 3,16′′ to 1-1,4′′
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：1, 000, 000PCS,Month
Description
Product Name
Stainless Steel Anchor Shackle
Material
stainless steel 316 or 304 or carbon steel
Surface finish
Highly Polished or hot dip galvanized or electro galvanized
Color
Nickel White
Standard

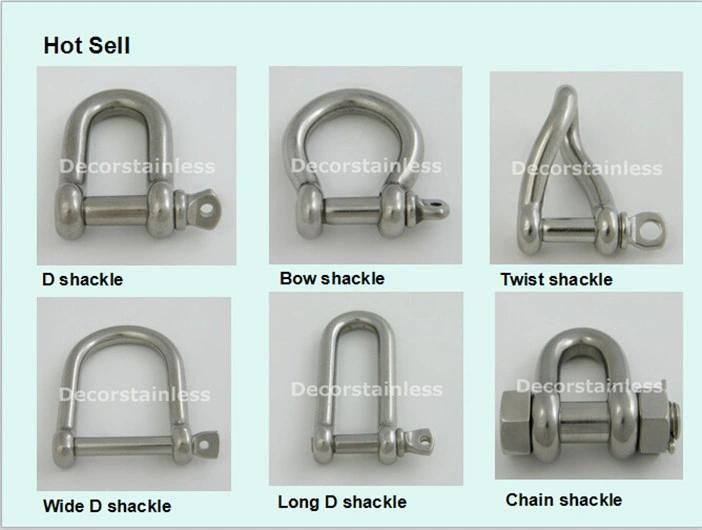

D shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Type
DIN Type, European Type, Japan Type And US Type
Used
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
| Dimension | Size A | B | C | D |
| (inch) | (inch) | (mm) | (mm) | (mm) |
| 3/16" | 3/16" | 7 | 10 | 21 |
| 1/4" | 1/4" | 8 | 12 | 28 |
| 5/16" | 5/16" | 10 | 13 | 30 |
| 3/8" | 3/8" | 11 | 17 | 36 |
| 7/16" | 7/16" | 13 | 18 | 45 |
| 1/2" | 1/2" | 16 | 21 | 46 |
| 5/8" | 5/8" | 19 | 26 | 61 |
| 3/4" | 3/4" | 22 | 32 | 72 |
| 7/8" | 7/8" | 25 | 38 | 84 |
| 1" | 1" | 29 | 44 | 96 |
| 1-1/2" | 1-1/2" | 41 | 60 | 146 |
| 1-1/4" | 1-1/4" | 35 | 52 | 119 |
