Live Center Precision Heavy Duty
Qingdao Tide Machine Tool Supply Co., Ltd.- Transport Package:Carton
- Trademark:OEM
- Origin:China
Base Info
- Model NO.:251-30
- HS Code:8466100000
- Production Capacity:1000PCS,Month
Description
Basic Info.
Model NO. 251-30 HS Code 8466100000 Production Capacity 1000PCS/MonthProduct Description

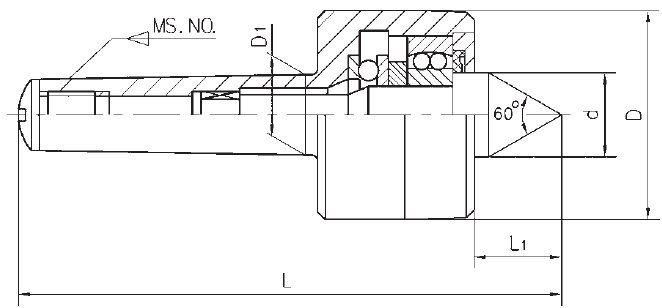

Morse Taper | L (mm) | D (mm) | L1 (mm) | d (mm) | D1 (mm) | Max. Radial Load (N) | Max. Speed (rpm) | Accuracy | Model No. |
MT1 | 109.6 | 38 | 18.5 | 16 | 12.065 | 1400 | 3600 | 0.008 | 251-3001 |
MT2 | 128.5 | 48 | 24 | 22 | 17.78 | 3500 | 3400 | 0.01 | 251-3002 |
MT3 | 156 | 58 | 28.5 | 25 | 23.825 | 5500 | 3200 | 0.01 | 251-3003 |
MT4 | 192.5 | 68 | 31.5 | 28 | 31.267 | 8000 | 3000 | 0.01 | 251-3004 |
MT5 | 245 | 90 | 45 | 41 | 44.399 | 10000 | 2500 | 0.012 | 251-3005 |
MT6 | 342.5 | 130 | 64 | 63 | 63.348 | 15000 | 1500 | 0.015 | 251-3006 |
