Galvanized Thimble Clevis for Pole Line Hardware
Victory Electric Power Equipment Co., Ltd.- Name：Thimble Clevis
- Material：Ductile Iron
- Finish：Hot DIP Galvanized
- Usage：Link Fittings
- Transport Package：Standard Export Package or on Your Request
- Specification：ANSI
Base Info
- Model NO.：TC-70
- Trademark：VIC
- Origin：Lishui, Zhejiang, China
- HS Code：8535900090
- Production Capacity：800000PCS,Month
Description
Basic Info.
Model NO. TC-70 Trademark VIC Origin Lishui, Zhejiang, China HS Code 8535900090 Production Capacity 800000PCS/MonthProduct Description
THE MATERIAL ON THE ABOVE THIMBLE CLEVISES IS AS FOLLOWS :
BODY : DUCTILE IRON
COTTER PIN : STEEL
COTTER KEY : STAINLESS STEEL
HOT DIPPED GALVANIZED TO ASTM A153 OR BS 729

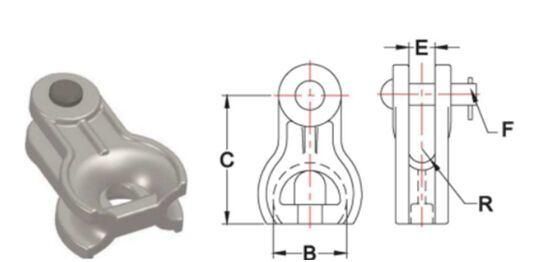

| CATALOG NUMBER | THIMBLE STRENGTH LBS. | EYE STRENGTH LBS. | DIMENSION HBU | DIMENSION "C" | DIMENSION | DIAMETER | GROOVE UR" |
| TC20 | 20,000 | 12,500 | 2 1/4" | 3 9/16n | 7/8" | 5/8" | .88" |
| TC35 | 35,000 | 25,000 | 2 1/4" | 4 3/8" | 7/8" | 3/4" | .88" |
| TC40 | 40,000 | 30,000 | 2 1/2" | 4 7/8" | 1 1/16" | 3/4" | 1.00" |
| TC60 | 60,000 | 40,000 | 2 1/2" | 5 7/8" | 1 1/16" | 1" | 1.00" |
| TC80 | 80,000 | 50,000 | 2 1/2" | 6" | 1 1/16H | 1 1/4" | 1.00" |
| TC80HD | 80,000 | 50,000 | 3" | 6 1/8" | 1 5/16H | 1 1/8n | 1.31" |
| TC80HD-P | 80,000 | 66,000 | 3" | 6 1/8n | 1 9/16" | 1 1/8n | 1.31" |
-------------------------------------------------------------------------------------------------------------
Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.
