• Model NO.：G210
• Specification：alloy steel
• Trademark：FR
• Origin：China
• HS Code：73261910
• Production Capacity：100000pieces,Month

Basic Info.

Model NO. G210 Specification alloy steel Trademark FR Origin China HS Code 73261910 Production Capacity 100000pieces/Month

Product Description

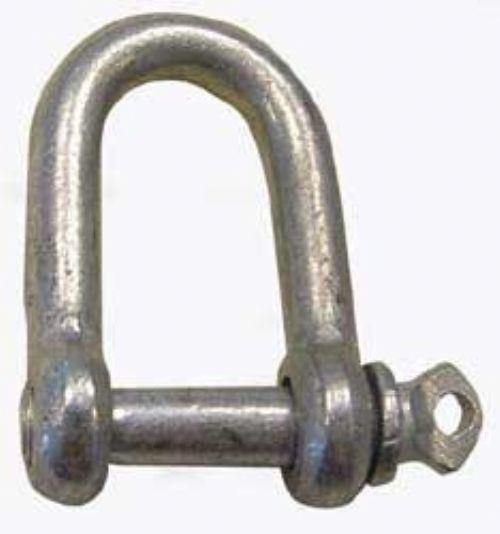

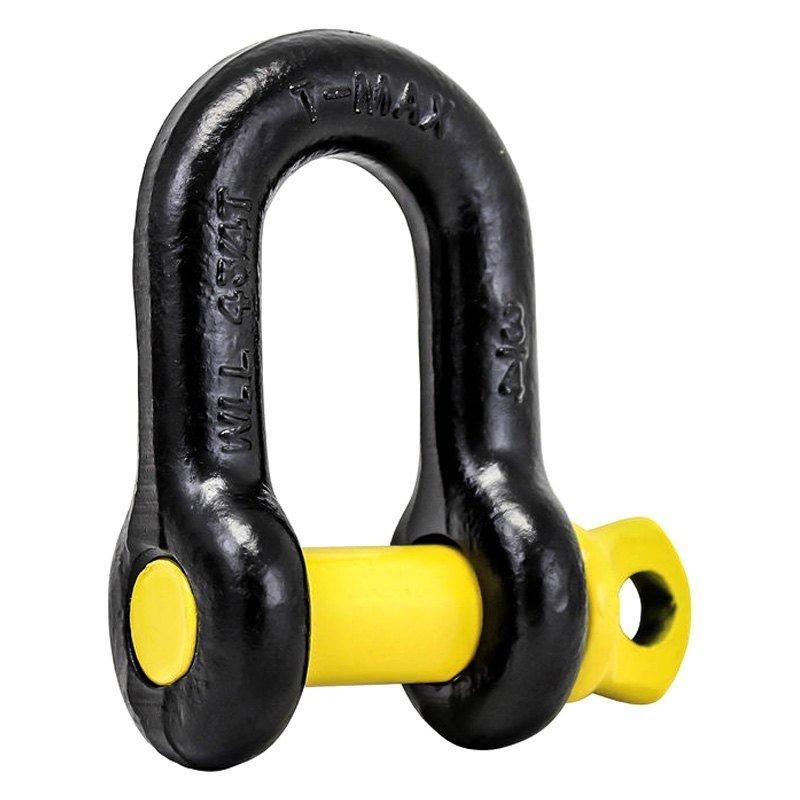

Supplier G210 Lifting electro Galvanized Screw Pin US Dee Type Carbon Steel Drop Forged Marine Rigging D Shackle



PRODUCT DESCRIPTION



Size:3/16inch-2 1/2inch

Material: Carbon steel,  Alloy steel

Surface treatment: Galvanized, Plastic spraying

Color: Red , grey, green, as your request

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

The product has passed the environmental management system certification, and can handle

the product certification of well-known classification societies such as CCS, LR, DNV, etc.
The product has high strength, light weight, exquisite design, strong versatility, diverse functions, and convenient safety inspection



TECHNICAL PARAMETERS

Size (in)	Wll (t)	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	G (mm)	K (mm)	M (mm)	Weight(kg/pc)
1/4	0.50	12.0	7.9	6.4	23.9	15.5	22.4	40.4	35.1	0.05
5/16	0.75	13.5	9.7	7.9	29.5	19.1	26.2	48.5	42.2	0.08
3/8	1.00	16.8	11.2	9.7	35.8	23.1	31.8	58.4	51.6	0.13
7/16	1.50	19.1	12.7	11.2	41.4	26.9	36.6	67.6	60.5	0.20
1/2	2.00	20.6	16.0	12.7	45.0	30.2	41.4	77.0	68.3	0.27
5/8	3.25	27.0	19.0	16.0	58.7	38.1	50.8	95.3	84.8	0.57
3/4	4.75	31.8	22.4	19.1	69.9	46.0	60.5	115.1	100.8	1.19
7/8	6.50	36.6	25.4	22.4	81.0	53.1	71.4	135.4	114.3	1.43
1	8.50	43.0	28.7	25.4	93.7	60.5	81.0	150.9	128.8	2.15
11/8	9.50	46.0	31.8	28.7	103.1	68.3	90.9	172.2	142.0	3.06
11/4	12.0	51.6	35.1	31.8	115.1	76.2	100.1	190.5	156.5	4.11
13/8	13.5	57.2	38.1	35.1	127	94.1	111.3	210.3	173.7	5.28
11/2	17.0	60.5	41.4	38.1	136.6	91.9	122.2	230.1	186.7	7.23
13/4	25.0	73.2	50.8	44.5	162.1	106.4	146.1	278.6	230.6	12.13
2	35.0	82.6	57.2	50.8	184	122.2	171.5	311.9	362.6	19.19
21/2	55.0	105	69.9	66.5	238.3	144.5	203.2	376.9	330.2	32.55

SHIPPING & DELIVERY



Usually packed in plastic bags, and then in export carton, high quality pallets ;

According to your requirements.

Delivery Detail: Usually 25-30 working days after receiving your advance payment.

Bulk packing
Packed in wooden cases
Packed in paper boxes, then in pallets
According to your requirements
Delivery Detail:
Usually 25 days after receiving your advance payment.



COMPANY INFORMATION

Weifang First Rigging Co., Ltd. formerly known as Changle Chain Factory, is located in Changle

County of Shandong Province , specializes in producing chain and rigging related products at home

and abroad.

products are widely applied to the fields of ships, steel, petrochemical industry, coal mine.
Has independent import and export operating rights, can handle the certifications of CCS, LR, DNV.
Sold to dozens of countries such as Eurpoe, America and Middle East as well as more than ten provincial and

municipal regions in China!
We are willing to cooperate with domestic and foreign new/old customers in utmost sincerity, to

create a common future!

FAQ



1.Are your manufacturer or Trading Company?
First rigging is professional manufacturer, more than 20 years
experience.
2. What products do you supply?
1) Lifting link chain, Coal Mining chain
2) Round Master link
3) Other related products
3.What is your lead time?
  Usually 25-30 working days after receiving your advance payment.
4. How do I receive the goods ?
FOB, CFR, CIF are most commonly used trade terms.
5.How do I pay?
TT(Telegraphic Transfer),30% payment in advance, 70% balance
before shipment.

CONTACT US



Any interest please feel free to contact Nancy!
