China Factory Supply 16mm G80 Alloy Chain
Baoding Jiazhong Hoisting Machinery Plant- Usage:Drag Chain, Conveyor Chain
- Material:Alloy
- Surface Treatment:Polishing
- Feature:Heat Resistant
- Chain Size:1,2"*3,32"
- Structure:Welded Chain
Base Info
- Model NO.:PL
- Color:Multi-Colored
- Working Load Limit:8t
- Inside Length:48mm
- Colour:Black
- Grade:80
- Transport Package:Wooden Case, Steel Drum
- Specification:CE GS ISO9001
- Trademark:HAIYAN
- Origin:Baoding China
- HS Code:731582000
- Production Capacity:1000000m,Year
Description
Basic Info.
Model NO. PL Color Multi-Colored Working Load Limit 8t Inside Length 48mm Colour Black Grade 80 Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/YearProduct Description
China factory supply 16MM G80 ALLOY CHAINBaoding Jiazhong Hoisting Machinery Plant. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant.. the ideal choice for you.

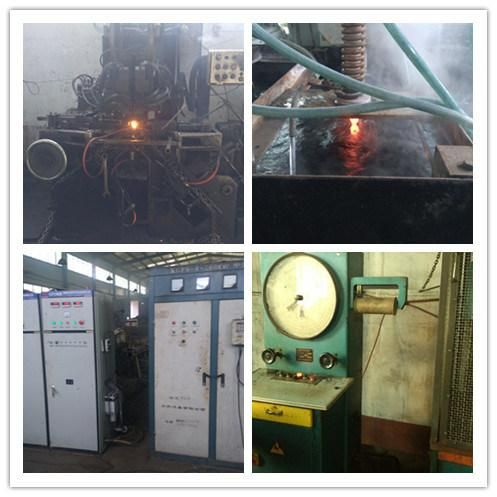

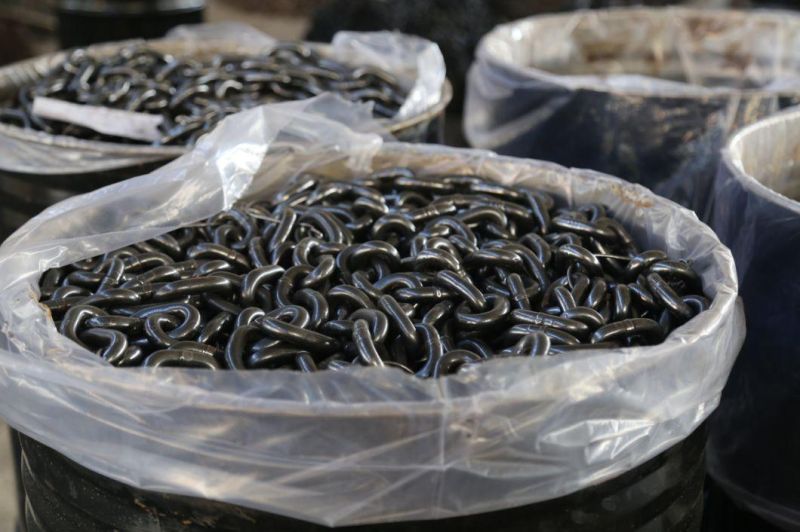

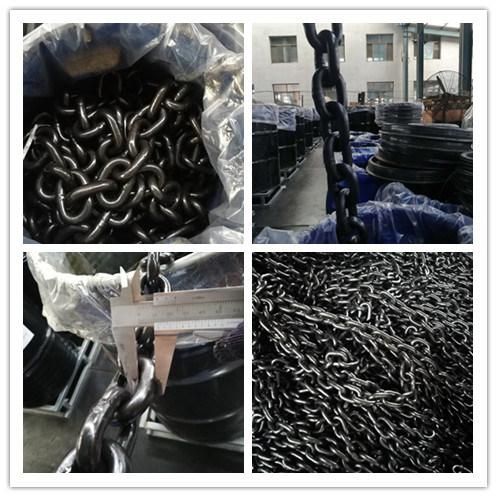

G80 ALLOY CHAIN pics:
G80 ALLOY CHAIN product parameter
Size(mm) | Inside Width(mm) | Outside Width(mm) | Approx Weight KG/M | W.L.L. Ton | Test Load KN | B.L. KN |
6 x 18 | 7.5 | 21.0 | 0.79 | 1.1 | 27 | 45.2 |
7 x 21 | 9.0 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
8 x 24 | 10.0 | 28.0 | 1.38 | 2.0 | 48 | 80.4 |
10 x 30 | 12.5 | 35.0 | 2.20 | 3.2 | 76 | 125 |
12 x 36 | 15.0 | 42.0 | 3.10 | 4.6 | 109 | 181 |
13 x 39 | 16.3 | 46.0 | 3.80 | 5.0 | 128 | 214 |
16 x 48 | 20.0 | 56.0 | 5.63 | 8.0 | 192 | 320 |
16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
18x54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
19x57 | 23.7 | 63.5 | 7.7 | 11.3 | 270 | 450 |
20x60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
22x66 | 28 | 77 | 10.2 | 15.3 | 366 | 610 |
26x78 | 35 | 91 | 14.87 | 21.3 | 510 | 850 |
30x90 | 38 | 105 | 19.6 | 28.3 | 678 | 1130 |
32x96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286 |
Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing
Welcome to call us 008615930701937 for more details!
