Stainless Steel Eye Terminal
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Type：Eye Terminal
- Usage：Assemble with Wire Rope
- Installation：External
- Condition：New
- Color：Silver
Base Info
- Model NO.：DECOR
- Surface Treatment：Highly Polished
- Turnbuckle：Rigging Screw
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Function：Assemble with Wire Rope
- Certification：SGS&TUV
- Sizes：From M2 to M26
- Brand：Decor
- Production Equipment：Latest CNC Machine
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From from M2 to M26 or as Per Your Requests
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：1, 000, 000PCS,Month
Description

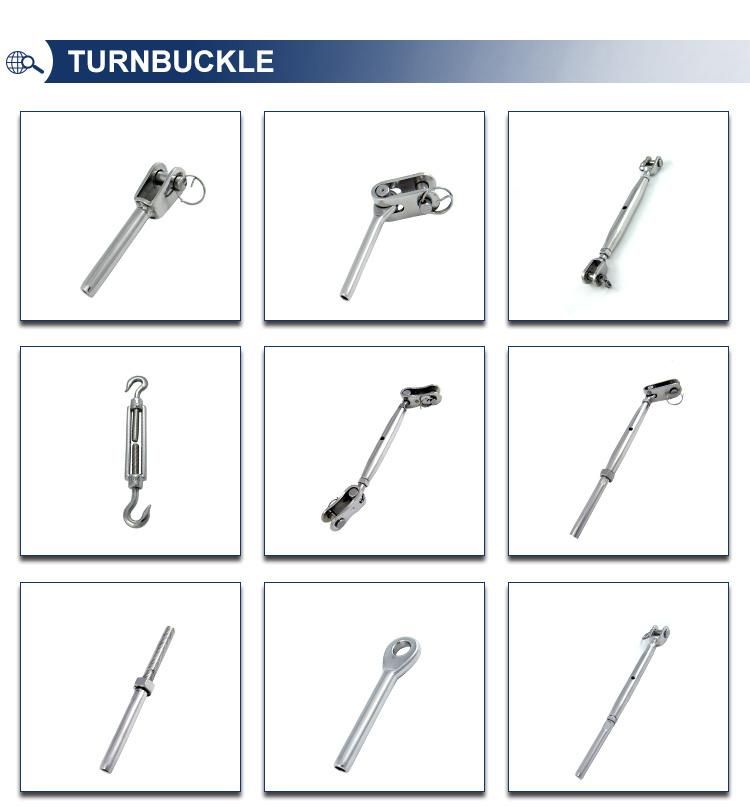

These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends.
| Dimension | B | D | D1 | D2 | L1 | L |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 2 | 13 | 5.4 | 2.2 | 5.5 | 30 | 48.5 |
| 2.5 | 13 | 5.4 | 2.7 | 5.5 | 30 | 48.5 |
| 3 | 14 | 6.5 | 3.3 | 6.35 | 36 | 55 |
| 4 | 18 | 8.5 | 4.3 | 7.5 | 39 | 65 |
| 5 | 22 | 10 | 5.3 | 9 | 50 | 80 |
| 6 | 28 | 12.5 | 6.4 | 12.6 | 62 | 94 |
| 7 | 28 | 12.5 | 7.4 | 14.2 | 68 | 105 |
| 8 | 32 | 14.5 | 8.4 | 16 | 85 | 124 |
| 10 | 36 | 16.4 | 10.5 | 18 | 90 | 142 |
| 12 | 40 | 19.3 | 12.6 | 20 | 105 | 160 |
| 14 | 47 | 23 | 14.7 | 25 | 140 | 206 |
| 16 | 53 | 26 | 16.9 | 28 | 160 | 232 |
| 19 | 65 | 28.5 | 20 | 34.5 | 200 | 302 |
| 22 | 70 | 33 | 23.2 | 40.5 | 230 | 348 |
| 26 | 77 | 36 | 27.5 | 46 | 280 | 400 |
