High Carbon Steel G80 Forged D Ring for Lifting
Shandong Licheng Link Chain Co., Ltd.- Grade：G80
- Material：High Carbon Steel
- Colour：Red,Yellow
- Package：Carton
- Function：Connecting
- Size：2.5-8t
Base Info
- Model NO.：G80
- Surface Treatment：Color-Painted, Self-Colored, Polished
- Transport Package：Bags or Cartons, Then in Pallets.
- Specification：2.5-8t
- Trademark：LS
- Origin：China
- HS Code：7326909000
- Production Capacity：50000PCS,Per Month
Description
Basic Info.
Model NO. G80 Surface Treatment Color-Painted, Self-Colored, Polished Transport Package Bags or Cartons, Then in Pallets. Specification 2.5-8t Trademark LS Origin China HS Code 7326909000 Production Capacity 50000PCS/Per MonthProduct Description

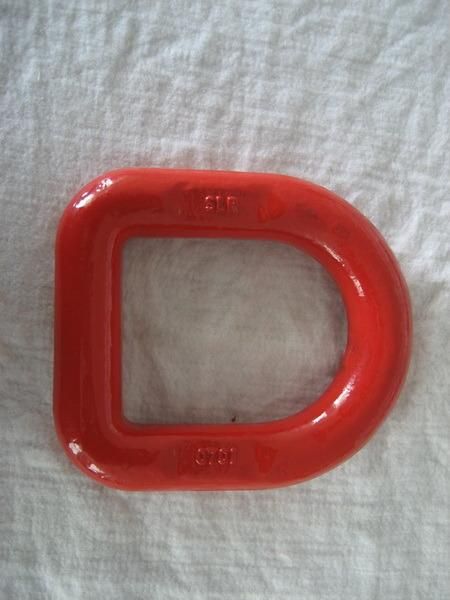

High Carbon Steel G80 Forged D Ring*Grade: G80
*Materials: Alloy steel, EN1677 material
*Surface treatment: Color-painted, self-colored, polished

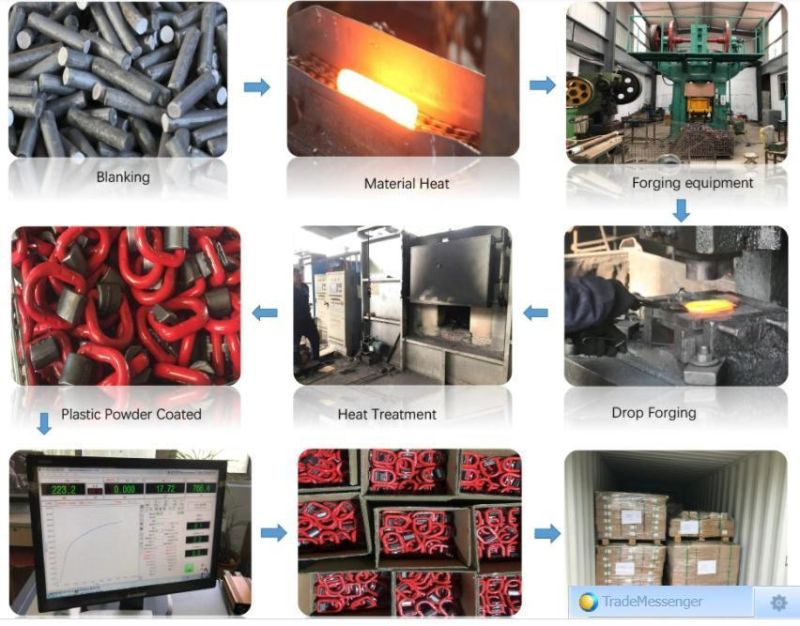

*Process: Drop forged, heat treated
*Special specifications and marks can be made according to customer's requirement
*Packing: Plastic bags and cartons on pallets
* Design Factor 4 Proof tested and certified.
Ultimate load is 4 times the Working Load Limit.
| item no. | weight/kg | wll/t | b.l/t | A±1.5 | B±1.5 | D±1 |
| 2.5T | 0.3 | 2.5 | 10 | 65 | 55 | 14 |
| 4T | 0.5 | 4.0 | 16 | 62 | 64 | 17 |
| 6.5T | 0.7 | 6.5 | 26 | 80 | 72 | 19 |
| 8T | 1.0 | 8.0 | 32 | 90 | 76 | 22 |
