• Model NO.：G2130 shackle
• Size：3,16′′-3′′
• Application：Lifting
• Surface Finish：Elec-Galvanized .Stainless Steel .HDG
• Sample：for Free
• Delivery：10-20 Days

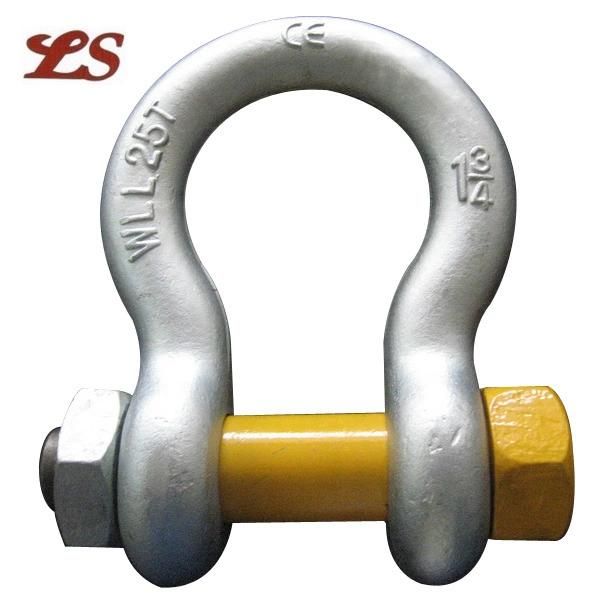

• Type：G2130 Bow Shackle
• Key Word：Bow Shackle
• MOQ：100
• Transport Package：Cartons,Bags Then in Pallets.
• Specification：ce
• Trademark：ls brand
• Origin：Shandong, China
• HS Code：73269090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. G2130 shackle Size 3/16′′-3′′ Application Lifting Surface Finish Elec-Galvanized .Stainless Steel .HDG Sample for Free Delivery 10-20 Days Type G2130 Bow Shackle Key Word Bow Shackle MOQ 100 Transport Package Cartons/Bags Then in Pallets. Specification ce Trademark ls brand Origin Shandong, China HS Code 73269090 Production Capacity 10000PCS/Month

Product Description

For lifting application.
Forged -quenched and tempered.
Bow body -surface: Hot dip galvanizing/electrogalvanizing.
Nut-surface finish: Electrogalvanizing
Bolt -surface finish: Hot dip galvanizing /electrogalvanizing /powder plastified.




ITEM NO.   362-	weight/lbs	wll/t	B.l/t	A+/-1.5	C+/-1.5	D+/- 1	L+/-3	H+0.2	N	L1+/-0.5	B
3/16	0.06	0.33	1.98	9.7	15.3	4.8	37.5	7	6	32	3.2
1/4	0.11	0.5	3	11.9	19.8	6.35	46.8	8.7	7.5	40	4
5/16	0.22	0.75	4.5	13.5	21.4	8	53	11.5	9.5	48.4	5
3/8	0.33	1	6	16.8	26.2	9.7	63.3	13	11.2	58.8	6
7/16	0.49	1.5	9	19	29.5	11.2	78	15	13.4	65.9	7
1/2	1.01	2	12	20.6	33.3	12.7	83.3	17	15.2	73.7	8
5/8	1.60	3.25	19.5	27	42.9	17.5	106.5	21	19	94	10
3/4	2.42	4.75	28.5	32	50.8	20.6	126.5	23.5	21.2	108.7	10
7/8	3.95	6.5	39	36.6	58	24.6	148.1	26.5	24	127.8	12
1	5.66	8.5	51	43	68.4	27	166.6	29.5	27	145.8	13.5
1-1/8	8.27	9.5	57	46	74	31.75	190	32	30	160.6	15
1-1/4	11.71	12	72	51.6	82.6	35	209.6	38.5	36	181.4	18
1-3/8	15.83	13.5	81	57.2	92.2	38.1	232.7	41	39	188.3	19
1-1/2	20.8	17	102	60.5	98.6	41.2	254	41.5	39	211	20
1-3/4	33.91	25	150	73.2	127	57.2	313.5	50.5	48	281.6	39
2	52.25	35	210	82.5	146	61	347.5	58.5	56	311	46
2-1/2	98.25	55	330	105	184.2	79.5	453.2	70..5	68	403	58
3	154	85	510	127	200.2	92	546	82.5	80	476	64
