• Model NO.：SSHC
• Complies to：American SAE J 1508
• Transport Package：PP Bag, Master Carton, Pallet
• Specification：SAE J 1508 TYPE F & M
• Trademark：WANDA
• Origin：Zhejiang Ningbo
• HS Code：73269090
• Production Capacity：100, 000 PCS, Day

Basic Info.

Model NO. SSHC Complies to American SAE J 1508 Transport Package PP Bag, Master Carton, Pallet Specification SAE J 1508 TYPE F & M Trademark WANDA Origin Zhejiang Ningbo HS Code 73269090 Production Capacity 100, 000 PCS/ Day

Product Description

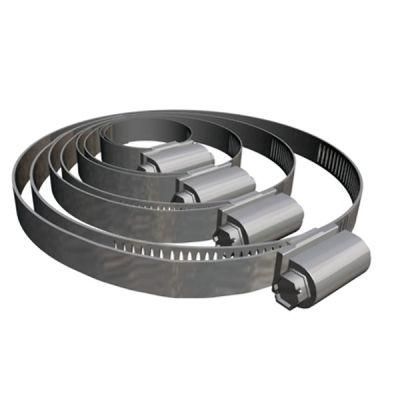

Stainless Steel Hose Clamp
Worm Drive Style
Type: US Housing Interlock Design
SAE J1508 TYPE M  5/16" Wide Band, 1/4" Hex Head Slotted Screw
SAE J1508 TYPE F  1/2" Wide Band, 5/16" Hex Head Slotted Screw
Materials
Band & Housing made from type 301 stainless steel
Screw made from type 305 stainless steel

pupular sizes
5/8"  10-16mm
3/4"  11-20mm
7/8"  13-23mm
1-1/16"  14-27mm
1-1/4"   18-32mm
1-1/2"   21-38mm
1-3/4"   21-44mm
2"          27-51mm
2-1/4"   33-57mm
2-1/2"   40-64mm
2-3/4"   46-70mm
3"          51-76mm
3-1/4"   59-82mm
3-1/2"   65-89mm
3-3/4"   72-95mm
4"          78-101mm
4-1/4"  84-108mm
4-1/2"  91-114mm
5"         103-127mm
5-1/2"  118-140mm
6"         130-152mm
6-1/2"  141-165mm
7"         155-178mm
