Hot Selling Stainless Steel DIN 741 Wire Rope Clip
Qingdao Thinkwell Hardware & Machinery Co., Ltd.- Material:Metal
- Usage:Wire Rope Clamp
- Structure:Wire Rope Clamp
- Standard:Standard
- Condition:New
- Brand:Thinkwell
Base Info
- Model NO.:Din 741
- Application:Fastening
- Technology:Casting and Forging
- Color:Silver
- Surface:Galvanized,Hot Dipped Galvanized
- Grade:a
- Other:Customized
- Loading Port:Qingdao
- Materials:Stainless Steel
- Transport Package:Carton, Bag, Pallet
- Specification:CE, ISO9001
- Trademark:Thinkwell
- Origin:China
- HS Code:7326909000
- Production Capacity:2000PCS Per Day
Description
Basic Info.
Model NO. Din 741 Application Fastening Technology Casting and Forging Color Silver Surface Galvanized,Hot Dipped Galvanized Grade a Other Customized Loading Port Qingdao Materials Stainless Steel Transport Package Carton, Bag, Pallet Specification CE, ISO9001 Trademark Thinkwell Origin China HS Code 7326909000 Production Capacity 2000PCS Per DayProduct Description

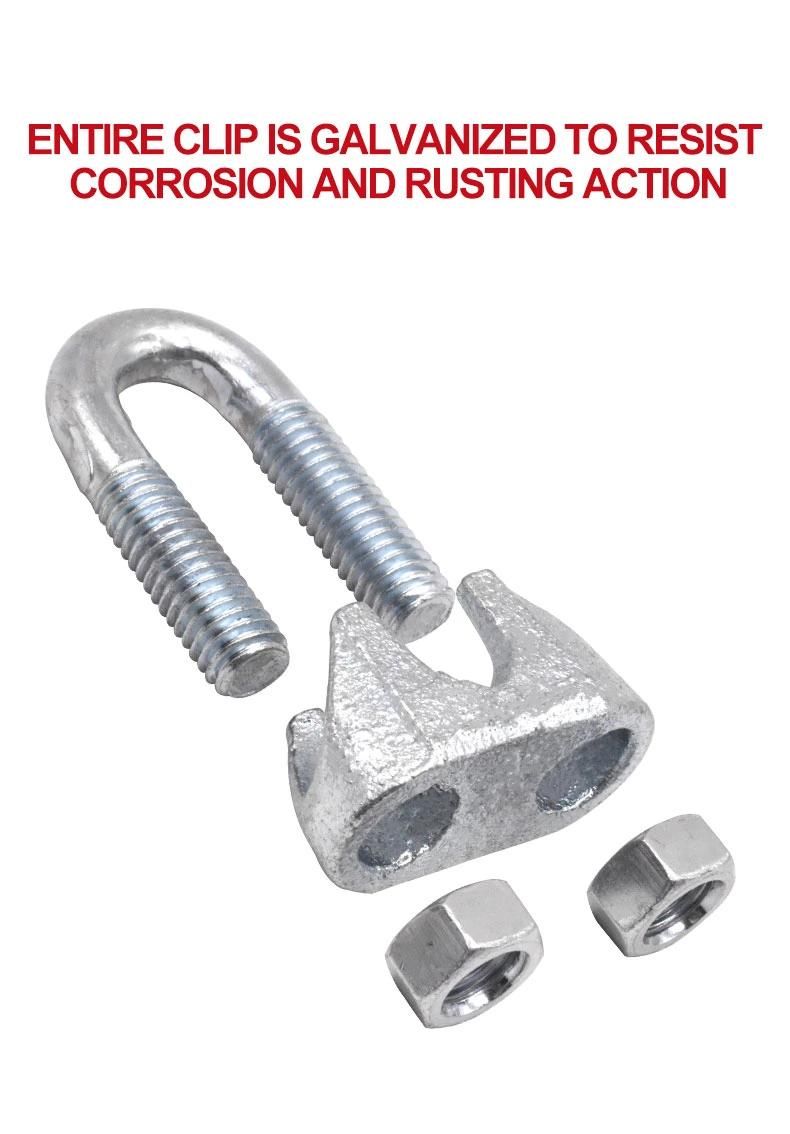

Hot Selling Stainless Steel DIN 741 Wire Rope ClipMaterial: stainless steel
Surface: Galvanized (hot dip and electroplating, color ), Zinc Plated, painted, SC
Process: Stamping
Breaking force: 4 times to WLL
Packing: Gunny bag, carton, pallet
Customized requirements are welcome!
Origin: China
FOB Port: Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India
Standard: CE, ISO
SIZE | D | B | H1 | H2 | H3 | L1 | L2 |
mm | mm | mm | mm | mm | mm | mm | mm |
3mm | M4 | 12 | 20 | 7.5 | 3.7 | 17.8 | 4.8 |
5mm | M5 | 13 | 24 | 8.2 | 3.9 | 22 | 5.1 |
6mm | M5 | 13 | 28 | 10.6 | 5 | 23.5 | 7 |
8mm | M6 | 20 | 34 | 11.7 | 6 | 27.4 | 9.5 |
10mm | M8 | 21 | 42 | 13 | 6.3 | 31.8 | 10 |
11mm | M8 | 24.5 | 44.5 | 16 | 6.5 | 36.5 | 12 |
13mm | M10 | 30 | 55 | 19.5 | 7.5 | 42 | 13 |
14mm | M10 | 30 | 57 | 23.8 | 7.7 | 44 | 14.5 |
16mm | M12 | 33 | 63.5 | 26.2 | 9.5 | 49.5 | 17.6 |
19mm | M12 | 38 | 75 | 31.3 | 10.8 | 54.4 | 22.5 |
22mm | M12 | 44 | 85 | 34.5 | 10.8 | 57.5 | 22.9 |
26mm | M14 | 45 | 95 | 35 | 11 | 64 | 27.5 |
