• Model NO.：3mm--50mm
• Product Name：Rigging Hardware DIN741 Malleable Cast Steel Wire
• Size：3mm-50mm
• Process：Casting
• Type：DIN741
• Material Type：Malleable
• Color：Zinc Plated
• U Bolt：Forged
• Samples：for Free
• MOQ：1000 PCS
• Packaging：PP Bag Then on Pallet(Carton on Pallet)
• Dlivery Time：About 15-30 Days After Confirmed The Order
• Surface：Electric Galvanized Cage Clips for Wire
• Place of Origin：Shandong, China (Mainland)
• Transport Package：Carton or Bag, Then in Pallet.
• Specification：3mm-50mm
• Trademark：customized
• Origin：Shandong, China
• HS Code：7326909000
• Production Capacity：25tons Per Month

Basic Info.

Model NO. 3mm--50mm Product Name Rigging Hardware DIN741 Malleable Cast Steel Wire Size 3mm-50mm Process Casting Type DIN741 Material Type Malleable Color Zinc Plated U Bolt Forged Samples for Free MOQ 1000 PCS Packaging PP Bag Then on Pallet(Carton on Pallet) Dlivery Time About 15-30 Days After Confirmed The Order Surface Electric Galvanized Cage Clips for Wire Place of Origin Shandong, China (Mainland) Transport Package Carton or Bag, Then in Pallet. Specification 3mm-50mm Trademark customized Origin Shandong, China HS Code 7326909000 Production Capacity 25tons Per Month

Product Description

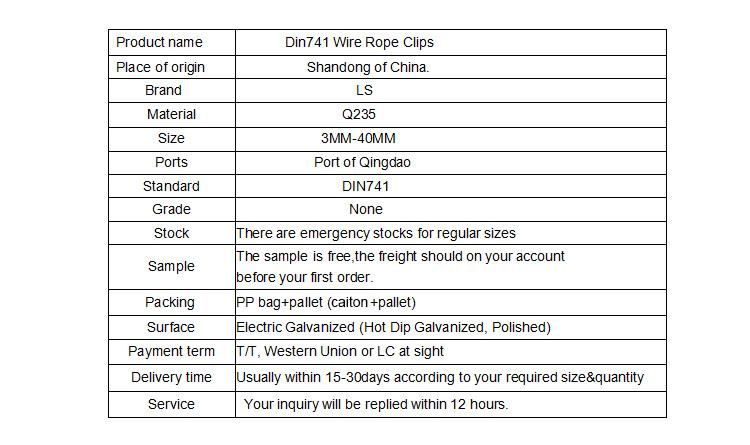

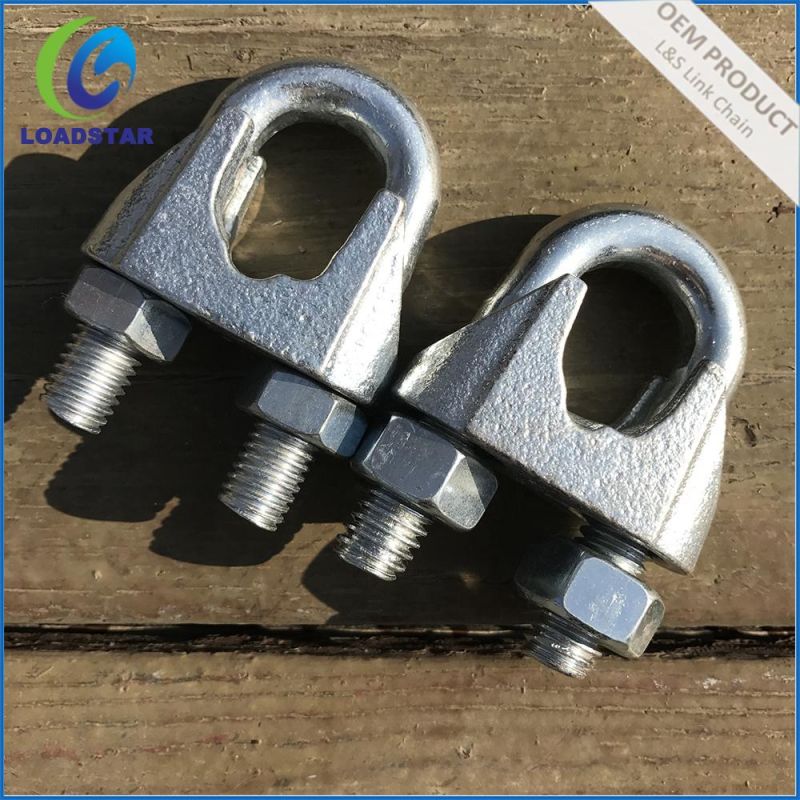

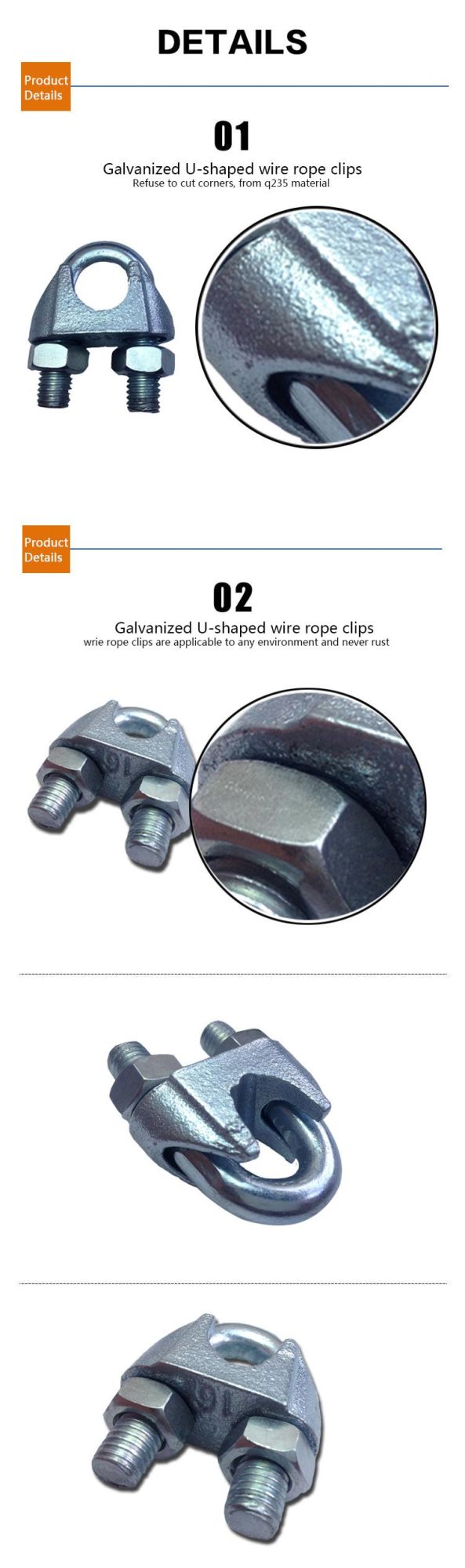

         Rigging Hardware Din741 Malleable Cast Steel Wire Rope Clamp




Material; Malleable(Carton steel, Alloy Steel, Stainless steel304/316).

Size: 3mm-50mm

Surface: Electro Galivanized(Hot Dip Galivanized, Polished).

Standard: DIN741

Stock: There are emergency stocks for regular sizes.

Packing method: PP bag+pallet(Catton+pallet).

Using range: Fastener in Industry and Construction; Suitable for wire rope.

Sample: The sample is free, the freight should on your account before your first order.

Payment term: 30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.

Delivery time; Usually within 15-30days according to your required size&quantity.

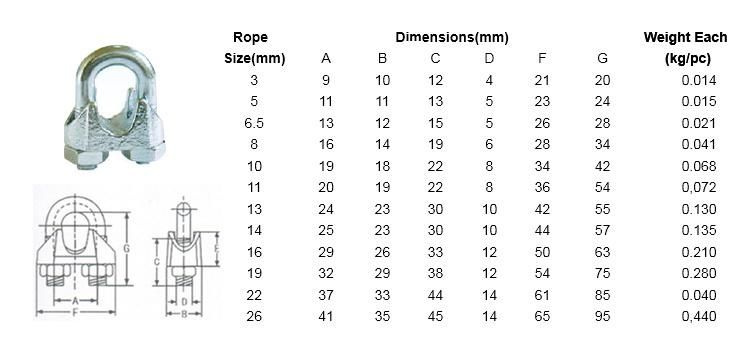

size	in	A	B	C	D	E	F	G	100/WTkg
mm	1/8	9	10	12	4	10	21	16	1.4
3	3/16	11	11	13	5	10	23	19	1.5
5	1/4	13	12	15	5	11	26	23	2.1
6.5	5/16	16	14	19	6	15	30	28	4.1
8	3/8	19	18	22	8	17	34	34	6.8
10	7/16	20	19	22	8	18	36	36	7.2
11	1/2	24	23	30	10	21	42	45	13
13	9/16	25	23	30	10	22	44	47	13.5
14	5/8	29	26	33	12	26	50	51	21
19	3/4	32	29	38	12	30	54	63	28
22	7/8	37	33	44	14	34	61	71	40
26	1	41	35	45	14	37	65	81	44
30	11/8	48	37	50	16	43	74	94	66
34	11/4	52	42	55	16	50	80	104	85
40	11/2	58	45	60	16	55	88	124	104

Wire rope clips are widely used in various industries.

Fastener in Industry and Construction; Suitable for wire rope.
