• Model NO.：TMS2
• Transport Package：Case
• Specification：0.25CBM
• Trademark：MHTOOL
• Origin：China
• HS Code：87168000
• Production Capacity：10000sets,Year

Basic Info.

Model NO. TMS2 Transport Package Case Specification 0.25CBM Trademark MHTOOL Origin China HS Code 87168000 Production Capacity 10000sets/Year

Product Description

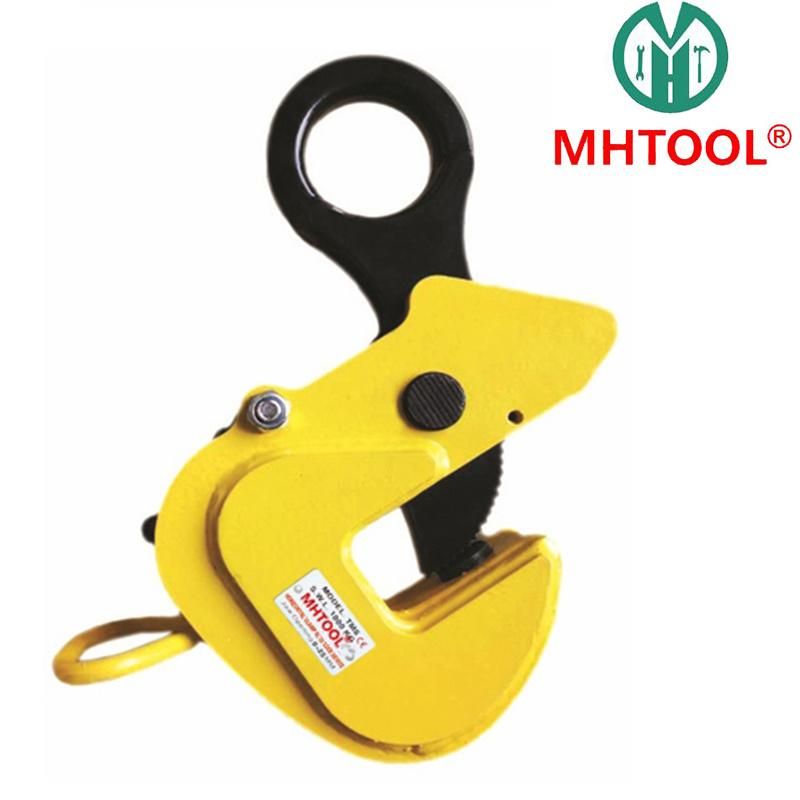

Lifting Clamp, Double Steel Plate Clamp, TMS Horizontal Clamp with lock device :

* Suitable for lifting and transport of steel plates and construction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.
*The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60° .
  In lifting operations the clamps can be used in pairs or multiples.
*The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durbility.

Part No.	Model	WLL  (t)	Jaw Opening (mm)	Weight (kg)
WRS-084	DCQ4	4.0	0-100	9
WRS-085	DCQ6	6.0	0-120	14
WRS-086	DCQ8	8.0	0-160	25
WRS-087	DCQ10	10.0	0-210	38
WRS-088	YDG1	1.0	0-24	7
WRS-089	YDG2	2.0	0-30	11
WRS-090	HPC1.5	1.5	0-50	4.3
WRS-091	HPC3	3.0	0-50	6
WRS-092	HPC5	5.0	0-60	12
WRS-093	TMS0.5	0.5	0-25	3.2
WRS-094	TMS1	1.0	0-25	5.3
WRS-095	TMS2	2.0	0-30	7.9
WRS-096	TMS3	3.0	0-38	10.5
WRS-097	TMS5	5.0	0-40	27.6
WRS-098	TMG0.8	0.8	20-53	8
WRS-099	TMG1.6	1.6	15-45	13

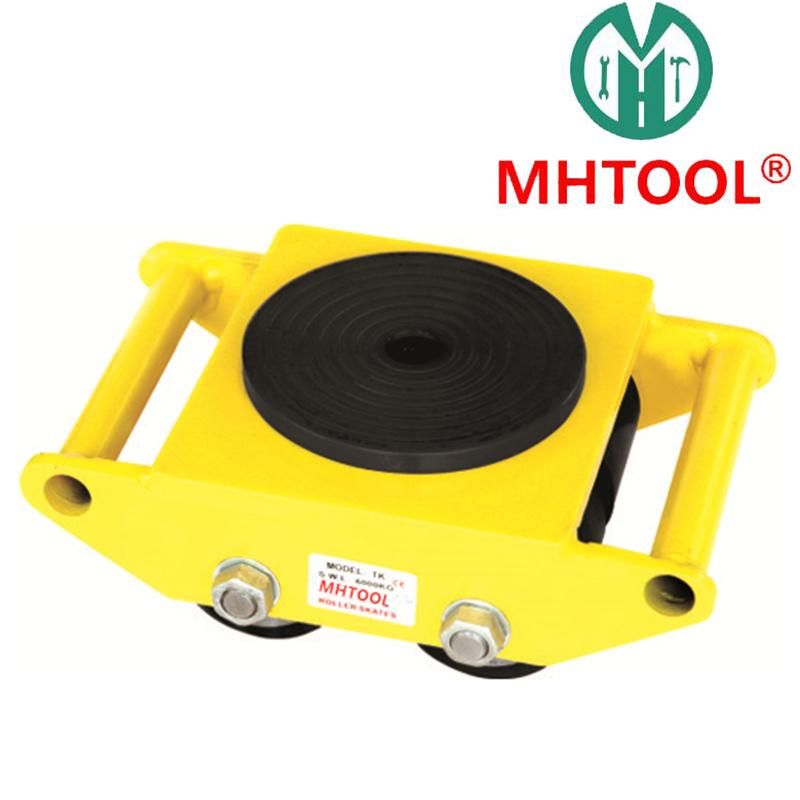

TK Series carrying small tanks:

Part No.	Model	Tonnes/per pair(t)	Number of Wheels(pcs)	Weight (kg)
WRS-195	TK6	6	4	15
WRS-196	TK8	8	6	22
WRS-197	TK12	12	8	29
WRS-198	TK18	18	12	43
