Forging Us Type L-140 Ratchet Load Binder

Qingdao Thinkwell Hardware & Machinery Co., Ltd.
  • Application：Fastening
  • Material：Alloy Steel,Carbon Steel
  • Process：Forged
  • Surface：Color Painted
  • Color：Red,Yellow,etc
  • Quality：High

Base Info

  • Model NO.：L-140
  • Grade：a
  • Testing：Qualified
  • Export Market：Global
  • Other：Customized
  • Transport Package：Carton and Iron Pallet
  • Specification：CE ISO
  • Trademark：Thinkwell
  • Origin：Qingdao China
  • HS Code：7326909000
  • Production Capacity：2, 000 Per Day

Description

Basic Info.

Model NO. L-140 Grade a Testing Qualified Export Market Global Other Customized Transport Package Carton and Iron Pallet Specification CE ISO Trademark Thinkwell Origin Qingdao China HS Code 7326909000 Production Capacity 2, 000 Per Day

Product Description

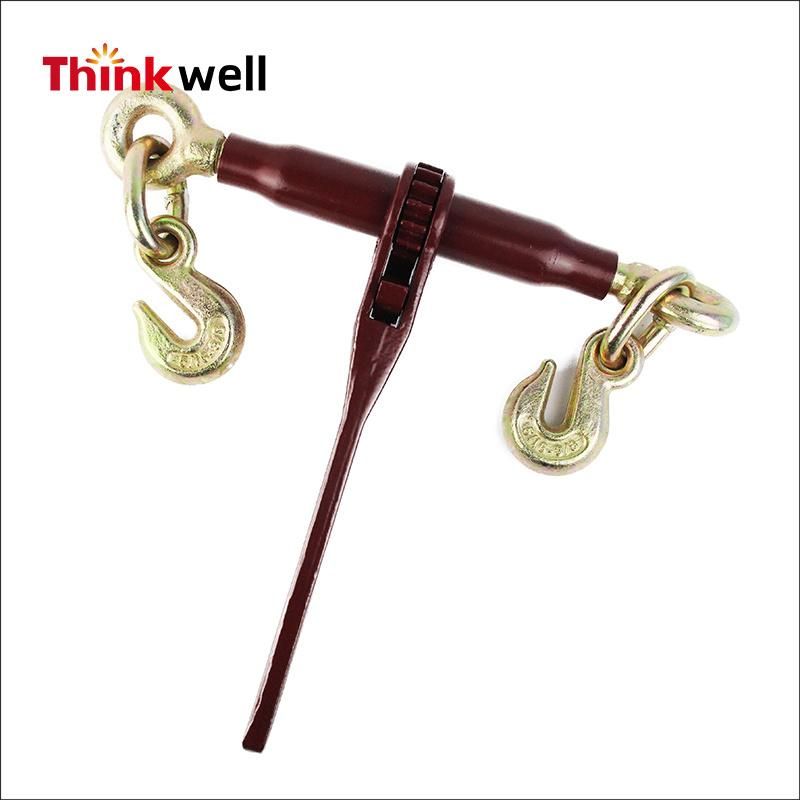

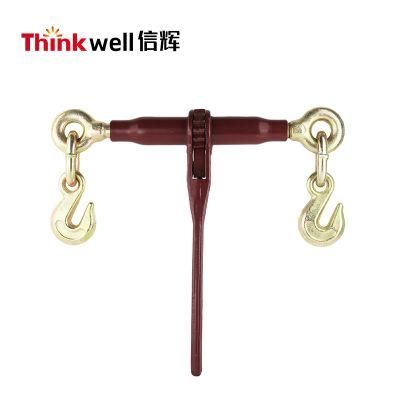

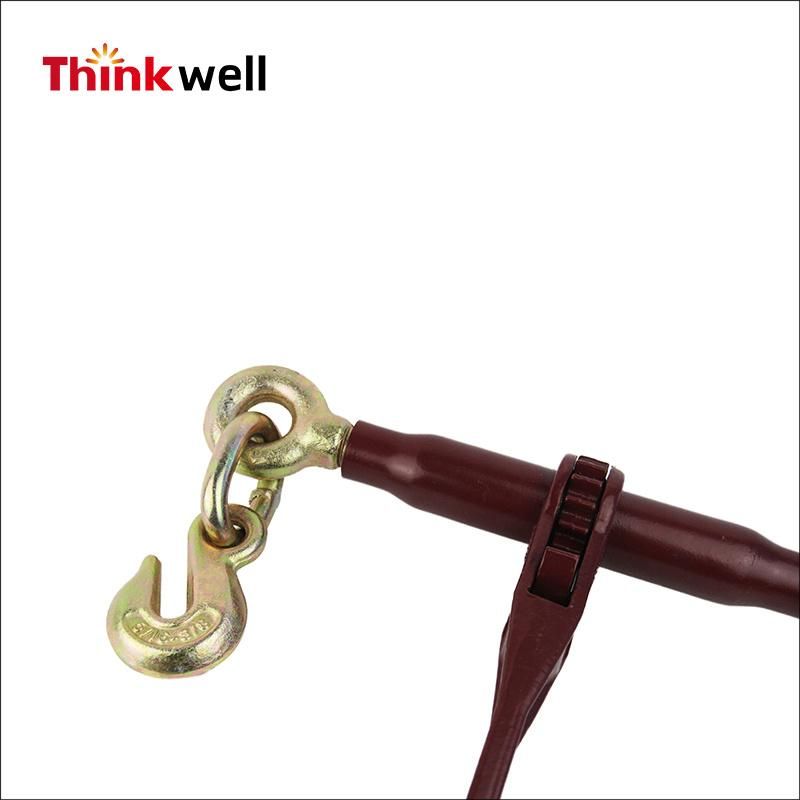

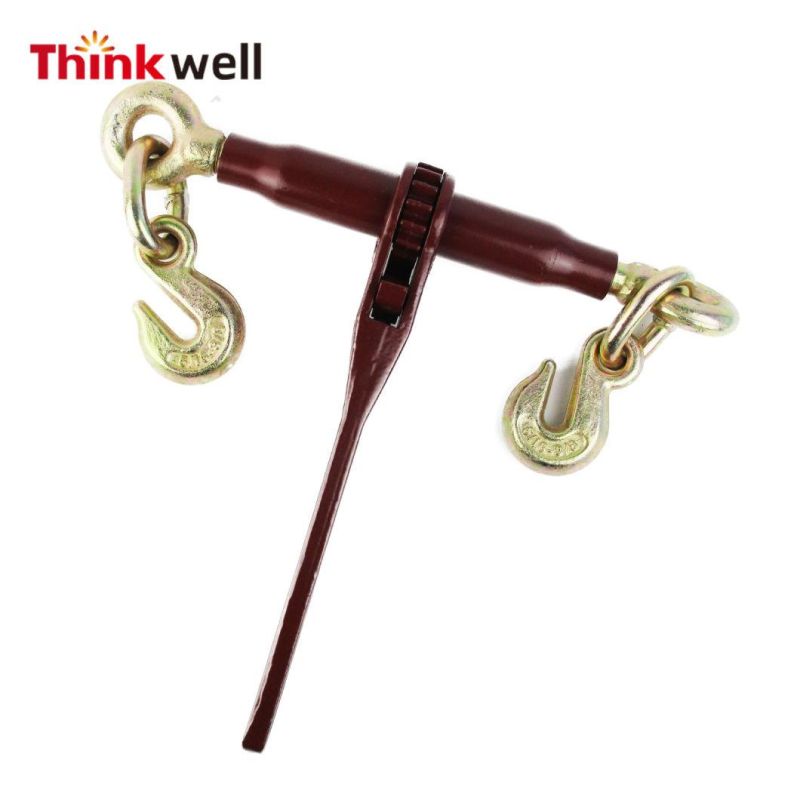

Forging US Type L-140 Ratchet Load Binder

Product Description:

Material: Alloy Steel,  Carbon steel
Heat Treatment : Quenched and Tempered
Process: Drop forged
Safety factor: MBL equals 3.5 x WLL
Finish: Painted red or other colors; Or galvanized
Certification: Test certificates can be supplied upon request
Forging Us Type L-140 Ratchet Load BinderForging Us Type L-140 Ratchet Load BinderForging Us Type L-140 Ratchet Load BinderForging Us Type L-140 Ratchet Load BinderForging Us Type L-140 Ratchet Load Binder

 Dimension

Chain Size		Length Handle
(a)		Diameter
(b)		Thickness
(c)		Length Barrel
(d)		Length
Open
(e)		Length Closed
(f)		Width
(g)		Take-upLashing CapacityProof
Load		Min
Breaking Load		Weight per pce

mmmmmmmmmmmmmmmmmmkgkgkgkg
8-103556616254750580131702450490086204.82
10-1335566162547706001617041758350149705.92
13-16355661625484068519155590011800208657.85



Customized requirements are welcome!






Qingdao Thinkwell Hardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.

MAIN PRODUCTS also manufacture chains, hooks, shackles, turnbuckles, wire rope clips, load binders and other rigging hardware accessories.




Advantages:

1.Rich experience for international business
2.Prompt delivery,
3.Quality control
3.Small orders are acceptable
4.Strong ability for R&D
