ISO 3077 Welding Alloy Electric Galvanized Heavy Duty Sling Chain
Weifang First Rigging Co., Ltd.- Usage：Transmission Chain
- Material：Alloy
- Surface Treatment：Electroplating
- Feature：Pull Resistant
- Chain Size：26mm*78mm
- Structure：Welded Chain
Base Info
- Model NO.：FST-lc14
- Color：Multi-Colored
- Minimum Inner Width：35mm
- Maximun Outer Width：91mm
- Weight：14.87kg,M
- Working Load：213kn
- Test Load：510kn
- Breaking Load：650kn
- Chain Manufecture Standard：ISO3077 En818-2 As2321
- Surface：Black. Polishing . Electric Galvanized
- Transport Package：Wooden Box
- Specification：26mm*78mm, alloy steel
- Trademark：First rigging
- Origin：Weifang, Shandong, China
- HS Code：73158200
- Production Capacity：150 Tons,Month
Description
Lifting chain specification:
| Size d*p(mm) | Minimun inner width(mm) | Maximun outer width(mm) | Weight(kg/m) | Working load(kn) | Test load (kn) | breaking load(kn) |
| 24*72 | 32 | 82 | 12.78 | 180 | 432 | 720 |
| 26*78 | 35 | 91 | 14.87 | 213 | 510 | 650 |
| 30*90 | 38 | 105 | 19.6 | 283 | 678 | 1130 |
| 32*96 | 40 | 106 | 22.29 | 322 | 772 | 1289 |
| 34*102 | 46.5 | 121.5 | 25.5 | 363 | 870 | 1450 |
| 36*108 | 49.5 | 128.5 | 31 | 407 | 978 | 1630 |
| 38*114 | 52 | 136 | 32 | 453 | 1086 | 1810 |
| 42*126 | 55.5 | 144.5 | 38.6 | 554 | 1332 | 2200 |
Scrap standard for chain:
1.The allowable wear value of the chain shall not exceed 10% of the diameter of the ring chain bar
2.Starting from the plane where the main ring is not bent, the main ring shall be scrapped if it is distorted by more than 10°
3.Crack, bend or twist in any part of the chain and stuck or stiff in the hinge are prohibited when they cannot be ruled out.
4.The permanent elongation of chains and single rings shall not exceed 5% of their original length.

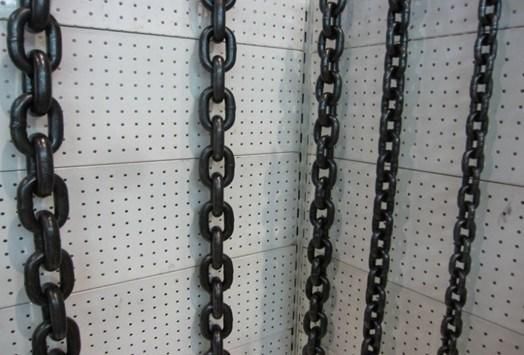

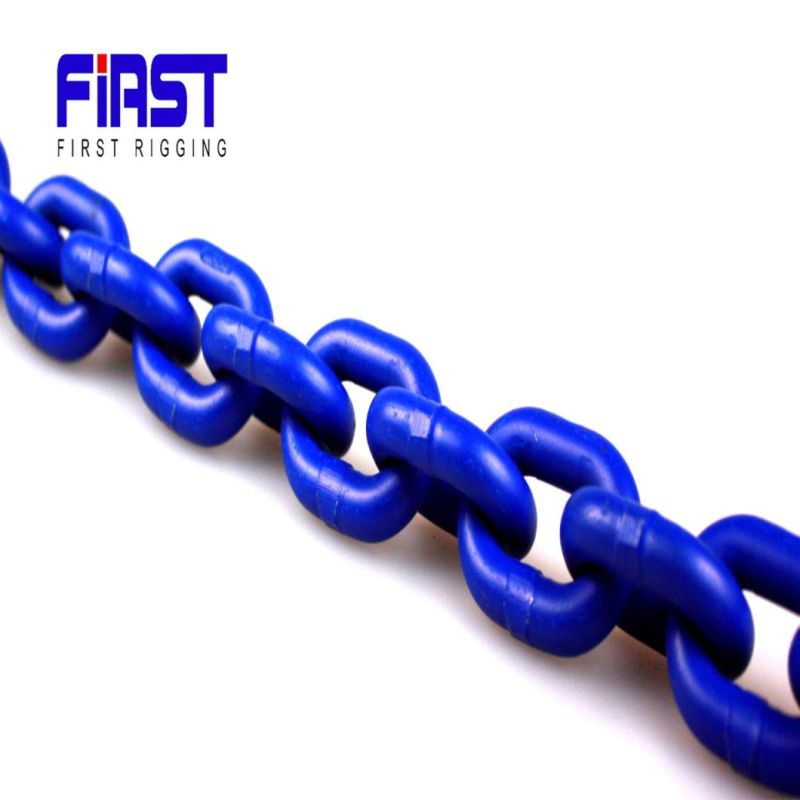

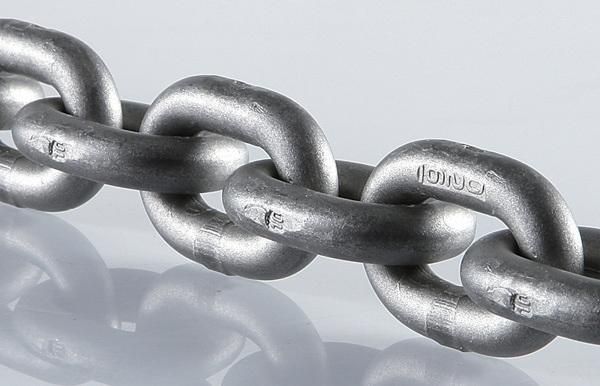

Our product:
Our client
Our products are sold a lots of counties, we can provide the high quality products for our cilent, we continue innovate manufacturing process, always provide customers wiht high products,we hope to cooperation with cilent around the word ,create tomorrow.
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
