Electrical Power Fittings Wire Clip Clamp Cable Clamp Pg Clamps
L&R ELECTRIC GROUP CO., LTD.- Usage:Splicing Fitting
- Structure:Pg Clamp
Base Info
- Model NO.:JB
- Standard:ISO 9001
- Condition:New
- Brand:L&R
- Size:Can Be Ordered
- Color:Silver
- Conductor Material:Cu, Al
- Transport Package:Wooden Pallet
- Specification:ISO9001: 2015
- Trademark:L&R
- Origin:Wenzhou, Zhejiang
- HS Code:73269090
- Production Capacity:20, 000PCS,Month
- Package size per unit product:10.00cm * 10.00cm * 15.00cm
- Gross weight per unit product:1.000kg
Description
Basic Info.
Model NO. JB Standard ISO 9001 Condition New Brand L&R Size Can Be Ordered Color Silver Conductor Material Cu, Al Transport Package Wooden Pallet Specification ISO9001: 2015 Trademark L&R Origin Wenzhou, Zhejiang HS Code 73269090 Production Capacity 20, 000PCS/MonthPackaging & Delivery
Package size per unit product 10.00cm * 10.00cm * 15.00cm Gross weight per unit product 1.000kgProduct Description

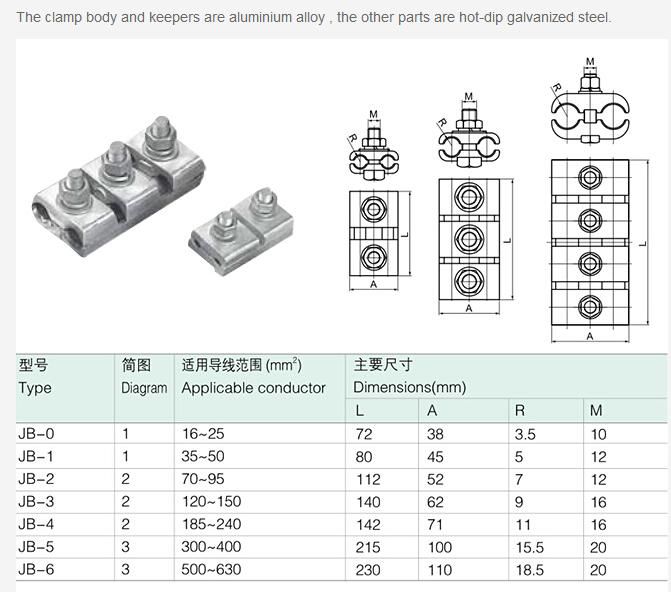

ApplicationJBL, JBT, JB-TL series specific forms parallel groove clamp is suitable for unendure force splicing and
branch on the aerial wire, being used with insulation cover. It's action is insulation protection.
Structure feature
* Select oxidize-resistance Aluminum alloy.
* Teeth-shape structure, touch with lowly resistance, reliable splicing.
* All pars connected with each other, it can't lose parts during installation.
* An arc embrace the most part, conductor can't change.
Insulation cover performance feature
* Withstand voltage: 18kv keep voltage one minute not breakdown
* Insulation resistance: >1.0x1014Ω
* Weather proof performance: have good performanced after 1008 hours artifical climate aging test.
