• Model NO.：THB
• Standard：Standard
• Condition：New
• Brand：L&R
• ABC Fittings：LV Dead End Clamp
• Transport Package：Standard
• Specification：ISO9001: 2008
• Trademark：L&R
• Origin：Zhejiang, China
• Production Capacity：10000 Piece,Pieces Per Month
• Package size per unit product：40.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：21.000kg

Item No.Cross section(mm²)

Messsenger DIA.(mm)

Breaking loadYJPA252×(16-25)

4-8

2 KNYJPA25B2×(16-25)

4-8

2 KNYJPA25BS2×(16-25)

6-10

2.5KN

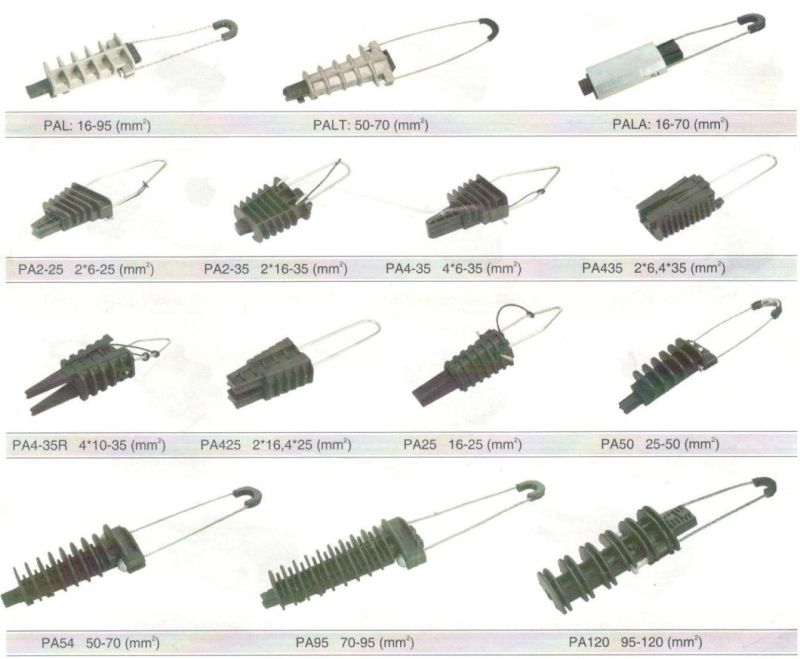

4-Cores Service Anchor Clamp PA25 Series

•The 4-cores anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation
• No additional tools required.
• Standard: NFC33-042

Item No.

Cross section(mm²)

Messsenger DIA.(mm)Breaking loadYJPA25A

4×(16-25)

4-8

2 KN

YJPA25C

4×(16-25)

4-8

2 KN

YJPA25CS

4×(4-35)

4-10

2 KN

Dead End Clamp YJPAP Series



Item No.

Cross section(mm²)

Messsenger DIA.(mm)Breaking loadYJPAP500

16-25

3-9

6 KN

YJPAP1500

50-70

11-14

10 KN

YJPAP2000

70-95

14-16

15 KN

Clamp YJPAS And YJPAT Series
YJPAS and YJPAT Series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.
•The wedge type clamp is self-adjusting.
• The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel.



Item No.

Cross section(mm²)

Messsenger DIA.(mm)Breaking loadYJPAS 216/435

2×16-4×35

4-11

4KN

YJPAT 235/50

2×(35-50)

8-11

15KN

YJPAT 435/50

4×(35-50)

11-14

15KN

YJPAT 470/954×(70-95)

14-16

40KN

YJPAT 450/1204×(50-120)

11-17

40KN
