Dust Control Right Angle Air Scrubbing Tangential-Flow Right-Angle Hollow Cone Spray Nozzle
CY Spraying & Purification Technology Limited- Material：Ss, Brass
- Connect Thread Size：1,8, 1,4, 3,8, 1,2
- Spray Pattern：Hollow Cone
- Spray Angle：Standard & Wide Angle
- Work Pressure：0.2-7bar
- Angle：51°-144°
Base Info
- Model NO.：hollow cone spray nozzle
- Screw Thread：Female ,Male
- Transport Package：Standard Export Carton
- Specification：ISO9001, ISO1401
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：500PCS Per One Day
Description
Basic Info.
Model NO. hollow cone spray nozzle Screw Thread Female /Male Transport Package Standard Export Carton Specification ISO9001, ISO1401 Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 500PCS Per One DayProduct Description

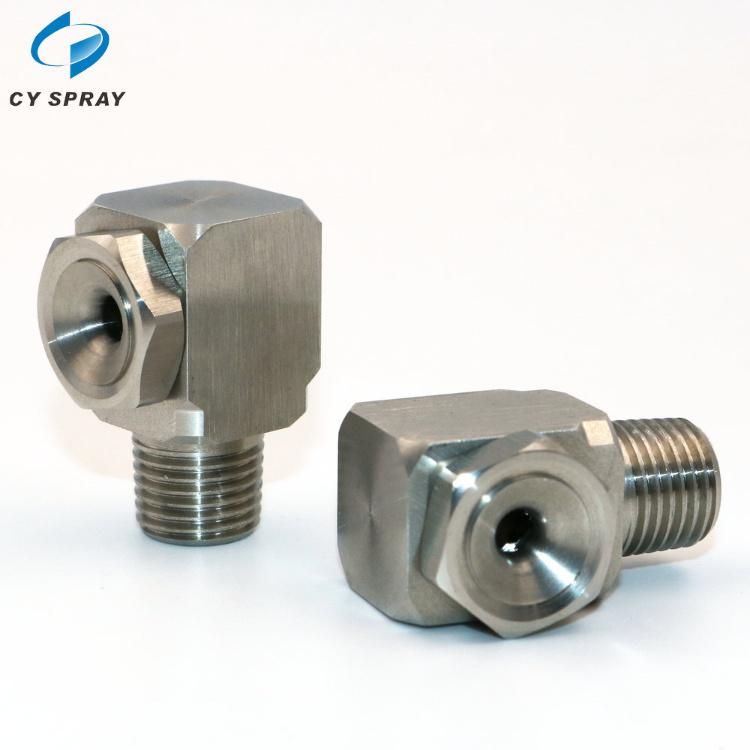

Dust Control Right Angle Air Scrubbing Tangential-Flow Right-Angle Hollow Cone Spray Nozzle

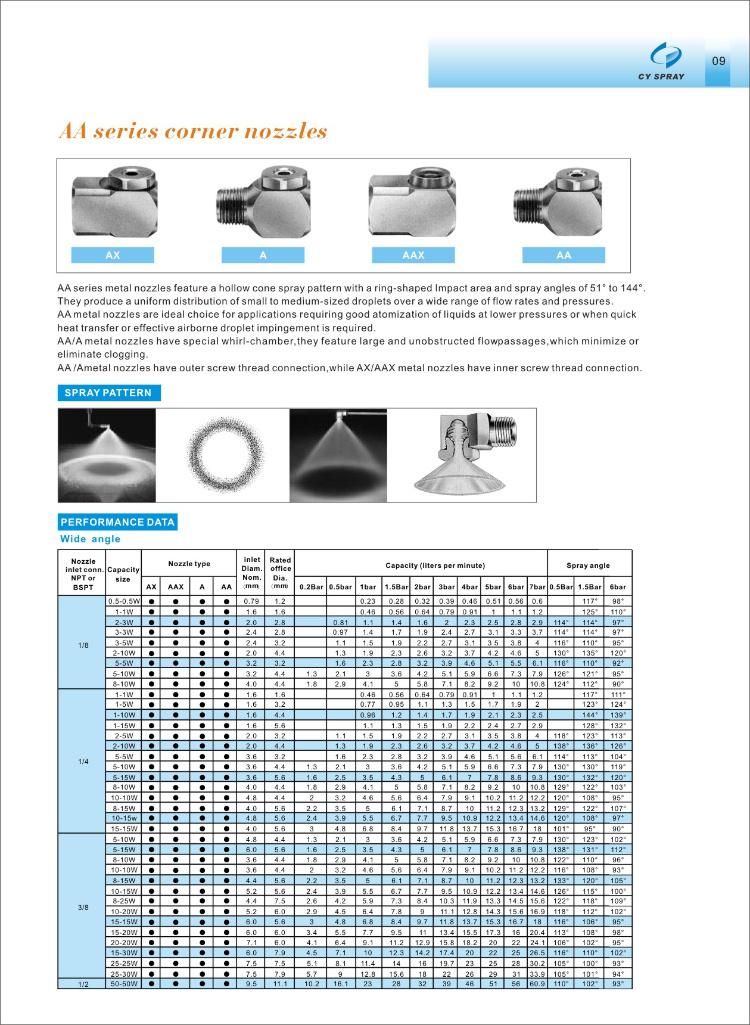

AA series metal nozzles feature a hollow cone spray pattern with a ring-shaped impact area and spray angles of 51- 144.
They produce a uniform distribution of small to medium-sized droplets over a wide range of flow rates and pressures.
AA metal nozzles are ideal choice for applications requiring good atomization of liquilds at lower pressures or when quick heat transfer or effective airborne droplet impingement is required.
AA/A metal nozzles have special whirl-chamber, they feature large and unobstructed flow
