Link Welded G80 Heavy Duty Chains for Hoist 6mm

Baoding Jiazhong Hoisting Machinery Plant
  • Usage:Drag Chain
  • Material:Iron
  • Surface Treatment:Oil Blooming
  • Feature:Heat Resistant
  • Chain Size:1,2"*3,32"
  • Structure:Welded Chain

Base Info

  • Model NO.:G80
  • Color:Multi-Colored
  • Working Load Limit:55.4t
  • Inside Min:7.5mm
  • Transport Package:Wooden Case, Steel Drum
  • Specification:CE GS ISO9001
  • Trademark:HAIYAN
  • Origin:Baoding China
  • HS Code:731582000
  • Production Capacity:1000000m,Year

Description

Basic Info.

Model NO. G80 Color Multi-Colored Working Load Limit 55.4t Inside Min 7.5mm Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

Link Welded G80 heavy duty chains for hoist 6mm
Link Welded G80 Heavy Duty Chains for Hoist 6mm
G80 load chain specifications:
Size(mm)Inside Width(mm)Outside Width(mm)Approx Weight KG/MW.L.L. TonTest Load KNB.L. KN
6 x 187.521.00.791.12745.2
7 x 219.024.51.071.53761.6
8 x 2410.028.01.382.04880.4
10 x 3012.535.02.203.276125
12 x 3615.042.03.104.6109181
13 x 3916.346.03.805.0128214
16 x 4820.056.05.638.0192320
16 x 4924.5 59.55.71 192 320

G80 load chain display:

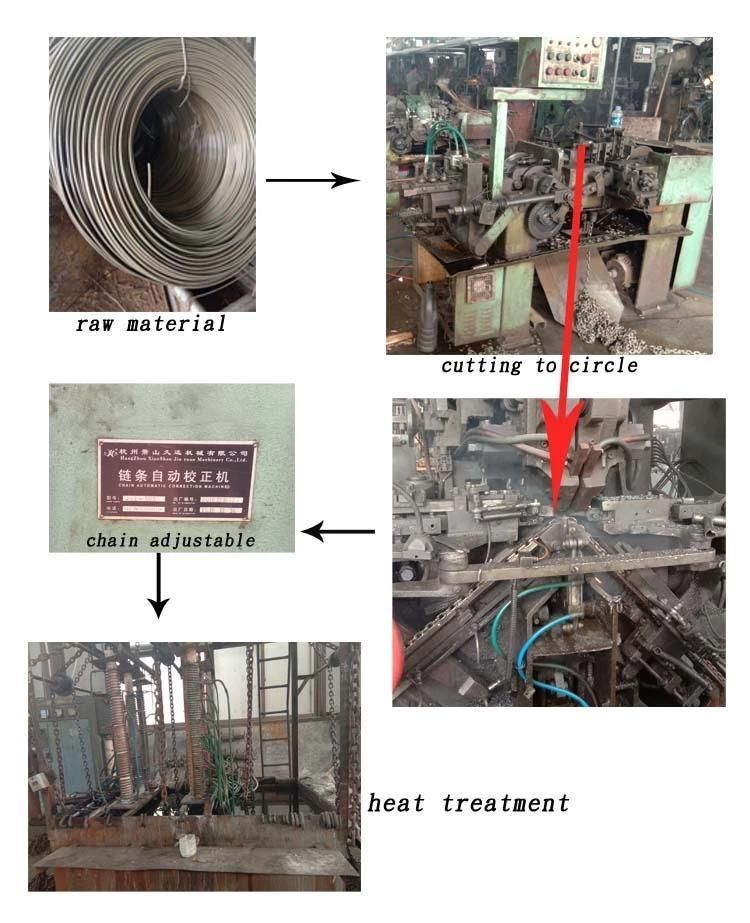

Link Welded G80 Heavy Duty Chains for Hoist 6mmLink Welded G80 Heavy Duty Chains for Hoist 6mmLink Welded G80 Heavy Duty Chains for Hoist 6mmG80 lifting chain production process
Link Welded G80 Heavy Duty Chains for Hoist 6mm
G80 lifting chain packing:
Link Welded G80 Heavy Duty Chains for Hoist 6mm

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.



As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our jiazhong lifting means,jiazhong hoist chains,jiazhong Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant the ideal choice for you.

For more any questions about the G80 load chain please feel free to contact us or send us email!
