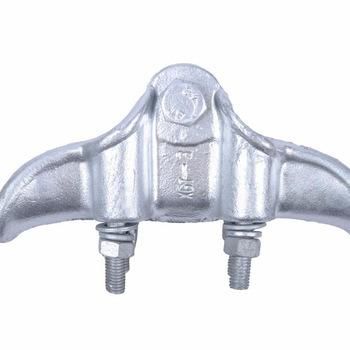

L&R Cgu Aluminium Suspension Clamp for Overhead Line Hardware

L&R ELECTRIC GROUP CO., LTD.
  • Usage：Heavy Duty Clamp
  • Structure：Suspension Clamp

Base Info

  • Model NO.：CGU-1 Type
  • Standard：Standard
  • Condition：New
  • Brand：L&R
  • Type：Cgu-1 Cgu-2 Cgu-3 Cgu-4
  • Rated Failure Load：40kn
  • Product Name：Cgu Suspension Clamp
  • Certification：ISO 9001
  • Transport Package：Standard  Export  Package
  • Specification：ISO9001: 2008
  • Trademark：L&R or according to customers requirements
  • Origin：Wenzhou, Zhejiang, China
  • Production Capacity：10000PCS,Month
  • Package size per unit product：40.00cm * 36.50cm * 11.50cm
  • Gross weight per unit product：1.400kg

Description

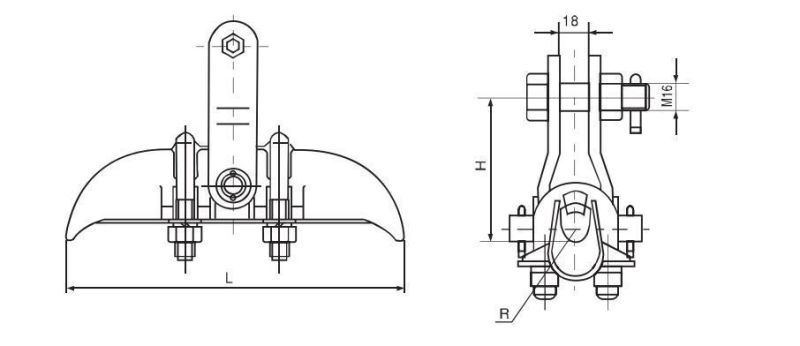

TypeApplicable conductor dia(mm)Dimensions(mm)Rated Failure load (kN)Weight(kg)HLRCGU-15.0-7.0821804.0401.4CGU-27.1-13.0822007.0401.8CGU-313.1-21.010222011.0402.0CGU-421.1-26.011025013.5403.0
L&R Cgu Aluminium Suspension Clamp for Overhead Line Hardware

About Us
Zhejiang LAWRENCE ELECTRIC CO.,LTD is a company specializing in the production of composite zinc oxide arrester, insulator, drop out fuse,outdoor isolating switch,vacuum circuit breakers high-tech science and technlogy enterprise.
We are specialized in power transmission and distribution, just let me know if you need anything in the product range. We will try our best to be helpful.
