• Model NO.：VD
• Color：Solid Color
• Transport Package：Plywood Case
• Specification：0.5t-10t
• Trademark：LIFTOR
• Origin：Jiangsu, China
• HS Code：84251100
• Production Capacity：60000,Year

HS-VT VITAL Type Chain Block Hoist parameter as belows:

Model

HS-VT-1/2

HS-VT1

HS-VT1 1/2

HS-VT2

HS-VT3

HS-VT5

HS-VT10

Capacity(t)

0.5

1

1.5

2

3

5

10

Lifting Height(m)

2.5

2.5

2.5

3

3

3

3.5

Test load(t)

0.75

1.5

2.25

3

4.5

7.5

15

Min Distance between hooks(mm)

285

315

340

380

475

600

700

Chainpull to lift full load(N)

25

33

34

34

35

39

41

No. of  load chain fall lines

1

1

1

1

2

2

4

Diameter of  load chain(mm)

6.3

6.3

7.1

8

7.1

9

9

N.W(kg)

8.4

11

13.5

21

22

40

77

G.W(kg)

9.4

12

14.5

22

23

41.5

85

Packing measurement L × W × H(cm)

30×17×32

30×17×32

30×17×32

28×19×23

30×17×32

40×20×34

62×50×26

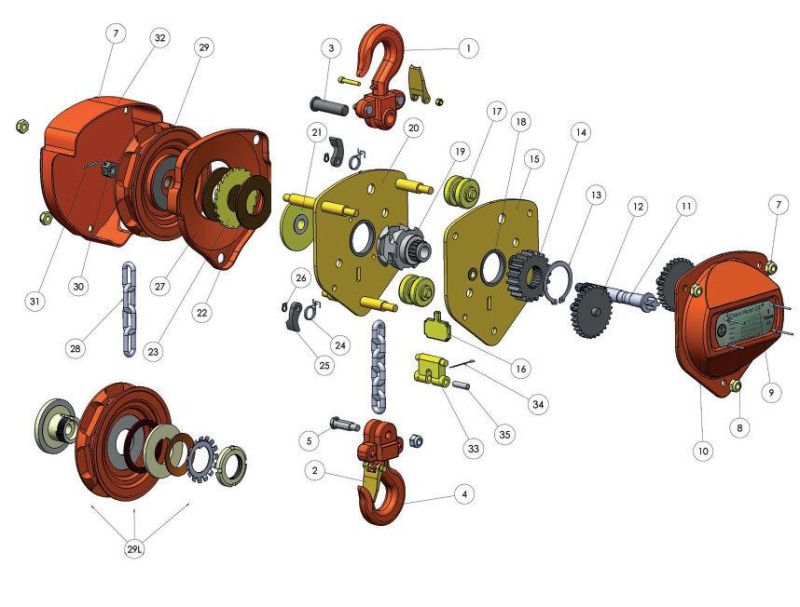

Chain Block Details:

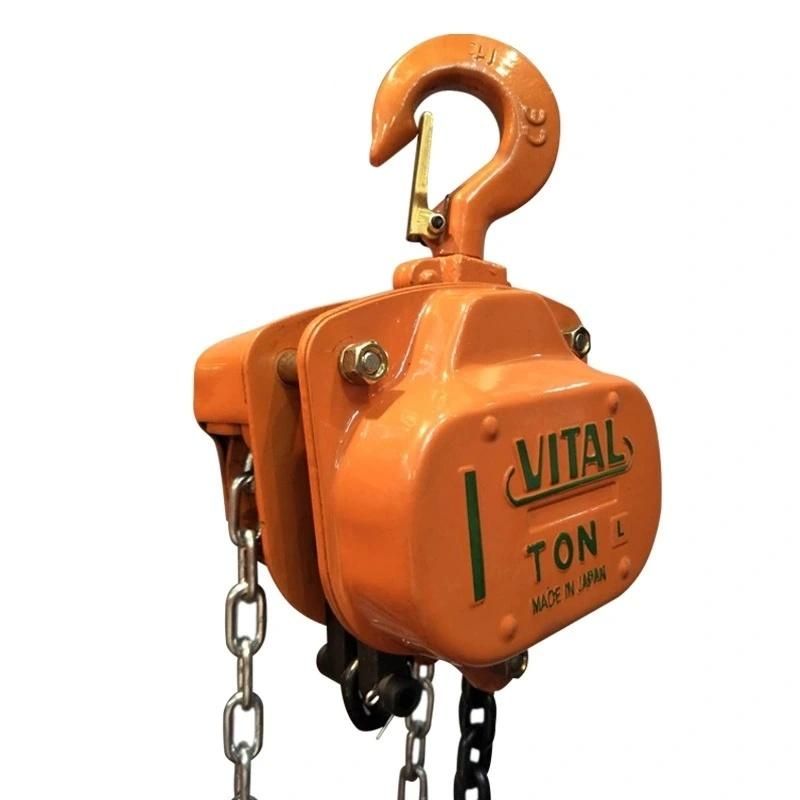

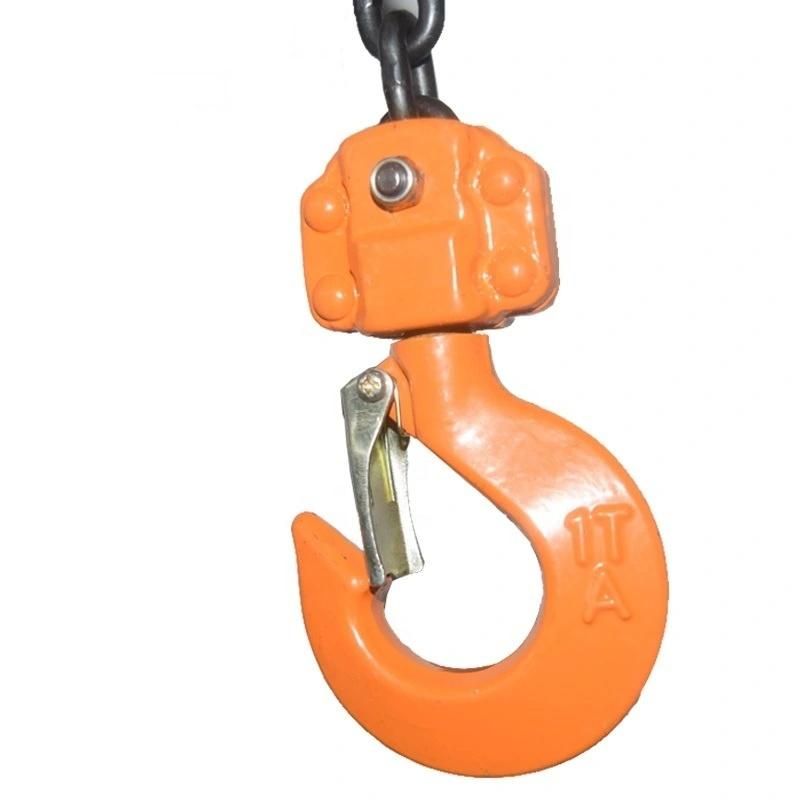

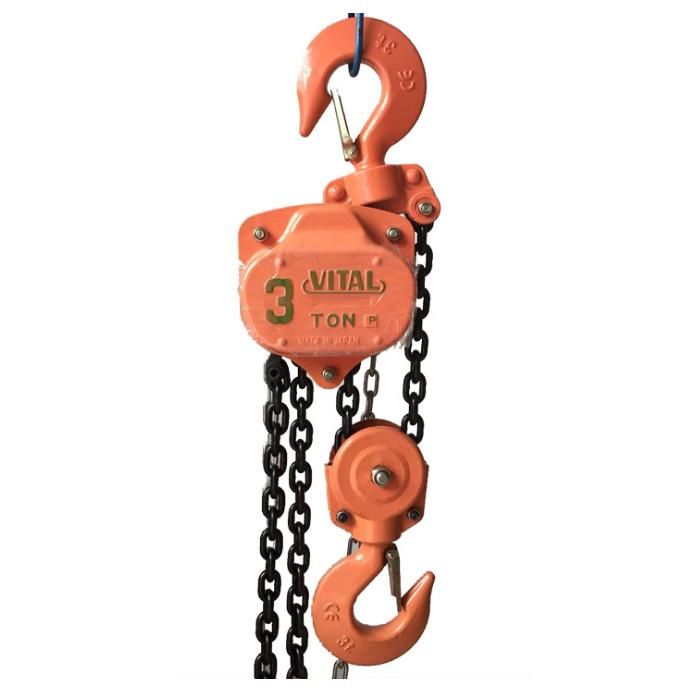

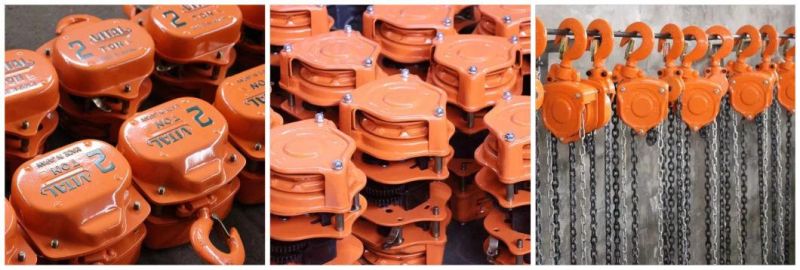

Chain Block Pictures:

Package:

Why choose us?

1.We are your one-stop service and solutions provider,certified by ISO9001 and TUV

2. Exporting to Europe,USA,Australia,Mid East,Southeast Asia and Africa.

3. 100+ containers per month.Turnover more than US Dollar around40 millions in both 2016/2017.

4.Group company established in 1958 and be Globalsource member for more than 15 years.

5. Strict quality control and with long term quality inspection contract with SGS.

6. Products is underwritten by the China Property Insurance Company(PICC) as quality assurance for customer.

7. Passed 3rd party audit arranged by several top 500 company and be their long term contract supplier.

8.Pre-shipment quality inspection for customer by picture/video.

9. Meet Customized requirement on design and logo.

10. Small order acceptable.
