• Model NO.：LT-JCQ
• Customized：Customized
• Color：Metallic
• Size：Common
• Product Name：Triple Cutting Torch Holder
• Type：Mechanical Height Controlling Type
• Applicable to：CNC Machine
• Angle Adjustment Range：-45~+45 Degree
• Cutting Thickness：16~50mm
• Transport Package：Carton, Wooden Case
• Specification：CE ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. LT-JCQ Customized Customized Color Metallic Size Common Product Name Triple Cutting Torch Holder Type Mechanical Height Controlling Type Applicable to CNC Machine Angle Adjustment Range -45~+45 Degree Cutting Thickness 16~50mm Transport Package Carton, Wooden Case Specification CE ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

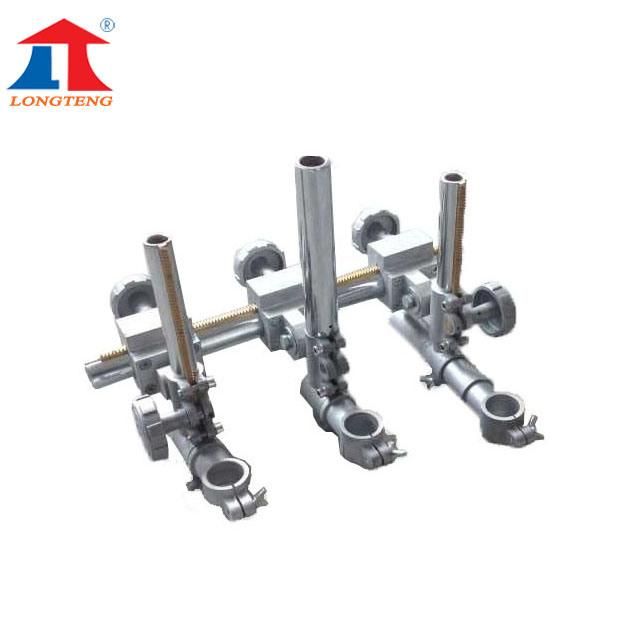

Height Controlling Triple Cutting Torch Holder for CNC Cutting Machine


1)Quick Detail:
1. Machine triple cutting torch holder
2. Connecting the cutting torch with the portable CNC cutting machine
3. Material: Aluminum

2)Description:
1. Applicable to WLX machine-use cutting torch
2. Using hand wheel to adjust rise and fall
3. Using hand wheel to adjust horizontally moving distance.
4. Angle scale can show angle of the machine-use cutting torch.

1>Structural Features
1. It equips with wheel device and has the mechanical height controlling function.
2. Use for cutting straight line V/Y/X/K type beveled edges.
3. Angle adjustment range: ± 45°
4. Cutting thickness range: 16-50mm
5. Angle error: ± 5°
6. The minimum blunt edge for K type beveled edges: 3 mm

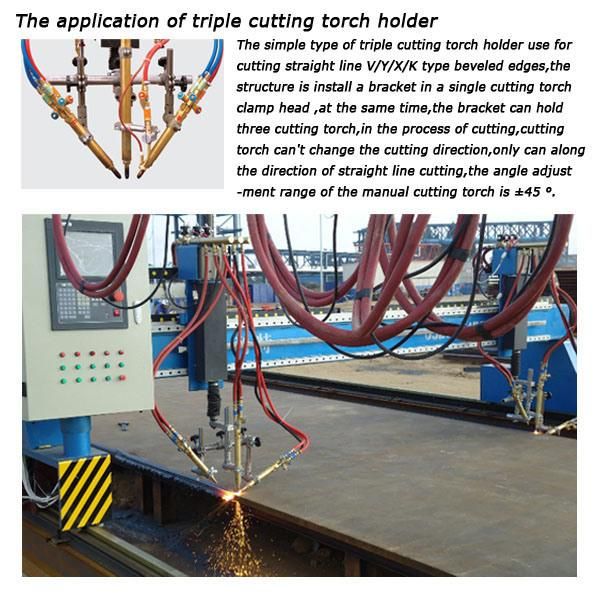

3)Applications:
It is an accessory which connecting the cutting torch with the portable CNC cutting machine.



4)Competitive Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure Ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable


Model Number	LT-JCQ-Triple
Brand Name	Longteng, OEM
Place of Origin	Wuxi, China (Mainland)
Certification	CE,ISO
Loading Port	FOB Shanghai
Payment Terms	T/T, L/C, Western Union
Adjustable Range	±45°
Cutting Thickness	16~50mm
Angle Error	±5°
Mini blunt edge for K type beveled edges	3mm
Applicable to	CNC
Function	Height Controlling
