DIN1480 Eye&Eye Open Body Turnbuckle
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Type：Eye & Eye Turnbuckle
- Usage：Marine, Outdoor, Household, Connection
- Installation：External
- Condition：New
- Color：Silver
Base Info
- Model NO.：DECOR
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
- Turnbuckle：Rigging Screw
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Sizes：From 5mm to 25mm
- Drawing：CAD
- Certification：SGS&TUV
- Production Equipment：Latest CNC Machine
- Service：One Stop Shopping
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From 5mm to 25mm or As Per Your Requests
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：100, 000PCS,Month
Description
Material
stainless steel 316 or 304
Surface finish
Highly Polished
Color
Nickel White
Standard
Metric and UNF
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread
coarse, fine
Used

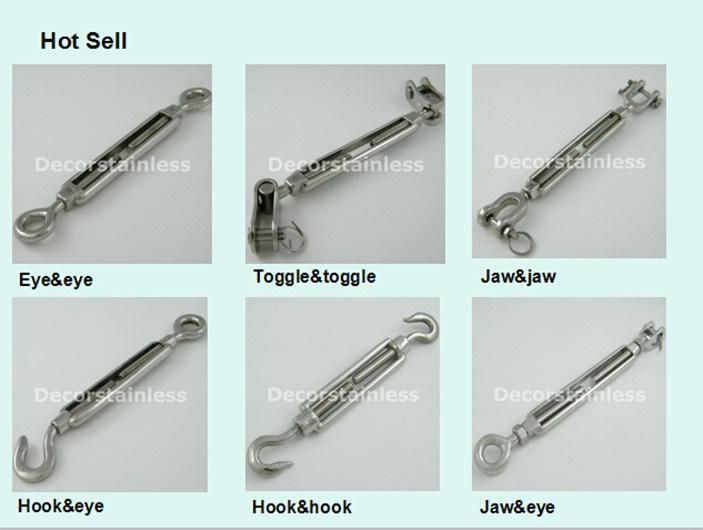

These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends.
| Dimension | Size G | A | L | L1 |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 5 | 5 | 8 | 70 | 100 |
| 6 | 6 | 10 | 110 | 145 |
| 8 | 8 | 12 | 110 | 150 |
| 10 | 10 | 16 | 125 | 180 |
| 12 | 12 | 18 | 125 | 185 |
| 16 | 16 | 22 | 170 | 250 |
| 20 | 20 | 25 | 200 | 300 |
| 25 | 25 | 28 | 255 | 400 |
Q: What is material you can supply?
A: Stainless steel 316 or stainless steel 304
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance upon copy of B/L.
If you have another question, pls feel free to contact us.
