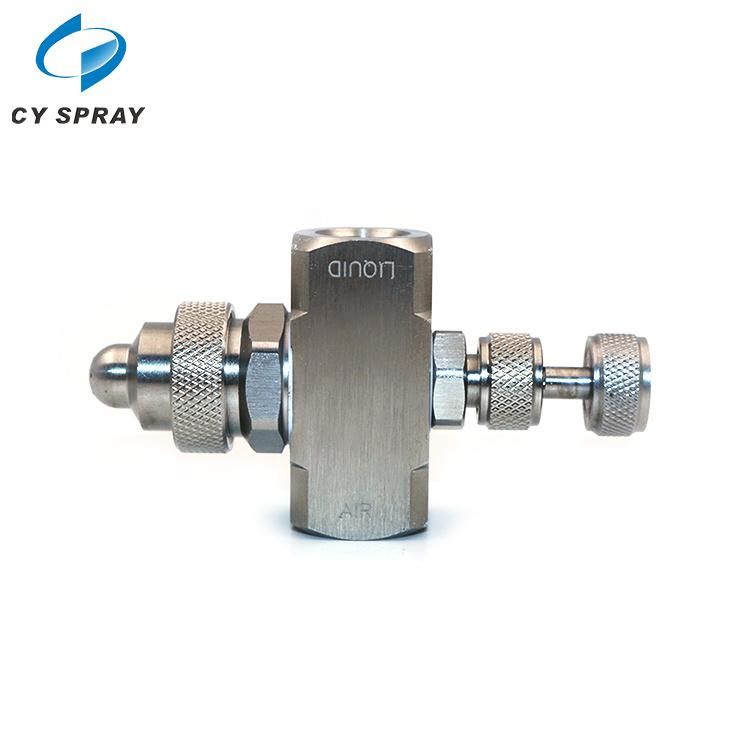

Dx 1/8 Size One Mixed Air Atomizing Nozzles
CY Spraying & Purification Technology Limited- Connect Thread Size：1,8", 1,4"
- Material：Brass, Ss, SS304
- Brand Name：Cy Spray
- Advantage：0-50um Drop Size,Finest Spray
- Spray Angle：30-70 Degree,We Can Design It
- Spray Shape：Flat Fan ,Wide Angle ,Round
Base Info
- Model NO.：DX
- Application：Dust Removal , Air Control, Dust Control,Humidifi
- Working Pressure：0.7-6bar
- Product Name：Water Spray Nozzles
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description

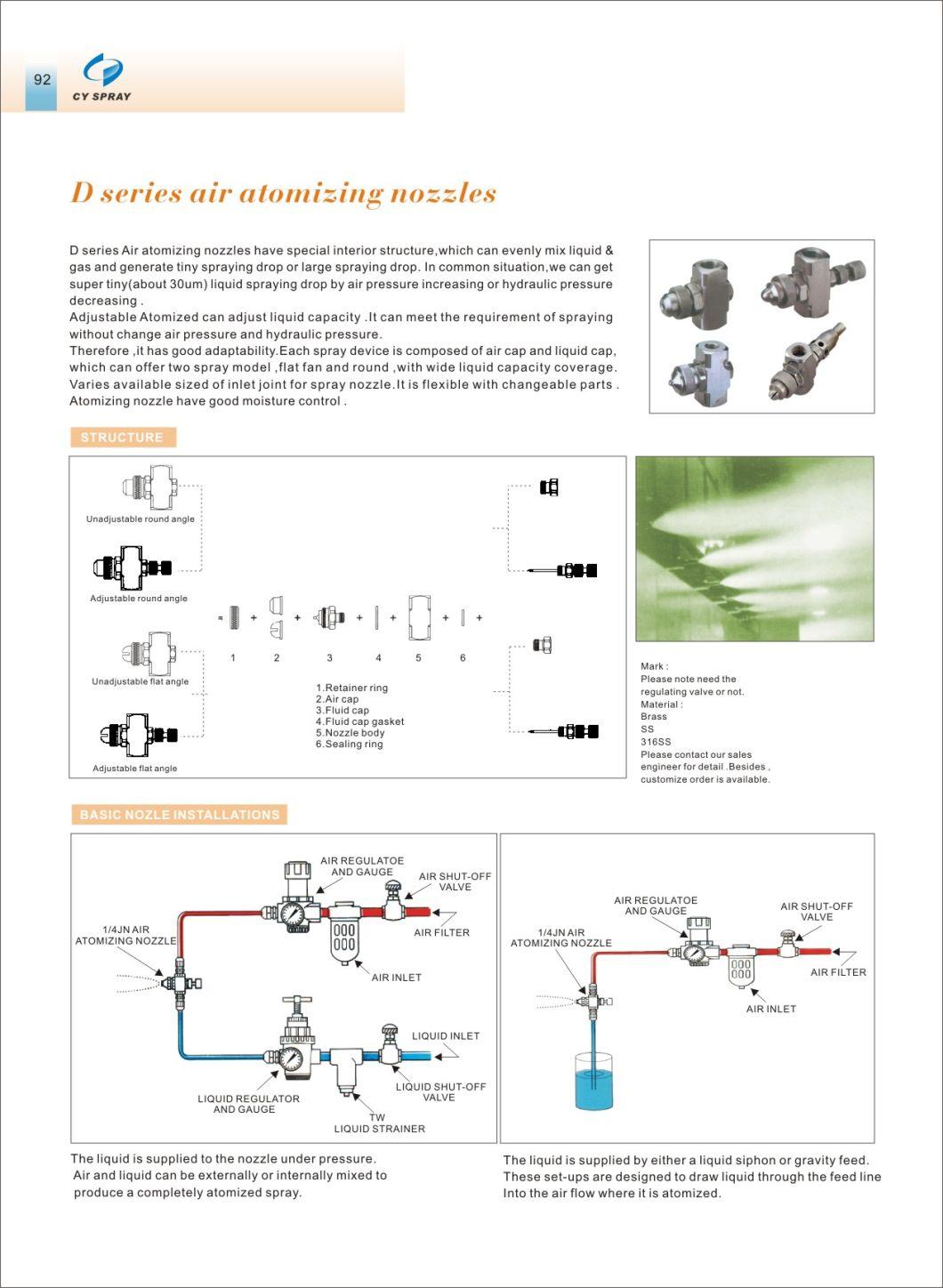

D series Air atomizing nozzles have special interior structure ,which can evenly mix liquid &gas and generate tiny spraying drop or large spraying drop. In common situation,we can get super tiny(about 30um) liquid spraying drop by air pressure increasing or hydraulic pressure decreasing.
Adjustable Atomized can adjust liquid capacity .It can meet the requirement of spraying without change air pressure and hydraulic pressure.Therefore ,it has good adaptability. Each spray device is composed of air cap and liquid cap,
which can offer two spray model ,flat fan and round ,with wide liquid capacity coverage.Varies available sized of inlet joint for spray noze.ts fexile with changeable parts.
Atomizing nozzle have good moisture control.
Spray Pattern :

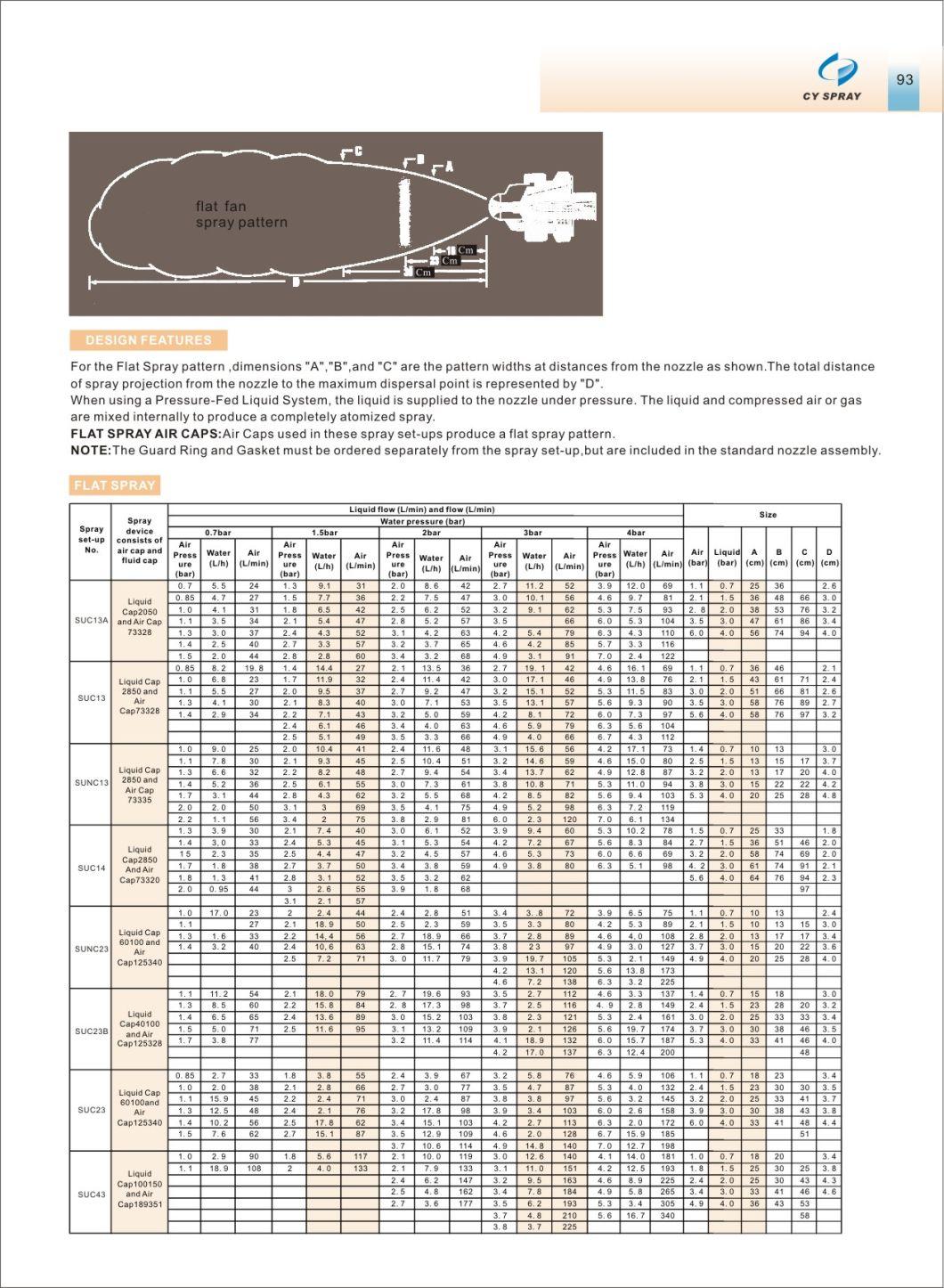

Flat fan
Full cone

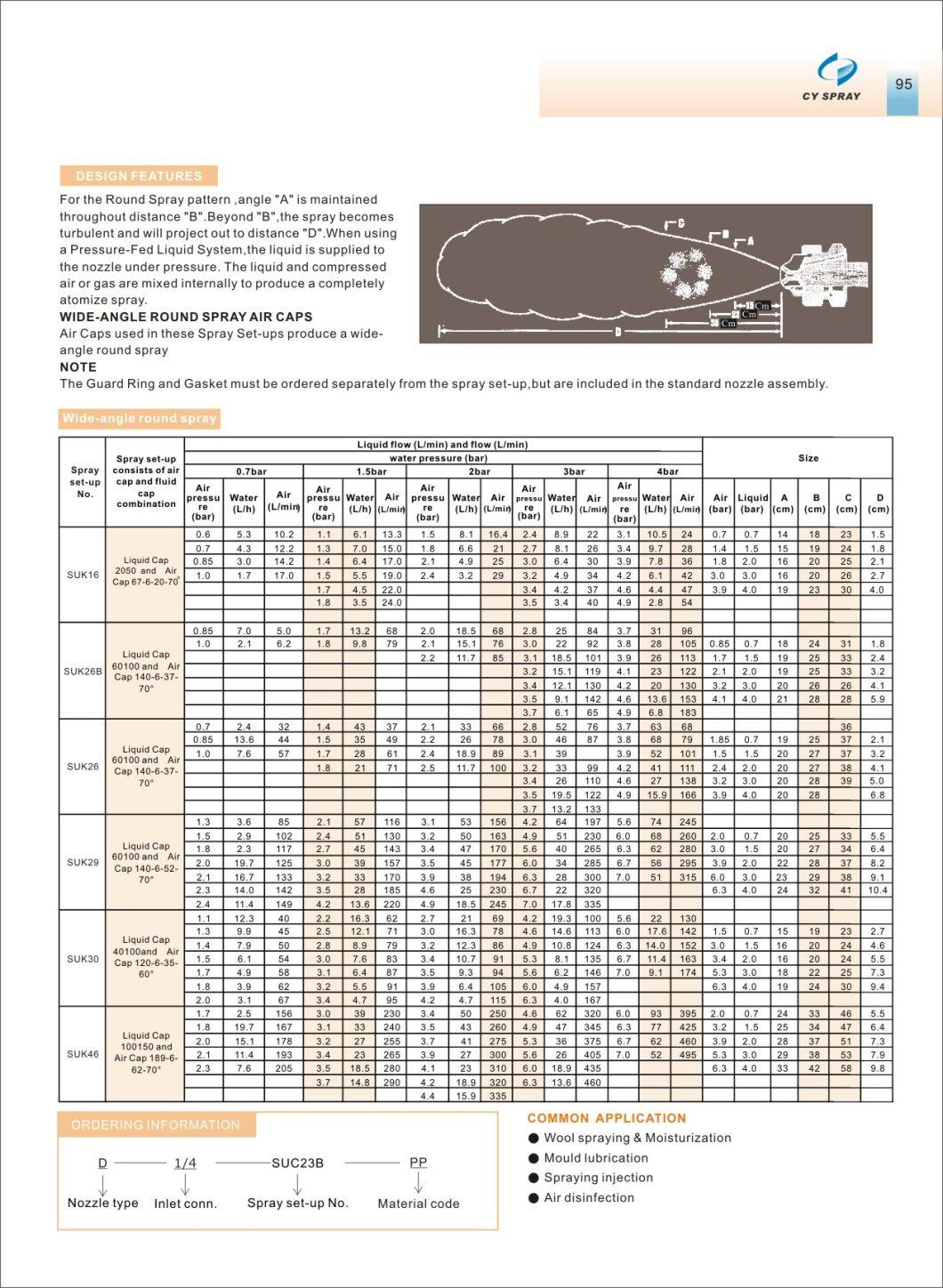

Wide angle full cone
