Hardware Accessories

En818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mm

Baoding Jiazhong Hoisting Machinery Plant
  • Usage:Drag Chain
  • Material:Alloy
  • Surface Treatment:Baking Paint
  • Feature:Heat Resistant
  • Chain Size:1,2"*3,32"
  • Structure:Welded Chain

Base Info

  • Model NO.:G80
  • Color:Multi-Colored
  • Working Load Limit:55.4t
  • Colour:Black
  • Grade:80
  • Chain Dia:4mm-26mm
  • Transport Package:Wooden Case, Steel Drum
  • Specification:CE GS ISO9001
  • Trademark:HAIYAN
  • Origin:Baoding China
  • HS Code:731582000
  • Production Capacity:1000000m,Year

Description

Basic Info.

Model NO. G80 Color Multi-Colored Working Load Limit 55.4t Colour Black Grade 80 Chain Dia 4mm-26mm Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

EN818-2 G80 black oxide hoist chain 10 mm 13 mm 16 mm  1.Sizes: 6mm to 24mm, alloy steel  20Mn2
2.Length:any length is ok
3.Surface: self-color,polishing,black,plastic coating,hot-dip,zinc plated,etc.
4.Safety factor:4:1
5.Advantage: resistant to corrosion &rust; durable.
6.OEM is welcome
7.Equipment: automatic knitting chain machine, automatic welding machines, automatic correction machine,
heat treatment machine,loading test machine,polish machine
8.Marking: usually mark G80 every 6 chain,we can also do as required.
9. We also can make the non-standard chain according to the clients' requirements.

G80 lifting chains specifications as belows:
Size(mm)Inside Width(mm)Outside Width(mm)Approx Weight KG/MW.L.L. TonTest Load KNB.L. KN
6 x 187.521.00.791.12745.2
7 x 219.024.51.071.53761.6
8 x 2410.028.01.382.04880.4
10 x 3012.535.02.203.276125
12 x 3615.042.03.104.6109181
13 x 3916.346.03.805.0128214
16 x 4820.056.05.638.0192320
16 x 4924.5 59.55.71 192 320

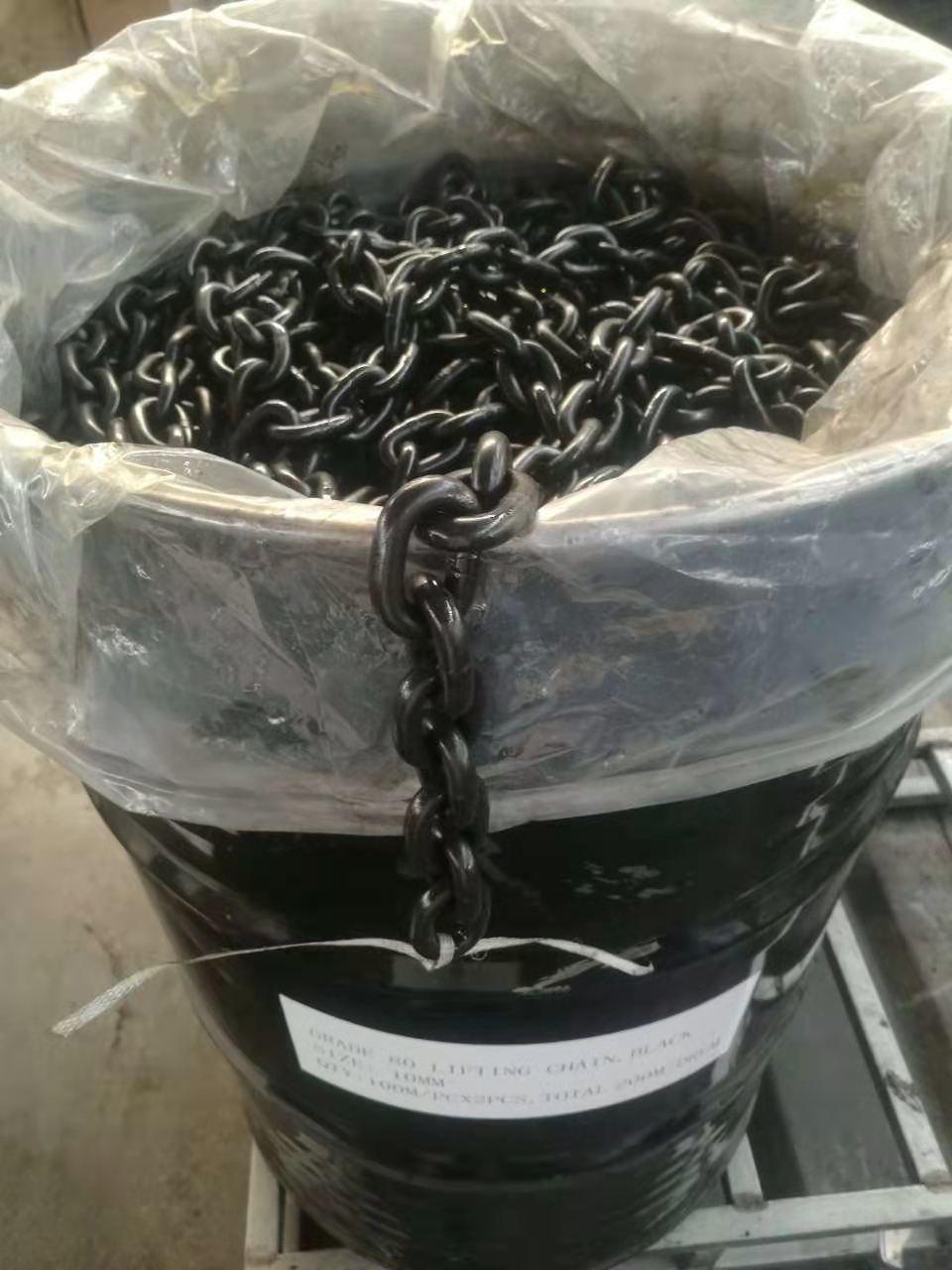

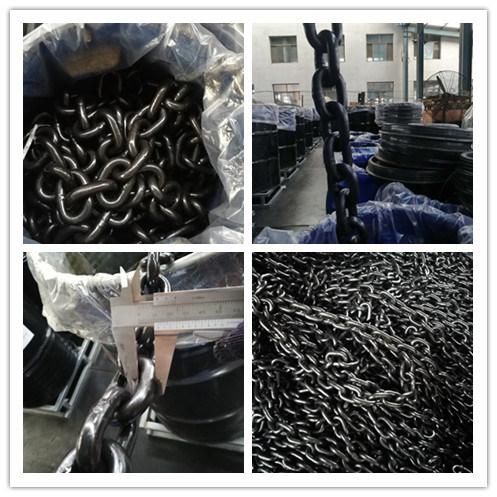

Pics of G80 black lifting chains:

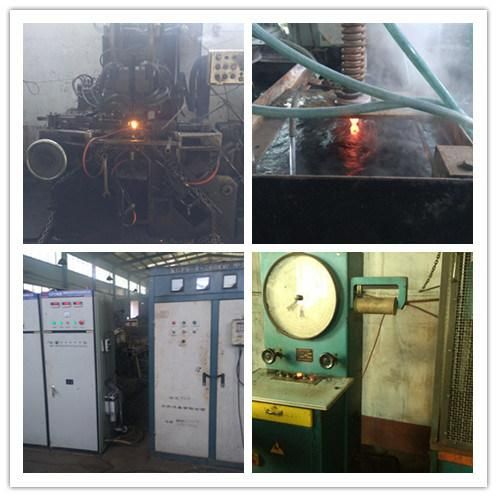

En818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mmEn818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mmEn818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mmProuction flow:
we use high quality manganese steel material, annealing, automatic knitting , automatic welding , automatic correction , heat treatment ,loading test ,polish,surface treatment,export packing
En818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mmEn818-2 G80 Black Oxide Hoist Chain 10 mm 13 mm 16 mmWe specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

We are looking forward to making business with you!
