• Model NO.：WF-JF
• Size：Custom Size
• Qualiy Certification：ISO9001:2008, AISI, Ce, Leo, SGS
• Delivery Time：30 Days After Payment
• Sample Time：10-20 Days for Sample
• Quation Leadtime：Within 24 Hours
• Business Type：Factory
• Name：Press Brake Dies
• Machining Service：Your Logo, Charactor, Trade Name Number
• Quality：DIN, Ce, BS, ASTM
• Test：in House and Third Party
• Transport Package：Plywood Box
• Specification：SGS, CE, GB, DIN, ISO9001: 2008, ASTM, EN124, CE
• Trademark：ShengAo
• Origin：Weifang, Shangdong, China
• HS Code：87089910
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. WF-JF Size Custom Size Qualiy Certification ISO9001:2008, AISI, Ce, Leo, SGS Delivery Time 30 Days After Payment Sample Time 10-20 Days for Sample Quation Leadtime Within 24 Hours Business Type Factory Name Press Brake Dies Machining Service Your Logo, Charactor, Trade Name Number Quality DIN, Ce, BS, ASTM Test in House and Third Party Transport Package Plywood Box Specification SGS, CE, GB, DIN, ISO9001: 2008, ASTM, EN124, CE Trademark ShengAo Origin Weifang, Shangdong, China HS Code 87089910 Production Capacity 50000PCS/Month

Product Description

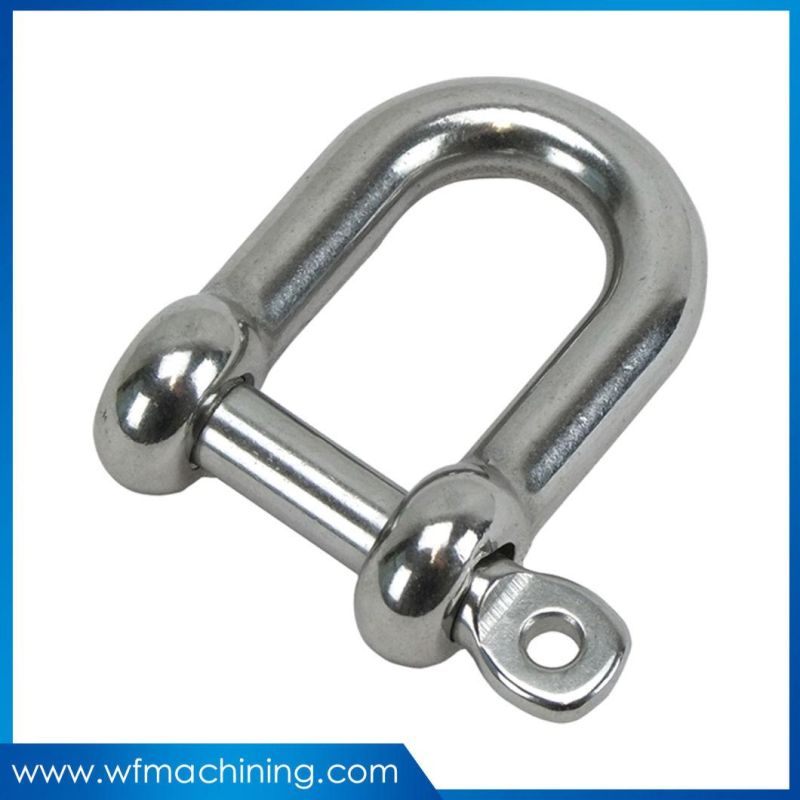

AISI304/316 US Type DEE Shackle

Molds/dies/tools for bending steel

1. ISO9001: 2000 certification
2. TUV (PED 97/23/EC & AD2000 aa W0/TRD 100) certification
3. Professional OEM manufacturer
Forging: We can provide forged ring, open-die forging, forged shaft, forged bush, forged shape, drop forging, precision forging, hot-pressed part, upset forging, hot-upset part, forging casting, forged disc, perforated disc.


Press Brake Tools/Die for bending machine/ bending machine tools/bending machine dies

The press brake tools of CNC bending machine has a wide application with different requirement. It is widely used in sheet metal bendings, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles, and other industries.




The CNC bending machine uses a mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing.

So the tools of bending machine need high hardness and accuracy so that it can have a wide range of possible bending materials, apart from that the upper and lower molds must fit well and firmly.


Firstly need to choose the right raw materials of metal. T10,55SICR,42CRMO, and other good steel, producing with forging process, CNC machining, Heat treatment, and accurate grinding.

42CRMO is a normal raw material in this field, "42CRMO" is the mark name in China, and it also called 42CrMo4, SCM440, 4140, 1.7225. Usually, 10-15mm thicker than finished tools, and the knife is 5mm thicker. This working allowance is enough to reach tolerance requirements.

Forging process, repeatedly forging. We called it cold forging or drop hammer forging.


Heat Treatment
quenching + tempering + 860 °C Oil quenching + 390°C Tempering
The role of heat treatment is to improve the mechanical properties of the material, eliminate residual stress and improve the machinability of the metal. Hardness can reach 47- 52+/-2 HRC. Bending edge used high-frequency heat treatment to make sure high rigidity and long tool working life. (The HRC is available by changing the temperature, based on your special needs on that)

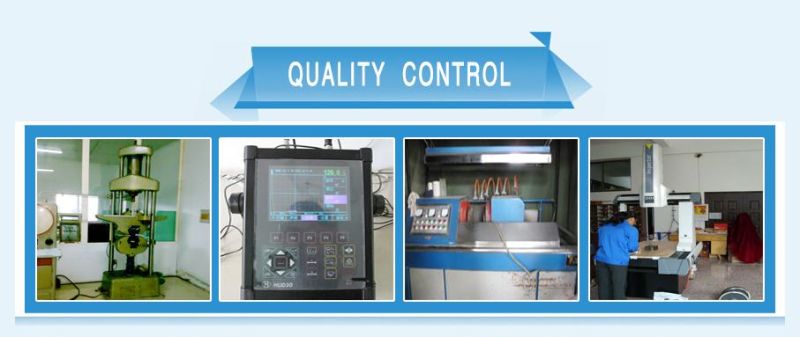

After that, we have a strict quality control system, ISD9001:2008, also we have in house testing



Apart from that, we need the tools delivered to our clients in good condition, and we always willing to find the best solution according to our client's target and weather of their local.



Welcome to contact us to work with you



FAQ
Q: Why choose Shengao product?
A: We Shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.

Q: How can I get a quotation?
A: Please send us information for a quote: drawing, material, weight, quantity, and request.

Q: If we don't have the drawings, can you make drawings for us?
A: Yes for sure, please send us the samples. We need about 2-5 days.

Q: When can I get my sample/products?
A: Tooling need about 20 days, production need roughly 35 days.

Q: Do you provide OEM Service?
A: Yes, we provide OEM Service, give us drawings and specifications, and we will manufacture accordingly.

Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
30-50% TT deposit on order, the balance pay against BL copy.
