• Size：3-40mm (DIN741 Malleable Clip)
• Surface：Electric Galvanized Cage Clips for Wire
• Type：DIN741 Wire Rope Clips
• Brand Name：Ls (DIN741 Malleable Clip)
• Process：Casting
• Place of Origin：Shandong, China (Mainland)
• Dlivery Time：About 15-30 Days After Confirmed The Order
• Packaging：PP Bag Then on Pallet(Carton on Pallet)
• Keyword：DIN741 Malleable Clip
• Transport Package：Carton or Bag, Then in Pallet.
• Specification：3-40mm (Din741 Malleable Clip)
• Trademark：customized
• Origin：Shandong, China
• HS Code：7326909000
• Production Capacity：1000 Tons Per Month

Basic Info.

Size 3-40mm (DIN741 Malleable Clip) Surface Electric Galvanized Cage Clips for Wire Type DIN741 Wire Rope Clips Brand Name Ls (DIN741 Malleable Clip) Process Casting Place of Origin Shandong, China (Mainland) Dlivery Time About 15-30 Days After Confirmed The Order Packaging PP Bag Then on Pallet(Carton on Pallet) Keyword DIN741 Malleable Clip Transport Package Carton or Bag, Then in Pallet. Specification 3-40mm (Din741 Malleable Clip) Trademark customized Origin Shandong, China HS Code 7326909000 Production Capacity 1000 Tons Per Month

Product Description

Good quality din741 wire rope clamp

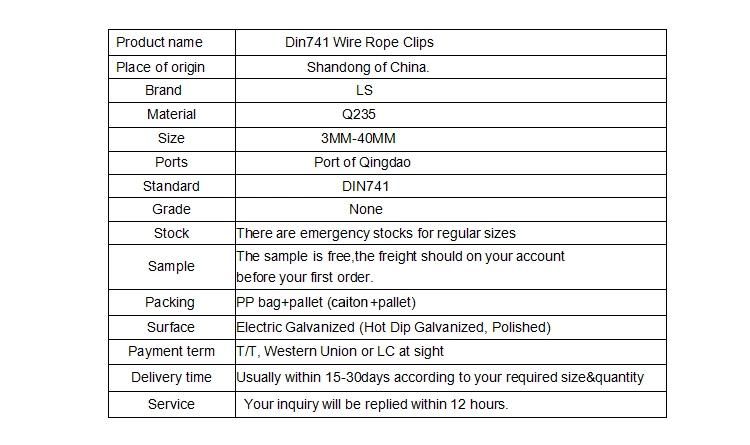

PRODUCT DETAILS
Service: Your inquiry will bereplied within 12 hours.

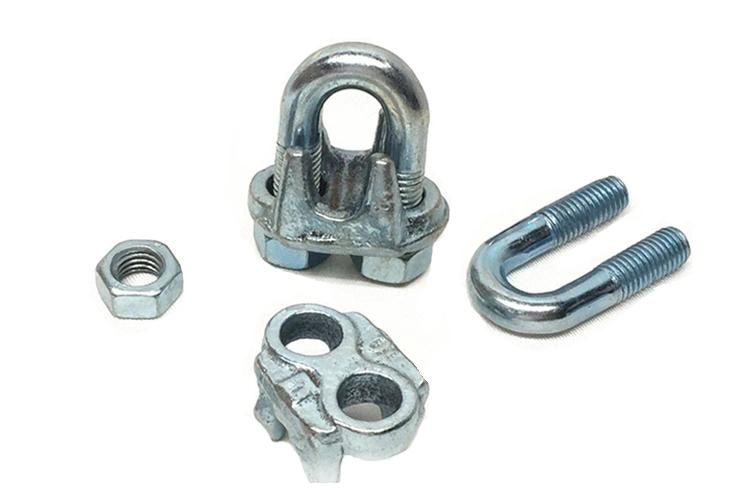

Product name: DIN741 Malleable Wire Rope Clip
Place of origin: Shandong, China.
Brand: LS
Material; Malleable(Carton steel, Alloy Steel, Stainless steel304/316).
Size: 3-40MM
Surface: Electro Galivanized(Hot Dip Galivanized, Polished).
Standard: DIN741
Grade: None
Stock: There are emergency stocks for regular sizes.
Sample: The sample is free, the freight should on your account before
Your first order.
Packing method: PP bag+pallet(Catton+pallet).
Payment term: 30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.
Delivery time; Usually within 15-30days according to your required size&quantity.
Using range: Fastener in Industry and Construction; Suitable for wire rope.

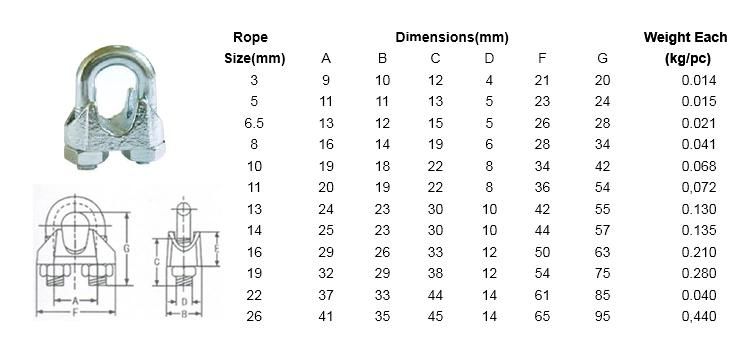

size	in	A	B	C	D	E	F	G	100/WTkg
mm	1/8	9	10	12	4	10	21	16	1.4
3	3/16	11	11	13	5	10	23	19	1.5
5	1/4	13	12	15	5	11	26	23	2.1
6.5	5/16	16	14	19	6	15	30	28	4.1
8	3/8	19	18	22	8	17	34	34	6.8
10	7/16	20	19	22	8	18	36	36	7.2
11	1/2	24	23	30	10	21	42	45	13
13	9/16	25	23	30	10	22	44	47	13.5
14	5/8	29	26	33	12	26	50	51	21
19	3/4	32	29	38	12	30	54	63	28
22	7/8	37	33	44	14	34	61	71	40
26	1	41	35	45	14	37	65	81	44
30	11/8	48	37	50	16	43	74	94	66
34	11/4	52	42	55	16	50	80	104	85
40	11/2	58	45	60	16	55	88	124	104

Wire rope clips
Wire rope clips are widely used in various industries.
Fastener in Industry and Construction; Suitable for wire rope.
We produce best and professional service. We are friend of factories, and hope will be your friend and partner on business.
