• Model NO.：NXL 120-240,4
• Applicable Cable Cross Section Area：120 to 240mm²
• Breaking Load：15kn
• Transport Package：100PCS,Bag, Export Standard Packing
• Specification：CE
• Trademark：JMA
• Origin：China
• HS Code：85381090
• Production Capacity：100, 000 PCS Per Month

Basic Info.

Model NO. NXL 120-240/4 Applicable Cable Cross Section Area 120 to 240mm² Breaking Load 15kn Transport Package 100PCS/Bag, Export Standard Packing Specification CE Trademark JMA Origin China HS Code 85381090 Production Capacity 100, 000 PCS Per Month

Product Description

Type: NXL series
Applicable cable cross section area: 120 to 240mm²
Breaking load: 15kN
Nice weather-resistant
Easy to install
Packaging: Export standard cardboard cartons and woodenpallets

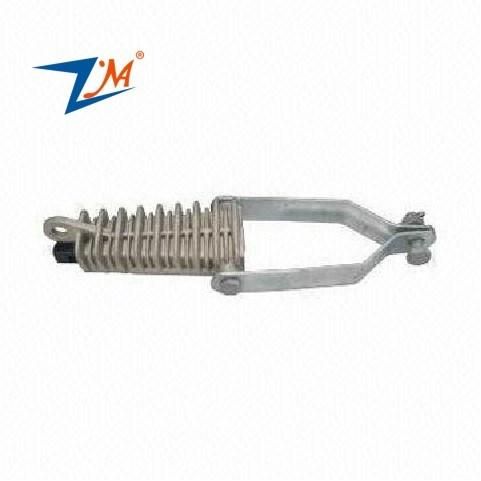

NLL series strain clamps is apply for the overhead line insulated Al conductor or Al bare conductor. It fix in the corner or terminal of the insulators to make the conductor fixed and tighten.


The strain clamp without any magnetic hysteresis loss and good at the energy-conservation effect.
Link fitting are used to link clamps to insulator, or to link insulator and ground wire clamp to tower arms or substation structures. Link fitting have special type and common type in accordanle with mounting condition. The special type includes the ball-eye and soceket-clevis linking with insulator. The common type is usually pin connected tape. They have different grades in according to the load and are exchangeable for the same grade.
Feature: The body is forgeable cast iron or cast steel. The spring pin is bronze or stainless steel work, close pin is stainless steel
