• Model NO.：JBC50-240
• Body Material：Anti UV Thermoplastic
• Cable Main Line：50-240mm2
• Cable Tap Line：50-240mm2
• Bolt：2
• IEC Standard：Nfc33-041
• Under Water Test Voltage：6kv
• Suitable Cable Use：ADSS or ABC Cable
• Connecting Teeth：Tinned Copper or Aluminum
• Transport Package：50PCS,Carton
• Specification：CE
• Trademark：ZHC
• Origin：China
• HS Code：85369090
• Production Capacity：3000000,PCS Month

Basic Info.

Model NO. JBC50-240 Body Material Anti UV Thermoplastic Cable Main Line 50-240mm2 Cable Tap Line 50-240mm2 Bolt 2 IEC Standard Nfc33-041 Under Water Test Voltage 6kv Suitable Cable Use ADSS or ABC Cable Connecting Teeth Tinned Copper or Aluminum Transport Package 50PCS/Carton Specification CE Trademark ZHC Origin China HS Code 85369090 Production Capacity 3000000/PCS Month

Product Description

Free Samples Are offered!

About US:

Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug , aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.


1.We already get the certificate of ISO9001, CE, SGS , ROHS
2.We have 10 years of manufacture and 8 years exporting experience.
3.We have completely sales service system, ensure every detail is going smooth.
4.We have new designed products each year by our R&D Department.
5.Perfect testing system ensure each product is qualified.
6.We have a good reputation in Russia,Spain, India, Thailand, south American,Mid-east market and so on.

How to Order?
1. Please let us know what kind of model .
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed. .

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.

Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .

PISEA 003-1:2001 Low voltage cable system for undergroud electrical distribution

These waterproof insulation piercing connectors are suitable for all types of LV-ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Stripping of insulation is avoided.

Pass 6 kV test under water (NFC 33020, CENELEC prEN 50483-4 class 1)
Potential free tightening bolts allow safe installations on life lines
Suitable for aluminium and copper conductors Long neck 13 mm shear head nut ensuring reliable installations
Exceeds requirements according to NFC 33020 and EATS 43-14
Components not losable, end cap attached to body
Insulation material made of weather and UV resistant glass fibre reinforced polymer
Contact plates made of tinned copper or aluminium, bolt made of dachromatized steel
Designed that conductor breaking loads exceed cable system requirements: 80% for self-supporting system 95% for insulated neutral conductor

Aerial Powerfitting  Clamp Series

ITEM CODE	MAIN LINE(MM2)	TAP LINE (MM2)	BOLT
ZCEP	16-95	1.5-10	1
ZC2-95	16-95	4-50	1
ZC3-95	25-95	25-95	1
JBC-1	35-70	6-35	1
JBC-2	35-150	35-150	1
JBC50-240	50-240	50-240	2
IPC3.1	16-95	10-25	1
IPC3.2	70-95	70-95	1
IPC3.3	120-185	16-25	1

IPC3.4	70-185	70-185	2
TTD121F	25-95	2.5-25	1
TTD151F	25-95	6-35	1
TTD201F	25-95	25-95	1
TTD281F	50-185	6-35	1
TTD282F	25-95	6-35	1
TTD451F	95-240	95-240	2
DCNL-1	10-95	1.5-10	1
DCNL-2	16-95	4-35	1
DCNL-3	25-120	25-95	1

CT-1	6-95	1.5-6	1
CT-2	6-150	2.5-25	1
CT-3	6-150	4-35	1
CT-4	25-150	25-95	1
CT-5	25-150	16-95	1
PI-71	35-95	4-54	1
CD-71	35-95	4-54	1
PC-150	35-150	4-50	1
P-71	35-95	4-50	1
PI-72	35-95	2X4-50	1

P-150	70-150	2X4-50	1
P-151	16-150	6-95	1

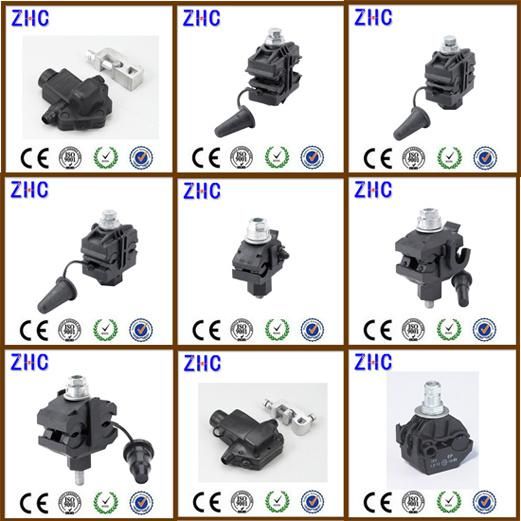

Similiar Products of Aerial Powerfitting Clamp

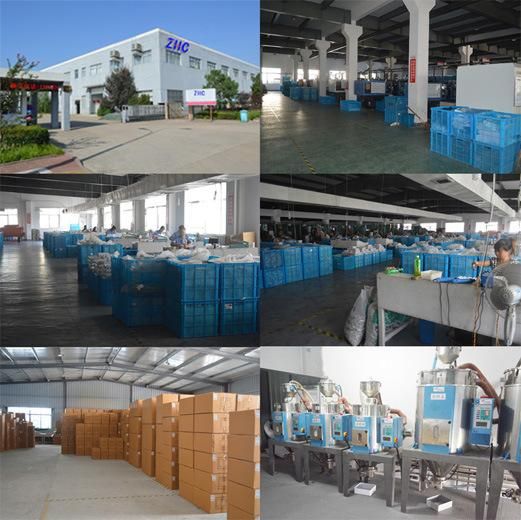

Factory of Aerial Powerfitting Clamp

Certificate of Aerial Powerfitting Clamp
