• Model NO.：13MM
• Color：Multi-Colored
• Chain Grade：G80
• Size：4mm-26mm
• Packing：Iron Drum Plastic Drum Wooden Case
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：7315820000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. 13MM Color Multi-Colored Chain Grade G80 Size 4mm-26mm Packing Iron Drum Plastic Drum Wooden Case Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 7315820000 Production Capacity 1000000m/Year

Product Description

G80 Alloy Chain 13mm with Polished, BlackedProduct specifications as belows:

We specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

G80 specifications data as belows:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320

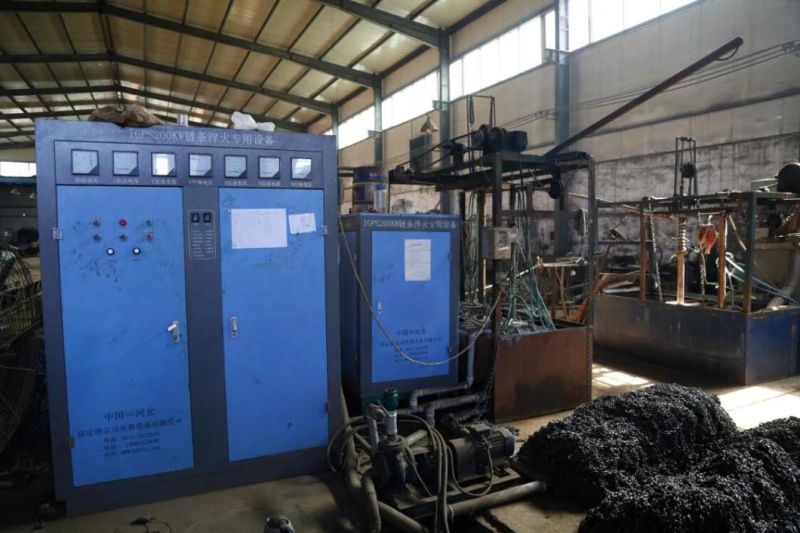

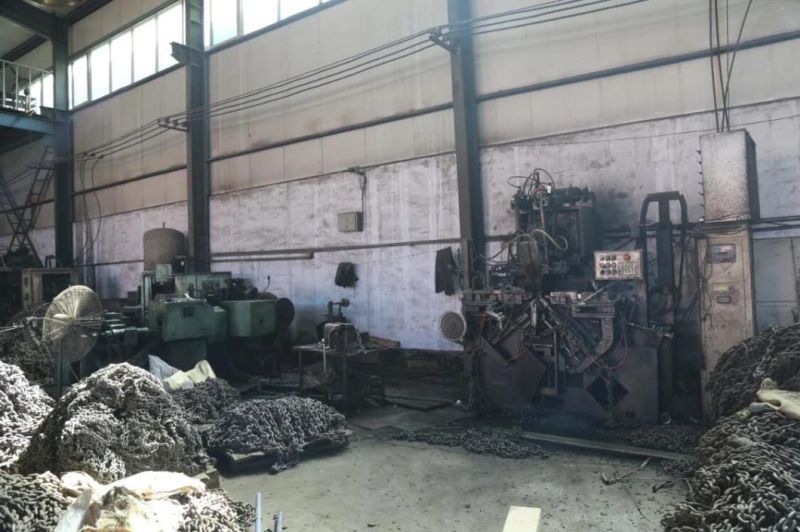

Factory overviews:




For G80 lifting chain G43 iron chain any questions feel free to contact us
