• Model NO.：shackle
• Breaking Load：Six Time Wll
• Delivery Time：30days
• Transport Package：Wooden Pallet +PP Bag or Wooden Case
• Specification：1,4-4inch, 0.5T-200T
• Trademark：SCE
• Origin：Qingdao China
• HS Code：7326909000
• Production Capacity：1000000000,Year

Basic Info.

Model NO. shackle Breaking Load Six Time Wll Delivery Time 30days Transport Package Wooden Pallet +PP Bag or Wooden Case Specification 1/4-4inch, 0.5T-200T Trademark SCE Origin Qingdao China HS Code 7326909000 Production Capacity 1000000000/Year

Product Description

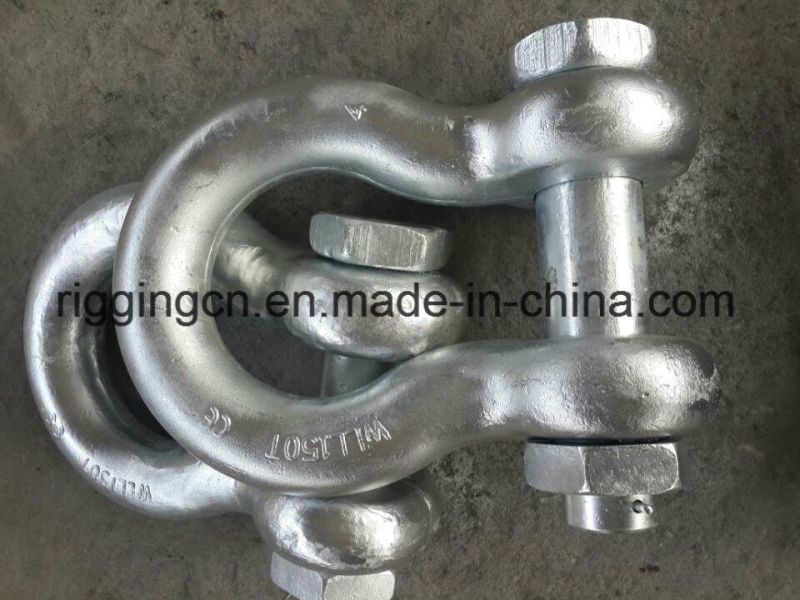

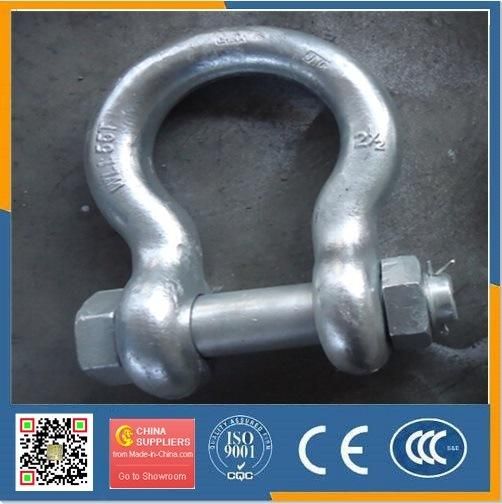

All our shackles are made in China, and are supplied highly polished.
Material is carbon steel. G80 material is alloy steel .





The shake proof shackle has both heads threaded. The pin will not fall out, but may still be unscrewed from the partially threaded second head.
The shake proof shackle pin incorporates an innovative polyurathane ring which enhances the fit of the shackle pin. Once in position the shackle pin will not vibrate loose.
The shake proof shackle incorporates the Smart-Lock pin. This pin benefits from a unique locking mechanism. When the ring is threaded into the shackle body the ring acts like a viscous liquid and binds itself to the internal threads in the shackle head.

SIZE	A	B	D	F	G	P	WLL
1/4"	0.47	0.31	0.25	0.62	0.91	1.56	200
5/16"	0.53	0.38	0.31	0.75	1.07	1.82	340
3/8"	0.66	0.44	0.38	0.92	1.28	2.17	450
7/16"	0.75	0.5	0.44	1.06	1.48	2.51	700
1/2"	0.81	0.64	0.5	1.18	1.66	2.8	900
5/8"	1.06	0.77	0.63	1.5	2.04	3.56	1500
3/4"	1.25	0.89	0.75	1.81	2.4	4.15	2000
7/8"	1.44	1.02	0.88	2.1	2.86	4.82	3000
1"	1.69	1.15	1	2.38	3.24	5.39	4000
1-1/8"	1.81	1.25	1.13	2.68	3.61	5.9	4300
1-1/4"	2.03	1.4	1.25	3	3.97	6.69	5500
1-3/8"	2.25	1.53	1.38	3.31	4.43	7.21	6000
1-1/2"	2.38	1.66	1.5	3.62	4.87	7.73	7500
1-3/4"	2.88	2.04	1.75	4.19	5.82	9.33	11350
2"	3.25	2.3	2.1	5	6.82	10.41	15500
2-1/2"	4.12	2.8	2.63	5.68	8.07	13.58	25000
3"	5	3.25	3	6.5	8.56	15.13	38500
