Flange 4-10 " Full Cone Spray Nozzle, Full Jet Nozzle
CY Spraying & Purification Technology Limited- Material：Ss,Brass
- Thread Size：4-10"
- Spray Pattern：Full Cone
- Feature：Removable Caps and Vanes
- Uniform Spray Distribution：Uniform Spray Distribution From 0.29 to 92 L,Min
- Operating Pressure：up to 20 Bar
Base Info
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description

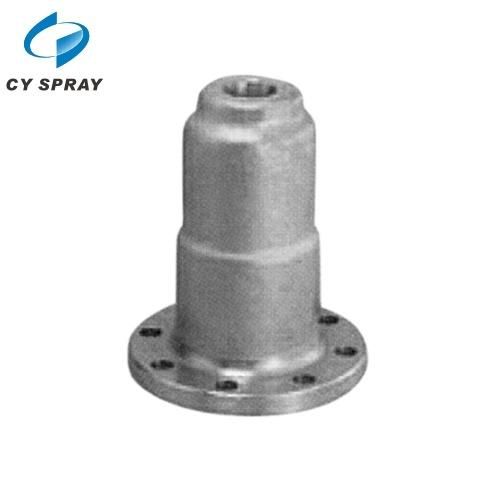

Flange 4-10 " full cone spray nozzle,full jet nozzle
Description
1.Solid cone-shaped spray pattern with round impact area
2.Removable caps and vanes
3.with standard,wide and narrow spray angles
4.Spray angles: Standard 43 to 94 degrees,Narrow 15 to 30 degrees,wide 112 to 120 degrees.
5.Uniform spray distribution from 0.29 to 92 L/Min
6.Operating pressure up to 20 bar (300psi)
7.Wall-mount versions for installation on room exterior, vessel or pipeline
8.Right-angle mount versions for 90 degrees angle mounting in areas with limited space.
