• Model NO.：ZDL-U180
• Folded：Unfolded
• Customized：Customized
• Color：Pure
• Size：Common
• Product Name：Magnetic Lock Bracket
• Bracket Type：Zl ,Z ,L ,U-Type
• Suitable for：80kgs(300lbs) , 280kgs(600lbs) , 350kgs(800lbs) ,
• U-Type Bracket：14×3.3×2.6cm
• L-Type Bracket：16.8*3.9*2.4cm
• Item：Door Hardware
• Warranty：1 Year
• Transport Package：Standard Packing
• Specification：CE, RoHS
• Trademark：ZUDSEC
• Origin：China
• HS Code：8301600000
• Production Capacity：5000000,Year

Basic Info.

Model NO. ZDL-U180 Folded Unfolded Customized Customized Color Pure Size Common Product Name Magnetic Lock Bracket Bracket Type Zl /Z /L /U-Type Suitable for 80kgs(300lbs) / 280kgs(600lbs) / 350kgs(800lbs) / U-Type Bracket 14×3.3×2.6cm L-Type Bracket 16.8*3.9*2.4cm Item Door Hardware Warranty 1 Year Transport Package Standard Packing Specification CE, RoHS Trademark ZUDSEC Origin China HS Code 8301600000 Production Capacity 5000000/Year

Product Description

Magnetic Lock Bracket: ZL /Z /L /U-type Bracket for Magnetic Lock, suitable for 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs).

Features:
- Suitable for 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs).

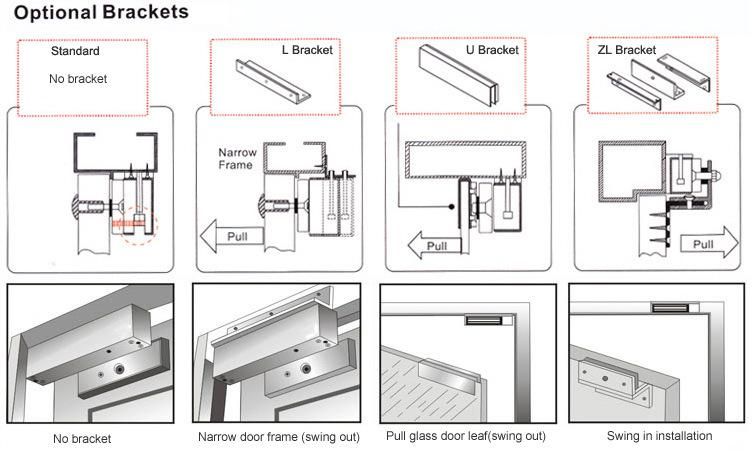

- Z-Type & ZL-Type Braket suitable for Inward  Wooden Door & Metal Door.
- L-Type Bracket  suitable for Frameless Narrow Door
- U-Type Bracket suitable for Frameless Glass Door




Specifications:

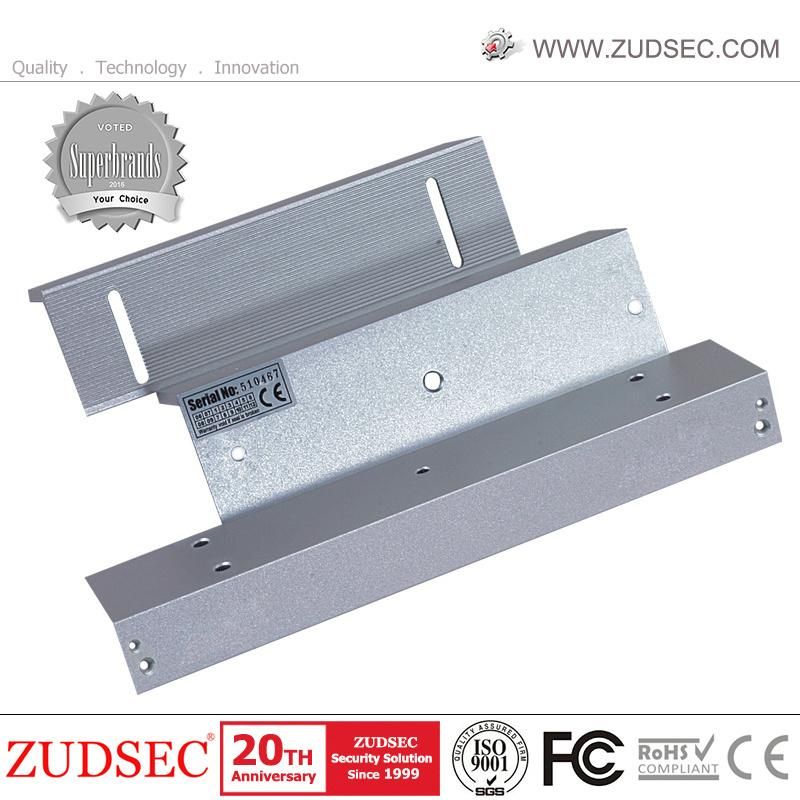

1> ZL-Type Bracket:
* ZDL-ZL180:
Dimension: 169×39×24mm(L Type); 140×36×36mm(Z Type); Packing Size: 20.5*4.5*5cm; Weight:0.30Kg/Pc
* ZDL-ZL280/350:
Dimension: 240×57×31mm(L Type); 180×52×52mm(Z Type); ; Packing Size:  26*6.5*6.3cm; Weight: 0.7Kg/Pc
* ZDL-ZL500:
Dimension: 265×72×45mm(L Type); 185×70×60mm(Z Type); Packing Size: 28*7.5*8cm; Weight: 1.25Kg/Pc

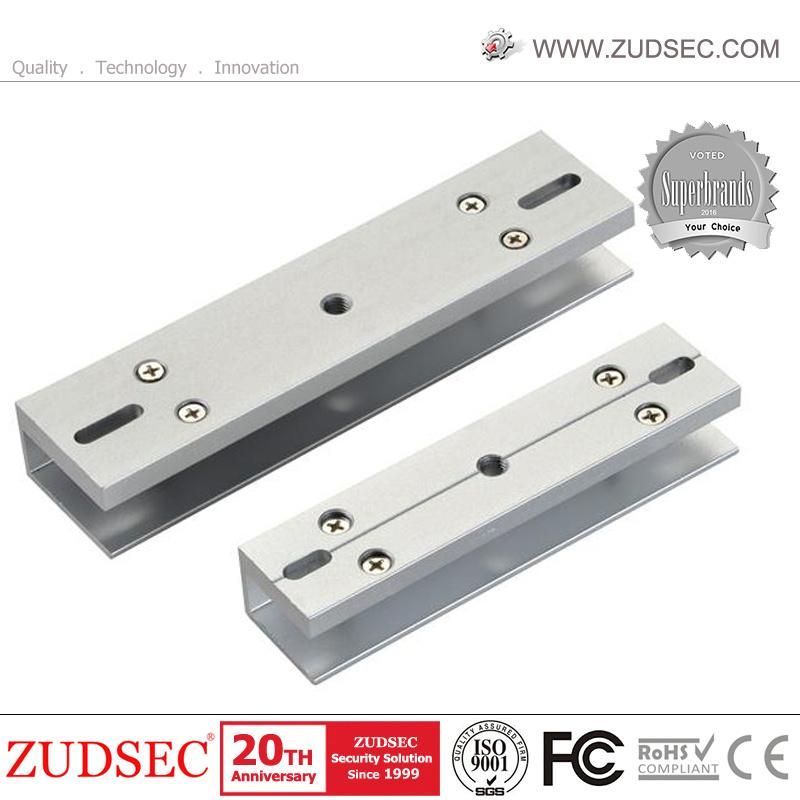

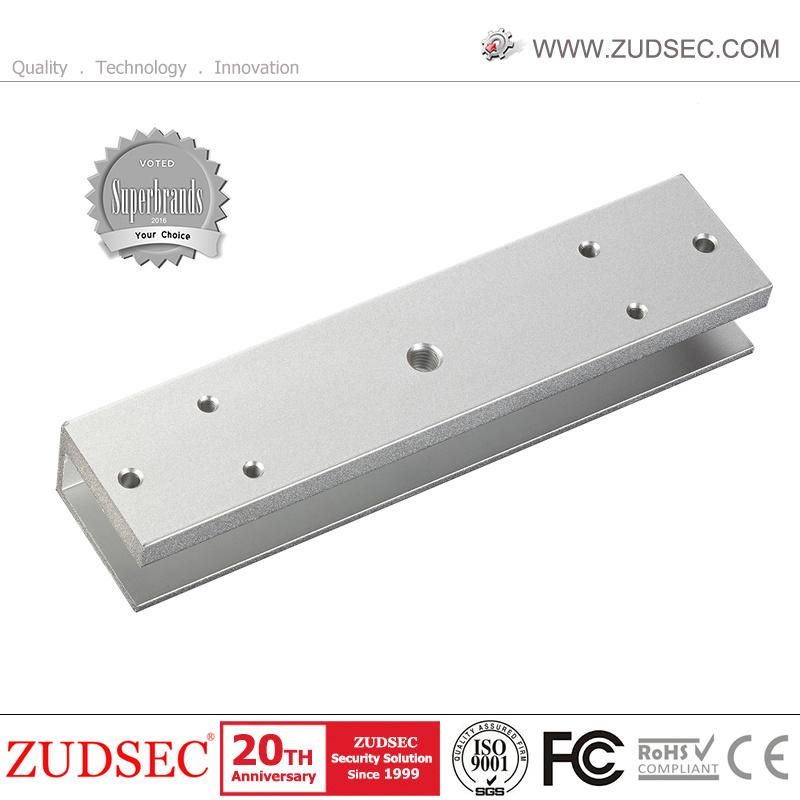

2>. U-Type Bracket:
ZDL-U180:  Dimension: 14×3.3×2.6cm; Packing Size: 20.5*5*4.2cm; Weight:0.21Kg/Pc
ZDL-U280/350:  Dimension: 18×4.3×2.8cm; Packing Size:  20.5*5*4.2cm; Weight: 0.35Kg/Pc

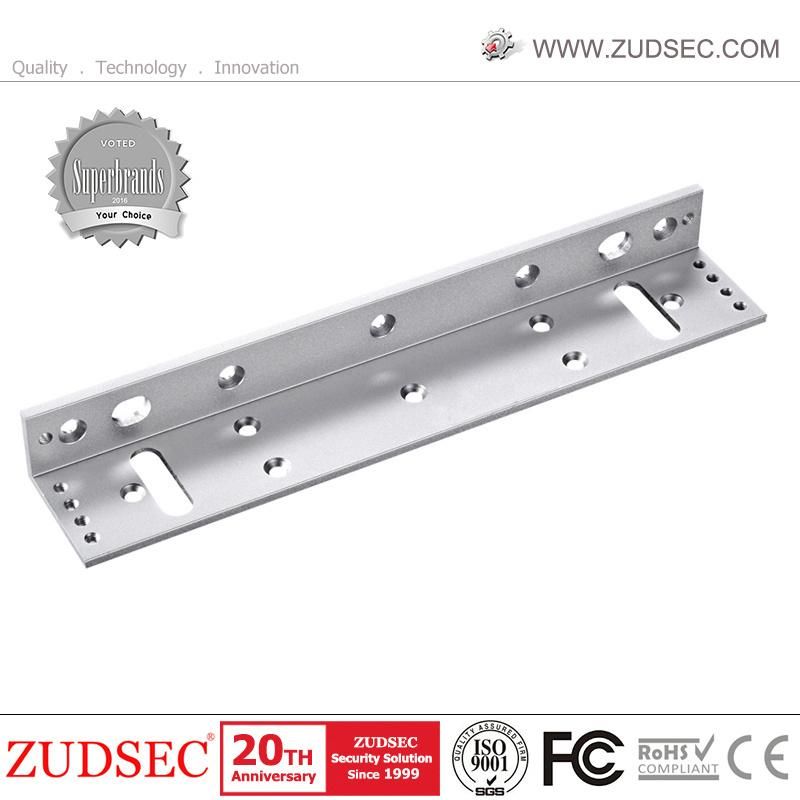

3>. L-Type Bracket:
ZDL-L180:  Dimension: 16.8*3.9*2.4cm; Packing Size: 20.5*5*4.2cm; Weight:0.14Kg/Pc
ZDL-L280:  Dimension: 25*4.7*3cm; Packing Size:  27*6.5*6.3cm; Weight: 0.28Kg/Pc
ZDL-L350:  Dimension: 24*5.6*3.1cm; Packing Size:  27*6.5*6.3cm; Weight: 0.3Kg/Pc
ZDL-L500:  Dimension: 26.5*7.2*4.5cm; Packing Size:  28.5*8*7.5cm; Weight: 0.56Kg/Pc
