• Model NO.：FST-DIN-01
• Color：According to Your Requirements
• Product Name：Chinese Manufacturer of DIN 763 Link Chain
• Process：Welded+Heat Treatment+Surface Treatment
• Certificate：ISO9001
• Transport Package：Packed in Wooden Case,Iron Drum, Then in Pallets
• Specification：2mm-32mm
• Trademark：First Rigging
• Origin：Shandong, China
• HS Code：73158200
• Production Capacity：150ton,Month

Basic Info.

Model NO. FST-DIN-01 Color According to Your Requirements Product Name Chinese Manufacturer of DIN 763 Link Chain Process Welded+Heat Treatment+Surface Treatment Certificate ISO9001 Transport Package Packed in Wooden Case/Iron Drum, Then in Pallets Specification 2mm-32mm Trademark First Rigging Origin Shandong, China HS Code 73158200 Production Capacity 150ton/Month

Product Description

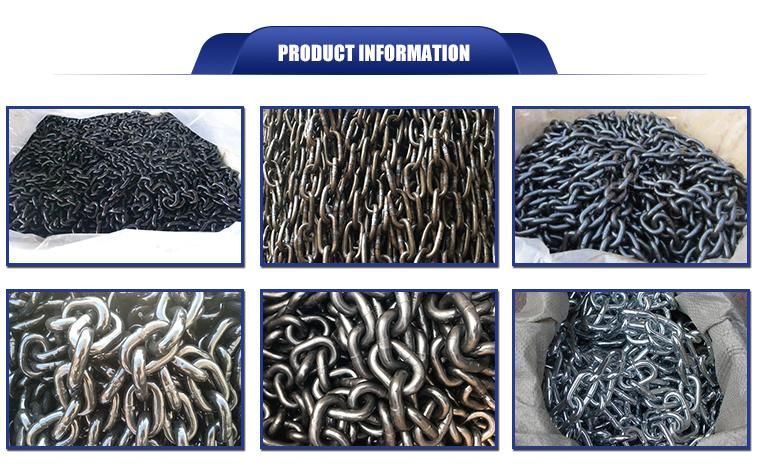

Chinese manufacturer of DIN 763 link chain:
Size:2mm-32mm

Material: Alloy steel, high tensile, heat treated.

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

Technical Specification(DIN 763 link chain):


Size	Size	Inside length	Inside length	Outside width	Outside width	Working load	Test load	Breaking load	Weight per m
MM	±MM	MM	±MM	MM	±MM	KG	N	N	KG
2	0.5	22	1	8	0.4	25	800	1250	0.06
2.5	0.5	24	1.1	10	0.5	40	800	2000	0.1
3	0.5	26	1.2	12	0.6	55	1050	3200	0.15
3.5	0.5	28	1.3	14	0.7	80	1540	3850	0.2
4	0.5	32	1.5	16	0.8	100	2000	6000	0.27
4.5	0.5	34	1.7	18	0.9	128	2500	6300	0.35
5	0.5	35	1.8	20	1	160	3150	10000	0.43
5.5	0.5	38.5	1.8	22	1.1	195	3800	9500	0.52
6	0.5	42	2	24	1.2	224	4500	14000	0.63
7	0.5	49	2.5	28	1.4	300	6000	18000	0.86
8	0.5	52	2.5	32	1.6	400	8000	25000	1.1
8.5	0.5	56	2.8	34	1.7	460	9000	22500	1.25
9	0.5	59	3	36	1.8	530	10500	32000	1.41
10	1	65	3.2	40	2	630	12500	40000	1.75
11	1	72	3.4	44	2	790	15800	47500	2.11
12	1	78	3.6	48	2.3	940	18800	56500	2.55
13	1	82	4	52	2.5	1000	21200	63000	2.95
16	1	100	5	64	3.2	1600	33000	100000	4.45
18	1	113	5.2	70	3.2	2120	42300	127000	5.65
19	1	119	5.6	72	3.4	2370	47300	142000	6.25
20	1	120	6	75	3.8	2500	50000	160000	7
22	1	127	6	82	4	3170	63300	190000	8.55
25	1	140	6.6	85	4.2	4090	81700	245000	10.9
28	1	152	7	96	4.7	6000	120000	300000	13.9
32	1	171	7.8	108	5.2	8000	160000	400000	18.2



Packaging & Delivery:

Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements

Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
