• Model NO.：PA Standard Series with press weld plate
• Trademark：OJ
• Origin：Yancheng
• Production Capacity：500000 PCS , Year

Basic Info.

Model NO. PA Standard Series with press weld plate Trademark OJ Origin Yancheng Production Capacity 500000 PCS / Year

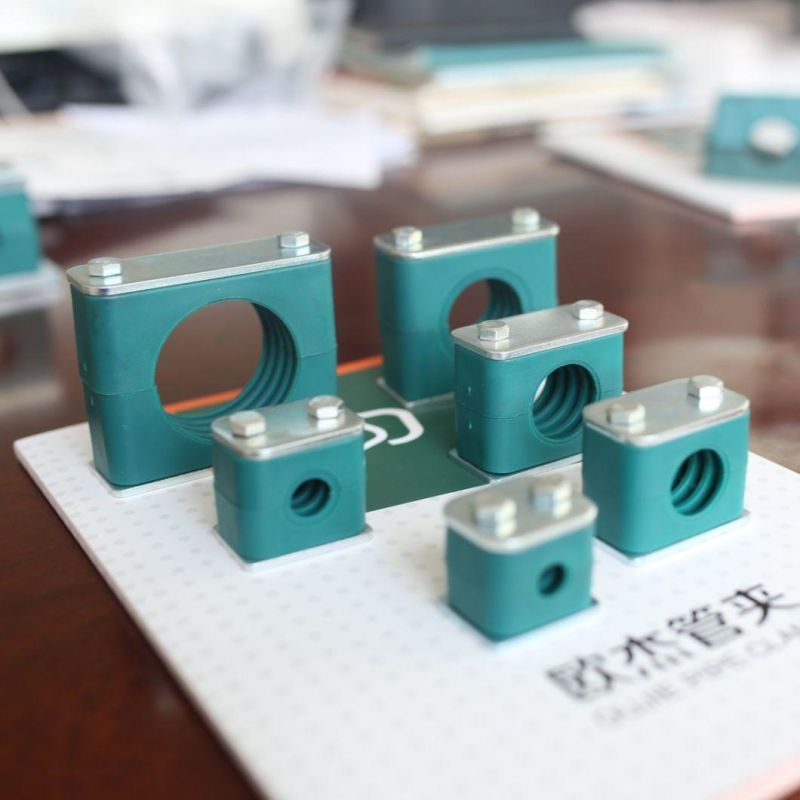

Product Description

Available in eight standard sizes for normal mechanical requirements. (Group1 to Group8, Pipe O. D. 6mm~102mm).

Group 1 (06~12mm)

Group 2(12.7~18mm)

Group 3(19~25mm)

Group 4 (26.9~30mm)

Group 5 (32~42mm)

Group 6 (44.5~57mm)

Group 7 (57~76.1mm)

Group 8 (88.9~102mm)

This product is suitable for oil, water and gas pipe's fastness in the hydraulic system in different areas such as the metallurgy, the construction machinery, the petroleum, the chemical industry, the ships, eletrical power and so on.

Material
Bolts: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304 / SUS316)
Cover Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)
Weld Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)
Clamp Body: Polypropylene (PP)/Polyamide(PA)/Aluminium(AL)
Working Temperature
PP -30º C up to +90º C Colour dard green
PA -40º C up to +120º C Colour black
AL up to +300º C

Supplying Our Specialized Production & Top-Grade Service is the business principle of Yancheng Oujie Machinery Company Ltd.
Our Company was establish in March, 2000, and it's the biggest Manufacturer of the pipe clamps in China. And it's the only one plant which is specialized in Pipe Clamps Processing.

We welcome all friends throughout the world, if you have any interests, please don't hesitate to inform us as soon as possible, our specialty will satisfy you and help us to establish a long-term cooperation.
