• Model NO.：Heavy Series
• Working Temperature：30 up to +90
• Transport Package：Carton
• Specification：6~500mm
• Trademark：OJ
• Origin：Yancheng
• Production Capacity：100000 pcs,week

Basic Info.

Model NO. Heavy Series Working Temperature 30 up to +90 Transport Package Carton Specification 6~500mm Trademark OJ Origin Yancheng Production Capacity 100000 pcs/week

Product Description

According to DIN 3015 Part 2.
Available in eleven standard sizes specially designed for high mechanical requirements. (Group1 to Group11, Pipe O. D. 6mm~508mm).

Group 1 (06-16mm)

Group 2 (18-30mm)

Group 3 (30-42mm)

Group 4 (42-70mm)

Group 5 (70-90mm)

Group 6 (90-133mm)

Group 7 (133-168mm)

Group 8 (168-219mm)

Group 9 (219-324mm)

Group 10 (356-406mm)

Group 11 (508mm)

This product is suitable for oil, water and gas pipe's fastness in the hydraulic system in different areas such as the metallurgy, the construction machinery, the petroleum, the chemical industry, the ships, eletrical power and so on.
Material
Bolts: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304 / SUS316)
Cover Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)
Weld Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)

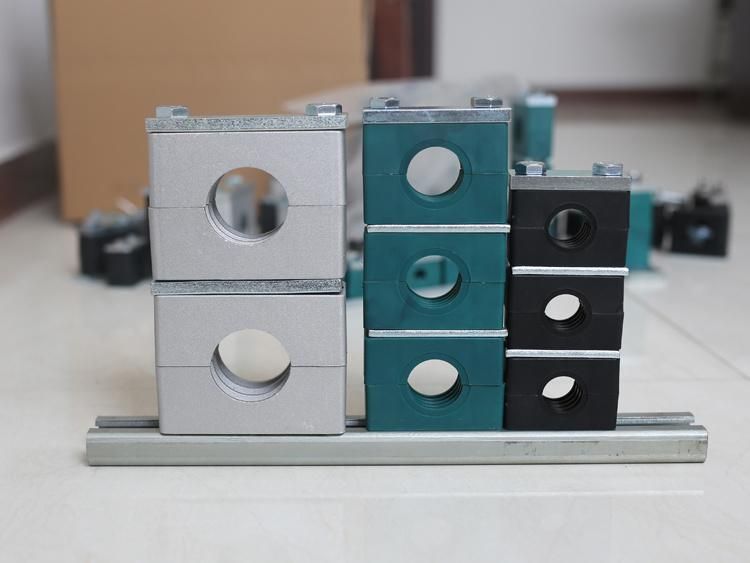

Polypropylene (PP)/Polyamide(PA)/Aluminium(AL)
Working Temperature

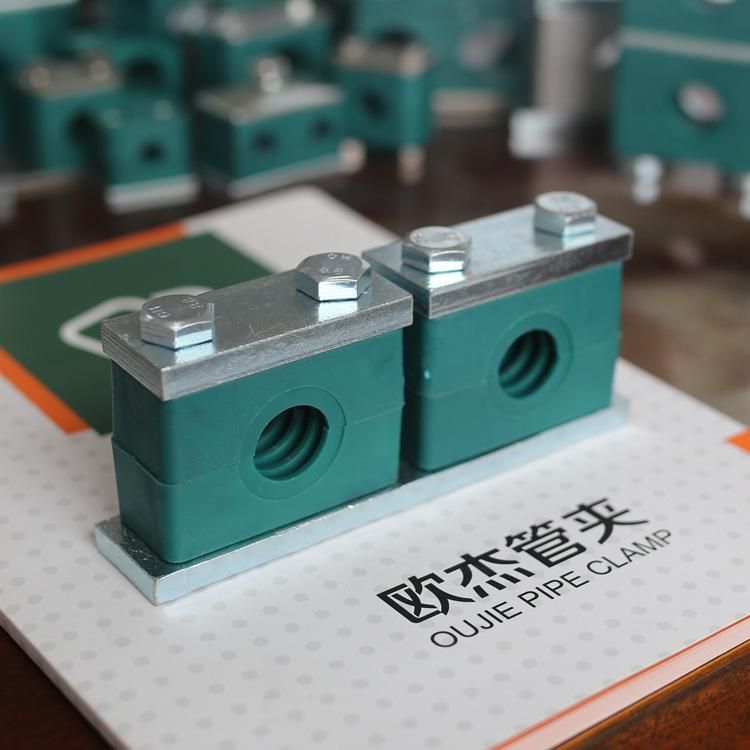

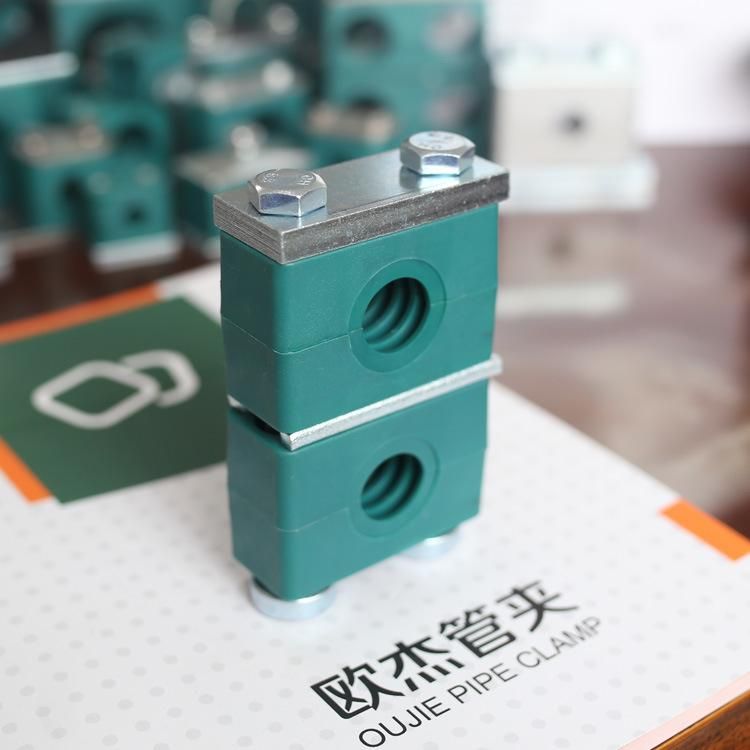

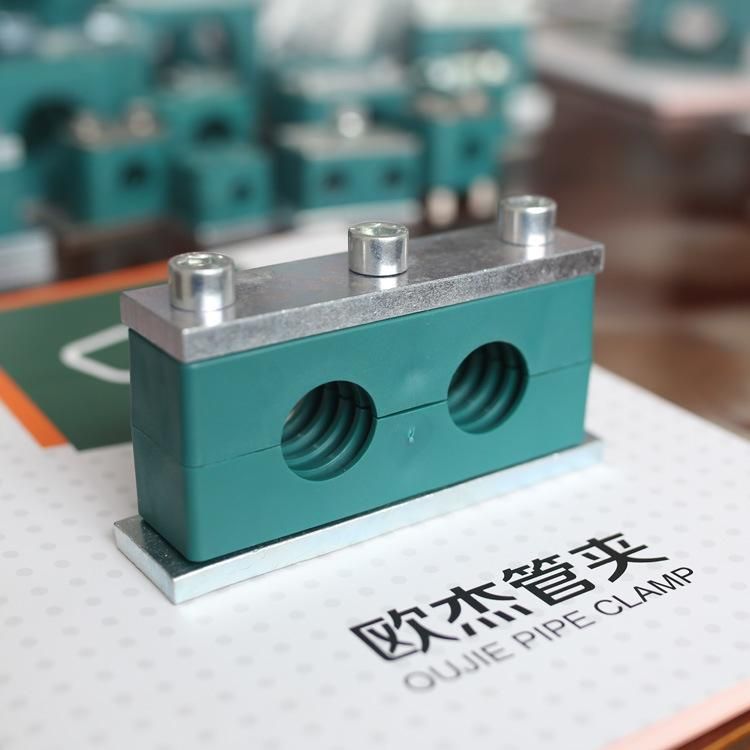

PP -30 up to +90 Colour dard green
PA -40 up to +120 Colour black

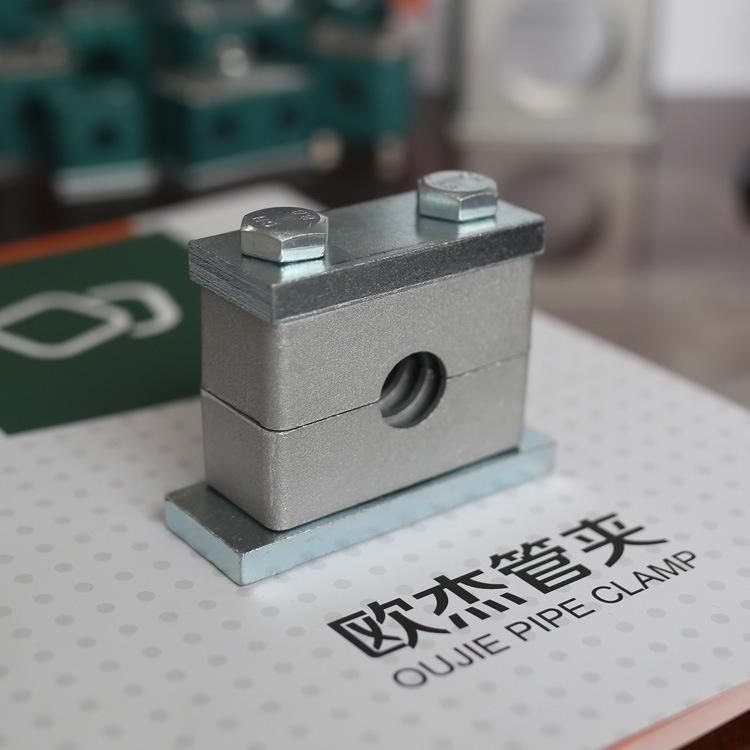

AL up to +300

Supplying Our Specialized Production & Top-Grade Service is the business principle of Yancheng Oujie Machinery Company Ltd.
Our Company was establish in March, 2000, and it's the biggest Manufacturer of the pipe clamps in China. And it's the only one plant which is specialized in Pipe Clamps Processing.
We welcome all friends throughout the world, if you have any interests, please don't hesitate to inform us as soon as possible, our specialty will satisfy you and help us to establish a long-term cooperation.
