• Model NO.：cgood
• Product Name：Factory Manufactured 82b Torsion Spring
• Type：Spring, Door Spring, Garage Door Parts Spring
• Material Grade：82b, Swrh, 82mna
• Spring Surface Color：Red, Black, Nature, Blue, Yellow
• Advantages：High Quality Material, Not Easy to Rust and Break
• Features of Garage Door Spring：Strict Control of Materials Quality
• Features of Door Spring：Aluminum Alloy Joint
• Features of Torsion Spring：Anti-Rust Oil
• Spring Surface：Electrophoresis Ep Process
• Torsion Spring Surafce：Galvanized
• Spring Length：144 Inches or as Customers′ Request
• Application：Industrial, Residential, Garage Door
• Spring Application：Commercial Rolling Shutter Door, Store Door
• Spring Usage：Large-Scale Commercial Storage Supermarket
• Torsion Spring Usage：Factory Production Workshop Door
• Transport Package：Sea-Worth Package
• Specification：218*1-3,4*28
• Trademark：cgood
• Origin：China
• HS Code：8202201000
• Production Capacity：1000000

Basic Info.

Model NO. cgood Product Name Factory Manufactured 82b Torsion Spring Type Spring, Door Spring, Garage Door Parts Spring Material Grade 82b, Swrh, 82mna Spring Surface Color Red, Black, Nature, Blue, Yellow Advantages High Quality Material, Not Easy to Rust and Break Features of Garage Door Spring Strict Control of Materials Quality Features of Door Spring Aluminum Alloy Joint Features of Torsion Spring Anti-Rust Oil Spring Surface Electrophoresis Ep Process Torsion Spring Surafce Galvanized Spring Length 144 Inches or as Customers′ Request Application Industrial, Residential, Garage Door Spring Application Commercial Rolling Shutter Door, Store Door Spring Usage Large-Scale Commercial Storage Supermarket Torsion Spring Usage Factory Production Workshop Door Transport Package Sea-Worth Package Specification 218*1-3/4*28 Trademark cgood Origin China HS Code 8202201000 Production Capacity 1000000

Product Description

Torsion Spring Torsion Spring Garage Door Accessory Torsion Spring

__________________________________________



Spring Steel refers to a group of a low alloy, medium carbon steel or high carbon steel with excellent yield strength. Our CgoodSteel is the leading manufacturing and supplier of spring steel products. We use high grade of raw materials to ensure premium quality and high tensile.

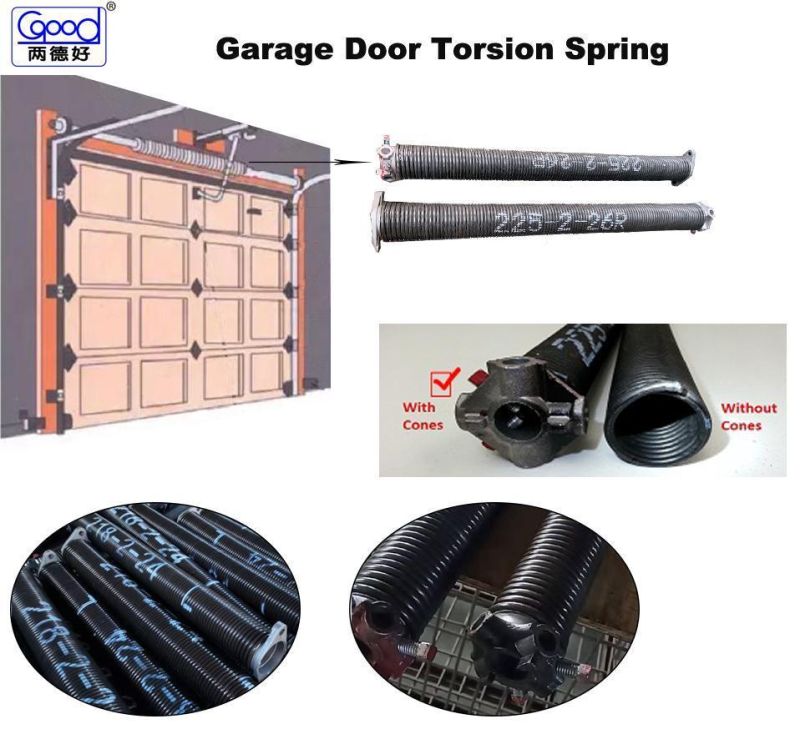

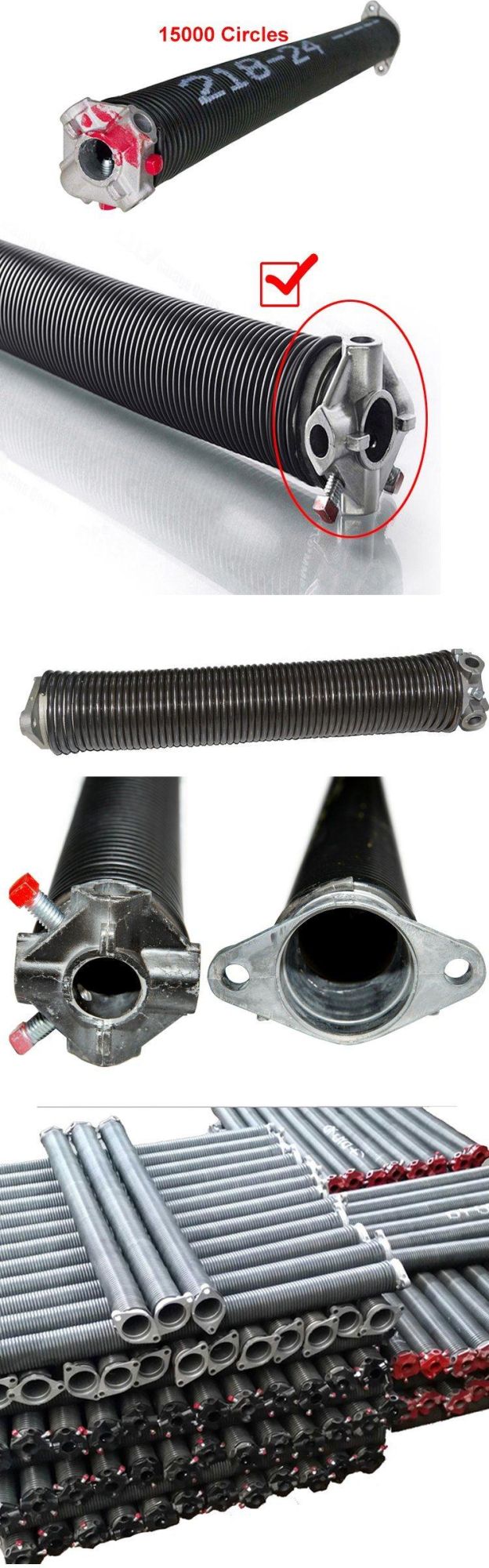

A torsion spring has a stationary cone which secures the spring to the spring anchor bracket. Since this bracket is secured to the wall, the stationary cone, as its name suggests, does not move. The other end of the torsion spring has a winding cone. This winding cone is used when installing, adjusting, and uninstalling the springs. When installing the torsion spring, the coils of the spring are wound up to create a lot of torque.



Torsion springs are made of oil tempered spring wire. The spring wire is coated to improve corrosion resistance and fatigue resistance. Standard 10000 cycle and 25000 + high cycle springs are available in both left or right wound, precut with fittings installed. We have different models for you to choose from. In addition, we can also customize it according to your requirements



Garage door torsion springs from CgoodSteel

--Professional garage door, rolling shutter door hardware manufacturer in China for 18 years

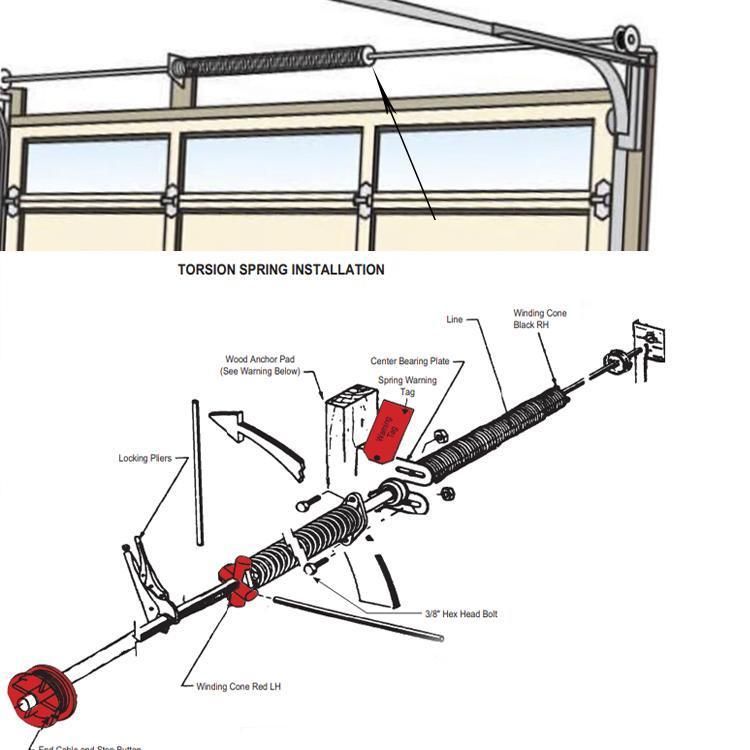

Garage door torsion springs are secured to a metal shaft above the garage door. Depending on the system, the shaft may pass through the middle of the springs or spring, or the shaft may sometimes house the spring. If the shaft passes through the middle of the torsion spring, the spring may be mounted in the middle of the shaft or on the end of the shaft by the outside edge of the garage door.

Torsion springs balance the garage door by applying torque to the shaft with drums at each end. Attached to each drum is a cable that extends to and is secured to the bottom fixture at the bottom of the door. The torsion spring unwinds and winds as the door is opened and closed to comprise a balanced system.

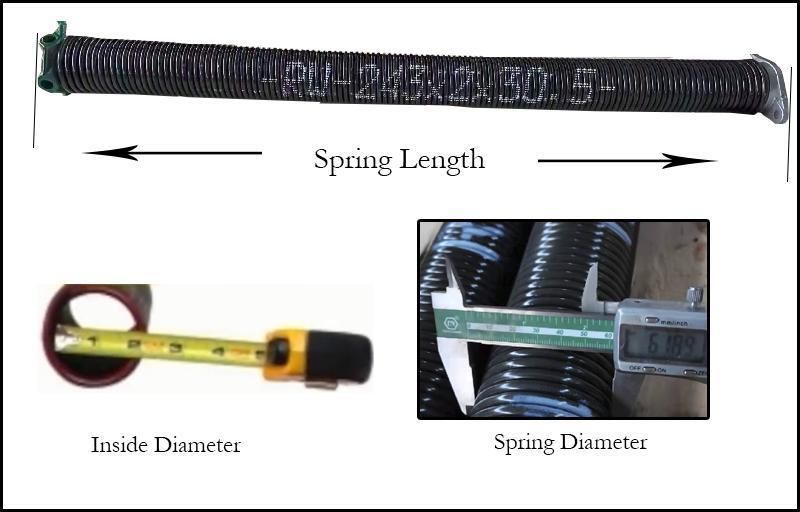

Torsion springs have three characteristics that determine the lift and cycle life. These properties are the wire size, inside diameter, and length. The lift, which is determined by the torque of the spring, tells how much door weight the spring can lift. The cycle life tells how many times the garage door should open and close before the spring breaks.



Specifications of Garage Door Torsion Spring:

1.Material Grade:  JIS 82b, Stainless Steel

2.Surface Treatment: Galvanized, Powder coating, electrophoresis, Blackening , Chemical oxidation, Phosphating, Dacromet, Color zinc plating, Nickel plating, Chrome plated, Cataphoresis, Apply oil , black painted or at customers' request

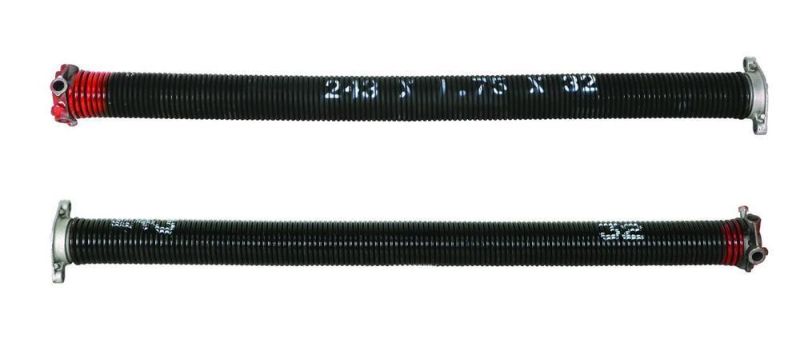

3.Color: Red for right wind, Black for left wind
4.Spring Diameter: 207mm, 218mm, 225mm, 234mm, 243mm, 250mm

5.Inside Diameter: 1-3/4'', 2''

6.Spring Length: 22'', 24'', 25'', 26.5'', 27.5'', 28'', 29'', 30'', 32'', 33'', 35'', 36'', 39'', or as customer's requirement

7. MOQ: 1000pcs

8. Delivery Details : 15-30 days after receive the advance payment
9. Shipping terms: FOB,CIF, CFR,DDU
9: Spring Types: Black spring,galvanized spring,power coated spring, extension spring for garage door,extension spring for E900, rolling shutter springs



Features of garage door spring from CGOODSTEEL:

1. Strict control of materials quality
Not easy to rust, not easy to corrode, long service life

2. Aluminum alloy joint
Thickened aluminmum alloy joint, not easy to break

3. Anti-Rust Oil
The surface of the spring is separately coated with anti-rust oil to insulate oxidation and increase the anti-rust ability



4. Fixed Aperture
The hole diameter of the fixed end is enlarged which is suitable for 6-10mm thick screws and has a wider application range

5. EP Process
To protect the door springs well



Applications of Torsion Spring and Spring Steel Strips:

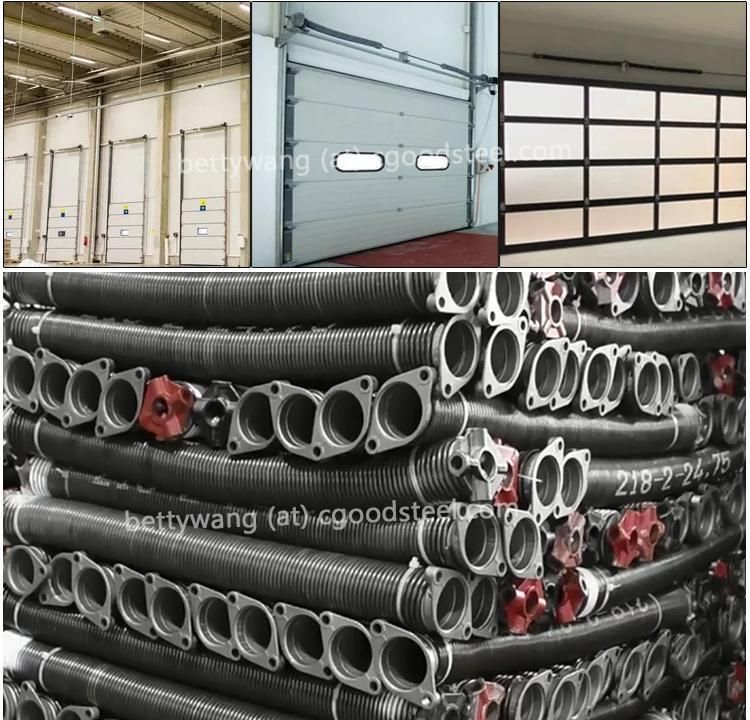

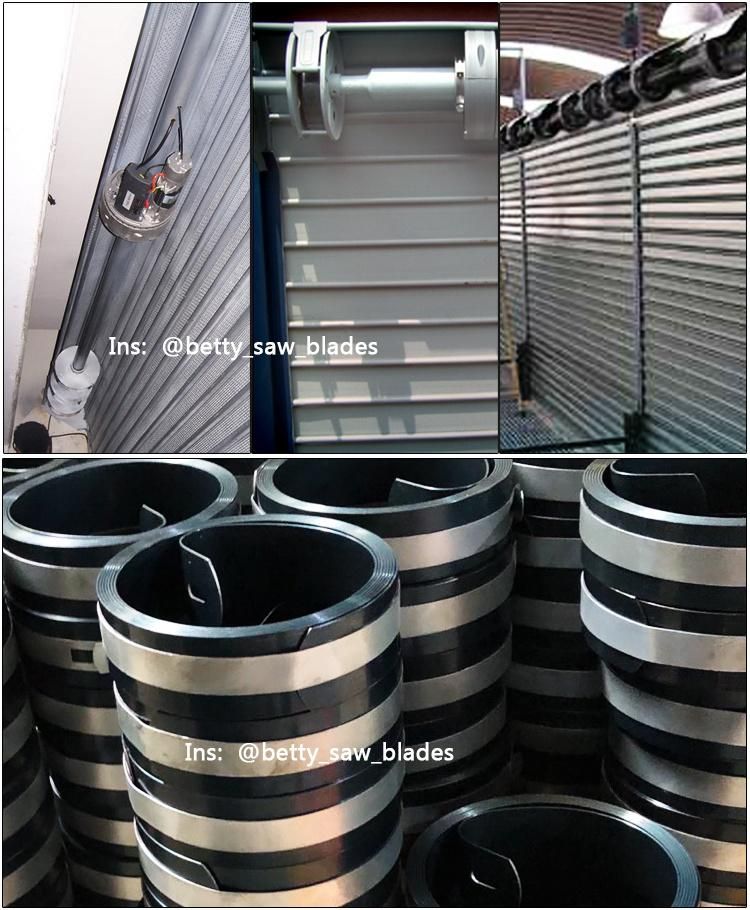

Torsion Spring have many applications, including doors for store, large-scale commercial storage supermarket, home garage door, factory production workshop, logistics, vans, garages, kitchens, schools, prisons and warehouses. In some parts of the world, roller shutters are subsidized by local governments due to the inherent security benefits.In areas that are frequently exposed to inclement weather, roller shutters are used as a method of insulation and can protect windows against hail damage.



Spring steel strip can be widely used in a variety of industries, including machinery manufacturing, household appliances, pressure vessels, structural piping, building decoration, chemical equipment, nuclear power, catering kitchenware, elevators, solar energy, metal products, containers, automotive, precision electronics, rail transit, sanitary ware.

Packaging & Shipping

Packaging of Spring Steel Strip

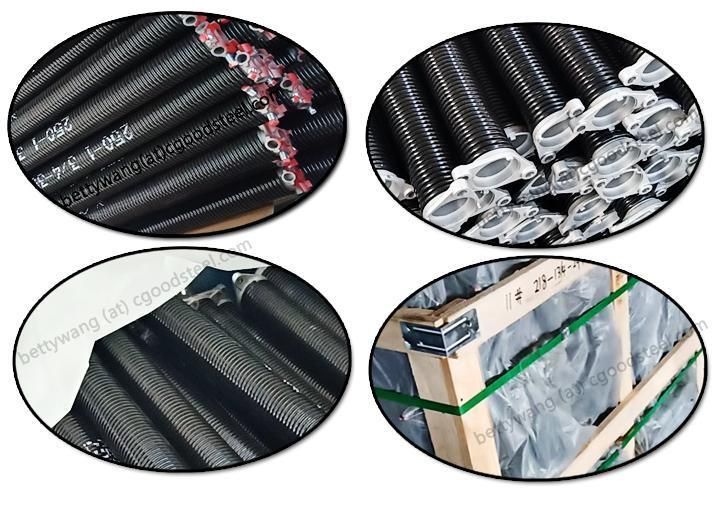

All the door torsion springs with Electrophoresis Process, oiled with Anti-rust oil, packing with PE bag, put into a box or carton, then packed with fumigation free wooden frame.

Delivery details : Delivery according to contract

Company Information
GuangZhouCgoodsteel.Co.,Ltd is a leading supplier of high carbon steel strip, alloy steel strip and stainless steel strips. Our factory occupying 25,000 square meters manufacturing area, we own more than 110 staff. The strips are manufactured to the highest industry standards in a broad range of chemistries,sizes,tempers,and finishes to meet customized request. The spring strips and springs for roller shutter,door and window accessories can also be supplied. Good quality, Best service,Reasonable price - The best choice to be your supplier !

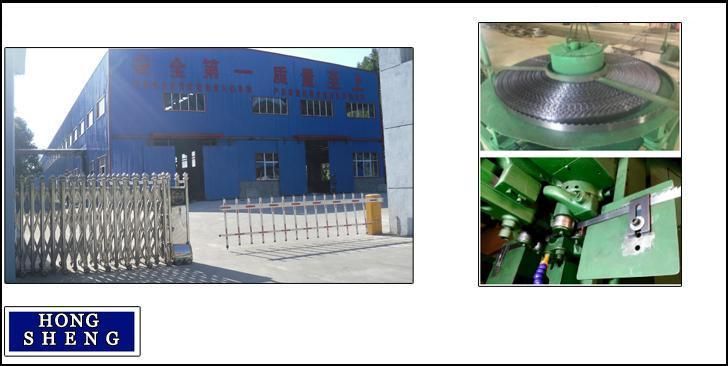

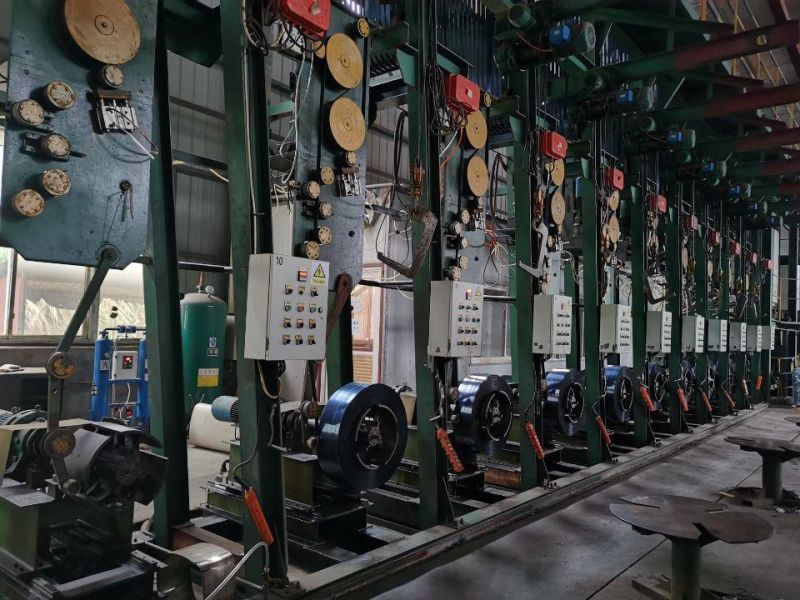

Spring Steel Strips Workshop:

Special equipment for roller shutter door springs, garage door torsion springs, roller shutter door spring box, other spring steel strips, steel sheets, and steel coils production...

Our Service

Why choose us?
1.Free samples by DHL/UPS/TNT after confirmation
2.Fast response
3.Lead-time:25-30 days
4.Customization:we can produce the special steel according to the user demands while the requirement meet the production MOQ
Quotation and Free samples are welcome!
Please contact me at any time if you are interested in our bandsaw blades.



Other product maybe interest:
1. Meat & bone band saw blades
2. Wood BandSaw Blade
3. Woodmizer sawmill bandsaw blade
4. Carbide tipped bandsaw blade
5. Wide wood bandsaw blade
6. Narrow wood bandsaw blade
7. Bread band saw blade
8. Foam band saw blade
9. Circular saw blade
10. Jig saw blade
11. Pruning saws
12. Plastic band saw blade
13. Bi-metal band saw blade (metal work band saw blade)
14. Hack saw blade
15. Plywood saw blade
16. Gangsaw blade
17. Stelliet tipped bandsaw blade
18. Polish steel material for band saw blades manufacture
19. Ad, paper cutting band saw blades
20. Without Tooth saw band knife for cutting

Customer Feedback

RFQ

1.How about your quality?
We promise to provide the high quality and competitive prices steel strips for you.



2.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock,or it is 15-20 days if the goods are not in stock,it is according to quantity

3.Do you provide samples? is it free or extra?
Yes,we could offer the sample for free charge but do not pay the cost of freight.

4.What is your terms of payment?
Payment<=1000USD, 100% in advance
Payment>=1000USD,30% T/T in advance,balance before shipment.





CgoodSteel is a professional manufacturer and supplier of Spring Steel Strip with high quality and reasonable price.



If you want to know more about Spring Steel Strip products or Spring Steel Strip price please feel free to contact us, 8618820055079 we will reply you within 24 hours.
